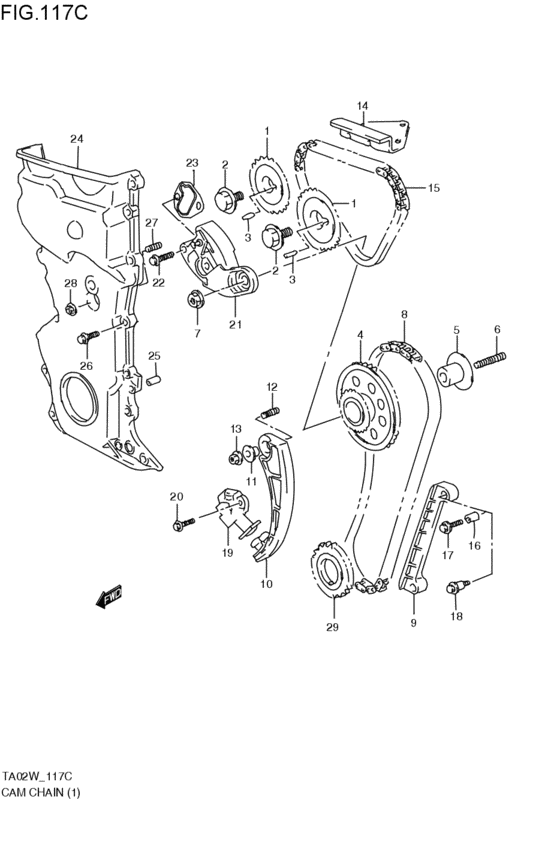

cam chain (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- GLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12741-77E00-000 SPROCKET,CAMSHAFT TIMINGJ20A; 1997-11-01~2000-03-01 |
12741-77E00-000 |
US $72.80 |
||
|
2
|
2
09103-12049-000 BOLT(12X25)Bolt (12x25) J20A; 1997-11-01~2000-03-01 |
09103-12049-000 |
from US $1.80 |
||
|
3
|
3
09206-05001-000 PIN(3.4X5X10)J20A; 1997-11-01~2000-03-01 |
09206-05001-000 |
from US $0.92 |
||
|
4
|
4
12745-77E00-000
スプロケット,アイドラ
J20A; 1997-11-01~2000-03-01 |
12745-77E00-000 |
— | ||
| replacement | |||||
|
4
|
4
12745-77E01-000 SPROCKET,IDLERJ20A; 1997-11-01~2000-03-01 |
12745-77E01-000 |
US $166.40 |
||
|
5
|
5
12747-77E00-000 SHAFT,IDLER SPROCKETJ20A; 1997-11-01~2000-03-01 |
12747-77E00-000 |
US $47.20 |
||
|
6
|
6
01411-10503-000
スタッドボルト
J20A; 1997-11-01~2000-03-01 |
01411-10503-000 |
— | ||
| replacement | |||||
|
6
|
6
01411-1050A-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
01411-1050A-000 |
from US $1.44 |
||
|
7
|
7
08316-10103-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10103-000 |
— | ||
| replacement | |||||
|
7
|
7
08316-1010B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1010B-000 |
from US $0.80 |
||
|
8
|
8
12761-77E10-000
チェーン,タイミング,ファースト
J20A; 1997-11-01~2000-03-01 |
12761-77E10-000 |
— | ||
| replacement | |||||
|
8
|
8
12761-77E11-000 CHAIN,TIMING 1STJ20A; 1997-11-01~2000-03-01 |
12761-77E11-000 |
from US $79.83 |
||
|
9
|
9
12771-77E00-000 GUIDE,TIMING CHAINJ20A; 1997-11-01~2000-03-01 |
12771-77E00-000 |
from US $16.85 |
||
|
10
|
10
12811-77E00-000 TENSIONER,TIMING CHAINJ20A; 1997-11-01~2000-03-01 |
12811-77E00-000 |
from US $60.08 |
||
|
11
|
11
12812-73G10-000 SPACER,TIMING CHAIN TENSIONERSpacer, timing chain tensioner J20A; 1997-11-01~2000-03-01 |
12812-73G10-000 |
from US $4.07 |
||
|
12
|
12
09108-08200-000
Stud bolt (8x20)
J20A; 1997-11-01~2000-03-01 |
09108-08200-000 |
— | ||
| replacement | |||||
|
12
|
12
09108-08255-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
09108-08255-000 |
from US $1.52 |
||
|
13
|
13
08316-10083-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
13
|
13
08316-1008B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
14
|
14
12772-77E00-000
ガイド,タイミングチェーン,NO.2
J20A; 1997-11-01~2000-03-01 |
12772-77E00-000 |
— | ||
| replacement | |||||
|
14
|
14
12772-77E01-000 GUIDE,TIMING CHAIN NO.2J20A; 1997-11-01~2000-03-01 |
12772-77E01-000 |
from US $18.41 |
||
|
15
|
15
12762-77E00-000 CHAIN,TIMING,2NDJ20A; 1997-11-01~2000-03-01 |
12762-77E00-000 |
from US $37.51 |
||
|
16
|
16
12777-85FA0-000
スペーサ,タイミングチェーンガイド
J20A; 1997-11-01~1998-03-01 |
12777-85FA0-000 |
— | ||
| replacement | |||||
|
16
|
16
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide J20A; 1997-11-01~1998-03-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
17
|
17
01550-06253-000
Bolt (6x25)
J20A; 1997-11-01~1998-03-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0625B-000 BOLTBolt, head cover J20A; 1997-11-01~1998-03-01 |
01550-0625B-000 |
from US $0.91 |
||
|
17
|
17
01550-0625A-000 BOLTBolt J20A; 1997-11-01~1998-03-01 |
01550-0625A-000 |
from US $0.96 |
||
|
18
|
18
12776-85FA0-000 BOLT,TIMING CHAIN GUIDEBolt, timing chain guide J20A; 1998-04-01~2000-03-01 |
12776-85FA0-000 |
from US $3.04 |
||
|
19
|
19
12831-77E00-000
アジャスタアッシ,テンショナ,NO.1
J20A; 1997-11-01~2000-03-01 |
12831-77E00-000 |
— | ||
| replacement | |||||
|
19
|
19
12831-77E02-000 ADJUSTER ASSY,TENSIONERJ20A; 1997-11-01~2000-03-01 |
12831-77E02-000 |
from US $84.24 |
||
|
20
|
20
01550-06203-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
20
|
20
01550-0620B-000 BOLTBolt, inspection cap J20A; 1997-11-01~2000-03-01 |
01550-0620B-000 |
from US $0.76 |
||
|
21
|
21
12832-77E00-000 ADJUSTER ASSY,TENSIONER NO.2J20A; 1997-11-01~2000-03-01 |
12832-77E00-000 |
from US $122.29 |
||
|
22
|
22
01550-06453-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-06453-000 |
— | ||
| replacement | |||||
|
22
|
22
01550-0645A-000 BoltJ20A; 1997-11-01~2000-03-01 |
01550-0645A-000 |
from US $0.96 |
||
|
23
|
23
12835-77E00-000 GASKET,TENSIONER ADJ,NO.2J20A; 1997-11-01~2000-03-01 |
12835-77E00-000 |
from US $2.56 |
||
|
24
|
24
11381-77E01-000
カバー,タイミングチェーン
J20A; 1997-11-01~2000-03-01 |
11381-77E01-000 |
— | ||
| replacement | |||||
|
24
|
24
11381-77E02-000 COVER,TIMING CHAINJ20A; 1997-11-01~2000-03-01 |
11381-77E02-000 |
from US $176.81 |
||
|
25
|
25
09206-08001-000 PIN(8X11)J20A; 1997-11-01~2000-03-01 |
09206-08001-000 |
from US $1.26 |
||
|
26
|
26
01550-06303-000
Bolt (6x30)
J20A; 1997-11-01~2000-03-01 |
01550-06303-000 |
— | ||
| replacement | |||||
|
26
|
26
01550-0630A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0630A-000 |
from US $0.96 |
||
|
27
|
27
09108-06118-000
Bolt, stud (l:20)
J20A; 1997-11-01~2000-03-01 |
09108-06118-000 |
— | ||
| replacement | |||||
|
27
|
27
09108-06134-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
09108-06134-000 |
US $1.68 |
||
|
28
|
28
08316-10063-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
28
|
28
08316-1006B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
29
|
29
12631-77E00-000 SPROCKET,CRANKSHAFT TIMINGJ20A; 1997-11-01~2000-03-01 |
12631-77E00-000 |
from US $37.31 |
||
