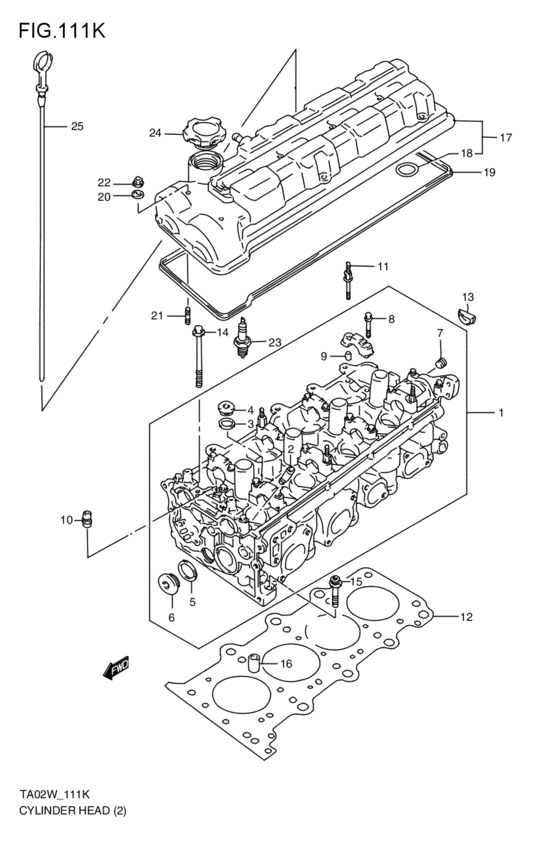

Cylinder head (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- GLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-65G00-000
ヘッドアッシ,シリンダ
J20A; 1997-11-01~2000-03-01 |
11100-65G00-000 |
— | ||
| replacement | |||||
|
1
|
1
11100-65G03-000 HEAD ASSY,CYLINDERJ20A; 1997-11-01~2000-03-01 |
11100-65G03-000 |
US $1,878.24 |
||
|
2
|
2
11115-85FA0-001
Guide, valve
J20A; 1997-11-01~2000-03-01 |
11115-85FA0-001 |
— | ||
| replacement | |||||
|
2
|
2
11115-85FA1-001 GUIDE,VALVEJ20A; 1997-11-01~2000-03-01 |
11115-85FA1-001 |
from US $17.73 |
||
|
3
|
3
11216-77E00-000 GASKET,M18 PLUGJ20A; 1997-11-01~2000-03-01 |
11216-77E00-000 |
from US $1.74 |
||
|
4
|
4
09248-18005-000 PLUGPlug, oil gallery J20A; 1997-11-01~2000-03-01 |
09248-18005-000 |
from US $10.15 |
||
| replacement | |||||
|
4
|
4
09248-18011-000 PLUG(18X8)Plug, oil gallery J20A; 1997-11-01~2000-03-01 |
09248-18011-000 |
from US $2.88 |
||
|
5
|
5
11217-85FA0-000 GASKET,M26 PLUGJ20A; 1997-11-01~2000-03-01 |
11217-85FA0-000 |
from US $1.91 |
||
|
6
|
6
09248-26001-000 PLUG,M26J20A; 1997-11-01~2000-03-01 |
09248-26001-000 |
from US $7.36 |
||
|
7
|
7
09246-05006-000 PLUG(1/8PT,H:5.5)J20A; 1997-11-01~2000-03-01 |
09246-05006-000 |
from US $1.42 |
||
|
8
|
8
09103-06132-000 BOLT(6X41)J20A; 1997-11-01~2000-03-01 |
09103-06132-000 |
from US $1.17 |
||
|
9
|
9
09206-08001-000 PIN(8X11)J20A; 1997-11-01~2000-03-01 |
09206-08001-000 |
from US $1.26 |
||
|
10
|
10
11130-85FA1-000 VALVE,OIL RELIEFJ20A; 1997-11-01~2000-03-01 |
11130-85FA1-000 |
US $31.20 |
||
|
11
|
11
11148-85FA0-000 BOLT,CAMSHAFT HOUSING STUDJ20A; 1997-11-01~2000-03-01 |
11148-85FA0-000 |
from US $4.88 |
||
|
12
|
12
11141-77E01-000
ガスケット,シリンダヘッド
J20A; 1997-11-01~2000-03-01 |
11141-77E01-000 |
— | ||
| replacement | |||||
|
12
|
12
11141-77E02-000 GASKET, CYLINDER HEADJ20A; 1997-11-01~2000-03-01 |
11141-77E02-000 |
from US $69.57 |
||
|
13
|
13
11139-86500-000 SEAL,CYLINDER HEAD SIDEJ20A; 1997-11-01~2000-03-01 |
11139-86500-000 |
US $1.82 |
||
|
14
|
14
11146-85FA1-000 BOLT,CYLINDER HEADJ20A; 1997-11-01~2000-03-01 |
11146-85FA1-000 |
from US $6.44 |
||
|
15
|
15
07120-06403-000
Bolt
J20A; 1997-11-01~2000-03-01 |
07120-06403-000 |
— | ||
| replacement | |||||
|
15
|
15
07120-0640B-000 BOLTJ20A; 1997-11-01~2000-03-01 |
07120-0640B-000 |
from US $1.07 |
||
|
16
|
16
09206-14004-000 PIN(14X11.4X23)J20A; 1997-11-01~2000-03-01 |
09206-14004-000 |
from US $2.48 |
||
|
17
|
17
11170-77E03-000
カバー,シリンダヘッド
J20A; 1997-11-01~2000-03-01 |
11170-77E03-000 |
— | ||
| replacements | |||||
|
17
|
17
11170-59J01-000 Cover,cylinder headJ20A; 1997-11-01~2000-03-01 |
11170-59J01-000 |
US $513.60 |
||
|
17
|
17
18118-54G00-000
VALVE,PCV
J20A; 1997-11-01~2000-03-01 |
18118-54G00-000 |
— | ||
|
18
|
18
11179-81402-000 O-RINGJ20A; 1997-11-01~2000-03-01 |
11179-81402-000 |
from US $1.82 |
||
|
19
|
19
11189-77E00-000 GASKET,CYL HEAD COVERJ20A; 1997-11-01~2000-03-01 |
11189-77E00-000 |
from US $23.65 |
||
|
20
|
20
11188-85FA0-000 WASHER,CYL HEAD COVER SEALJ20A; 1997-11-01~2000-03-01 |
11188-85FA0-000 |
from US $2.13 |
||
|
21
|
21
01421-06163-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
01421-0616A-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
01421-0616A-000 |
from US $1.07 |
||
|
22
|
22
08313-20063-000
Nut
J20A; 1997-11-01~2000-03-01 |
08313-20063-000 |
— | ||
| replacements | |||||
|
22
|
22
08313-2006B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08313-2006B-000 |
from US $0.76 |
||
|
22
|
22
08313-2006A-000 NUTJ20A; 1997-11-01~2000-03-01 |
08313-2006A-000 |
from US $1.04 |
||
|
23
|
23
09482-00494-000 SPARK PLUG (NGK BKR6E-11)NGK; J20A; 1997-11-01~2000-03-01 |
09482-00494-000 |
from US $4.70 |
||
|
23
|
23
09482-00508-000 SPARK PLUG (DENSO K20PR-U11)DENSO; J20A; 1997-11-01~2000-03-01 |
09482-00508-000 |
from US $2.90 |
||
| replacement | |||||
|
23
|
23
09482-00494-000 SPARK PLUG (NGK BKR6E-11)DENSO; J20A; 1997-11-01~2000-03-01 |
09482-00494-000 |
from US $4.70 |
||
|
24
|
24
16920-86502-000
Cap, oil filler
J20A; 1997-11-01~2000-03-01 |
16920-86502-000 |
— | ||
| replacements | |||||
|
24
|
24
16920-83G00-000
Cap,oil filler
J20A; 1997-11-01~2000-03-01 |
16920-83G00-000 |
— | ||
|
24
|
24
16920-83G01-000
CAP OIL FILLER
J20A; 1997-11-01~2000-03-01 |
16920-83G01-000 |
— | ||
|
25
|
25
16910-77E02-000
ゲージ,オイルレベル
J20A; 1997-11-01~2000-03-01 |
16910-77E02-000 |
— | ||
| replacement | |||||
|
25
|
25
16910-77E05-000 GAUGE,OIL LEVELJ20A; 1997-11-01~2000-03-01 |
16910-77E05-000 |
from US $17.03 |
||
