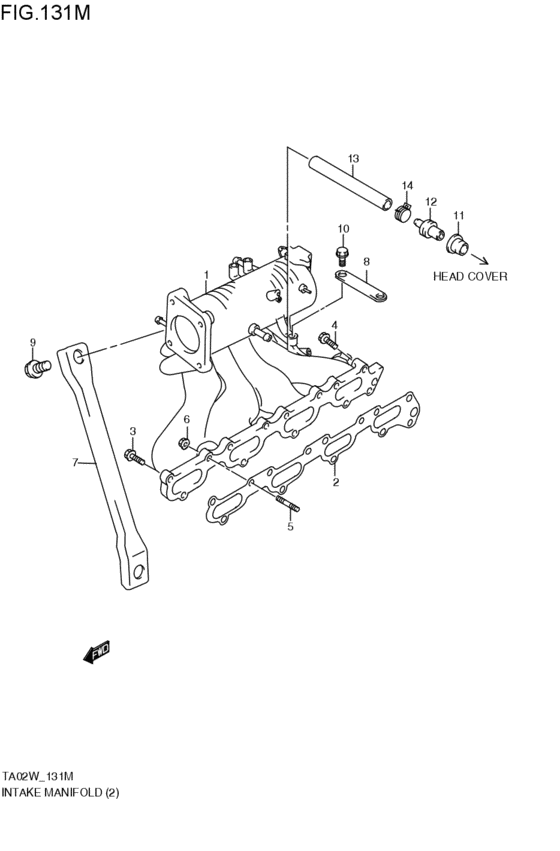

intake manifold (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1998 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- GLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-65D00-000
マニホールド,インテーク
J20A; 1997-11-01~1998-05-01 |
13110-65D00-000 |
— | ||
| replacements | |||||
|
1
|
1
13110-65D01-000
MANIFOLD,INTK
J20A; 1997-11-01~1998-05-01 |
13110-65D01-000 |
— | ||
|
1
|
1
13161-65D01-000
STIFFENER,INTK MANF
J20A; 1997-11-01~1998-05-01 |
13161-65D01-000 |
— | ||
|
1
|
1
13110-65D01-000
MANIFOLD,INTK
J20A; 1998-11-01~2000-03-01 |
13110-65D01-000 |
— | ||
|
2
|
2
13119-77EA0-000 GASKET,INTK MANFJ20A; 1997-11-01~2000-03-01 |
13119-77EA0-000 |
from US $27.96 |
||
|
3
|
3
01550-08253-000
Bolt, rear
J20A; 1997-11-01~2000-03-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825B-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0825B-000 |
from US $0.96 |
||
|
3
|
3
01550-0825A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0825A-000 |
from US $1.06 |
||
|
4
|
4
01550-08353-000
Bolt, rear
J20A; 1997-11-01~2000-03-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0835B-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0835B-000 |
from US $1.12 |
||
|
4
|
4
01550-0835A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0835A-000 |
from US $1.06 |
||
|
5
|
5
01421-08253-000
Stud bolt, no.2
J20A; 1997-11-01~2000-03-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
5
|
5
01421-0825A-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
01421-0825A-000 |
from US $1.12 |
||
|
6
|
6
08316-10083-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
6
|
6
08316-1008B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
7
|
7
13161-65D00-000
スチフナ,インテークマニホールド,リヤ
J20A; 1997-11-01~1998-05-01 |
13161-65D00-000 |
— | ||
|
7
|
7
13161-65D01-000
STIFFENER,INTK MANF
J20A; 1998-11-01~2000-03-01 |
13161-65D01-000 |
— | ||
|
8
|
8
13166-77EA0-000
STIFFENER,INTK MANF FR
J20A; 1997-11-01~2000-03-01 |
13166-77EA0-000 |
— | ||
|
9
|
9
01550-10203-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
9
|
9
01550-1020A-000 BOLTBolt, bal sprocket J20A; 1997-11-01~2000-03-01 |
01550-1020A-000 |
from US $0.96 |
||
|
10
|
10
01550-08203-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0820B-000 BoltJ20A; 1997-11-01~2000-03-01 |
01550-0820B-000 |
from US $0.91 |
||
|
10
|
10
01550-0820A-000 BOLTBolt, funnel bracket J20A; 1997-11-01~2000-03-01 |
01550-0820A-000 |
from US $0.96 |
||
|
11
|
11
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve J20A; 1997-11-01~2000-03-01 |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
11
|
11
11198-98L00-000 Seal,pcv ValveJ20A; 1997-11-01~2000-03-01 |
11198-98L00-000 |
from US $2.74 |
||
|
12
|
12
18118-64B00-000 VALVE,PCVJ20A; 1997-11-01~2000-03-01 |
18118-64B00-000 |
from US $20.32 |
||
|
13
|
13
09354-80153-600 HOSE(8X15X600)L:600>110; J20A; 1997-11-01~2000-03-01 |
09354-80153-600 |
from US $19.60 |
||
|
14
|
14
09401-13414-000 CLIPClip, pcv hose J20A; 1997-11-01~2000-03-01 |
09401-13414-000 |
from US $1.60 |
||
