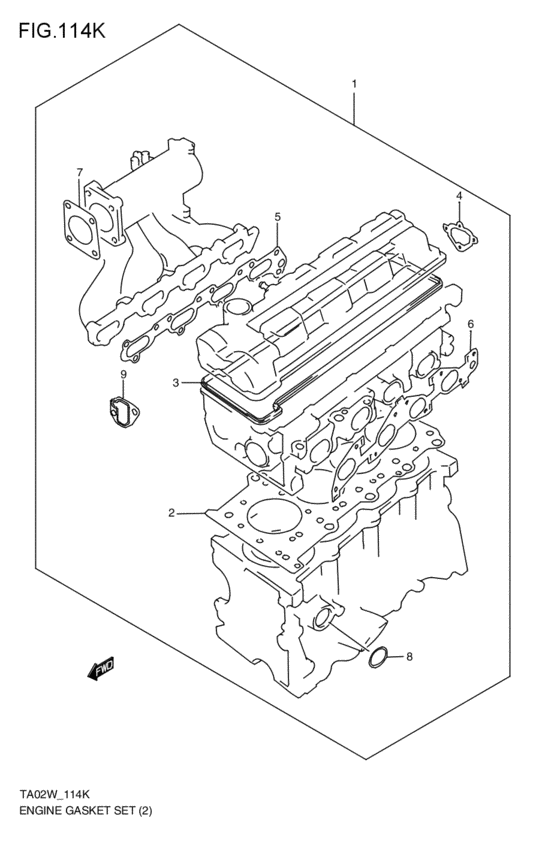

engine gasket set (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- SLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11400-65862-000
ガスケットセット,エンジン
J20A; 1997-11-01~2000-03-01 |
11400-65862-000 |
— | ||
| replacement | |||||
|
1
|
1
11400-65865-000 GASKET SET,ENGINEJ20A; 1997-11-01~2000-03-01 |
11400-65865-000 |
US $229.52 |
||
|
2
|
2
11141-77E01-000
ガスケット,シリンダヘッド
J20A; 1997-11-01~2000-03-01 |
11141-77E01-000 |
— | ||
| replacement | |||||
|
2
|
2
11141-77E02-000 GASKET, CYLINDER HEADJ20A; 1997-11-01~2000-03-01 |
11141-77E02-000 |
US $169.60 |
||
|
3
|
3
11189-77E00-000 GASKET,CYL HEAD COVERJ20A; 1997-11-01~2000-03-01 |
11189-77E00-000 |
US $61.60 |
||
|
4
|
4
17579-77EA0-000 GASKET,WTR OUTLET CAPJ20A; 1997-11-01~2000-03-01 |
17579-77EA0-000 |
US $11.20 |
||
|
5
|
5
13119-77EA0-000 GASKET,INTK MANFJ20A; 1997-11-01~2000-03-01 |
13119-77EA0-000 |
from US $27.96 |
||
|
6
|
6
14140-65D01-000
ガスケット,エキゾーストマニホールド
J20A; 1997-11-01~2000-03-01 |
14140-65D01-000 |
— | ||
| replacement | |||||
|
6
|
6
14140-65D02-000 GASKET,EXH MANFJ20A; 1997-11-01~2000-03-01 |
14140-65D02-000 |
US $67.20 |
||
|
7
|
7
13421-65D00-000 GASKET,THROTTLE BODYJ20A; 1997-11-01~2000-03-01 |
13421-65D00-000 |
US $6.56 |
||
|
8
|
8
09280-44008-000 O RING(D:2.4,ID:39.5)J20A; 1997-11-01~2000-03-01 |
09280-44008-000 |
US $2.88 |
||
|
9
|
9
12835-77E00-000 GASKET,TENSIONER ADJ,NO.2J20A; 1997-11-01~2000-03-01 |
12835-77E00-000 |
US $2.56 |
||
