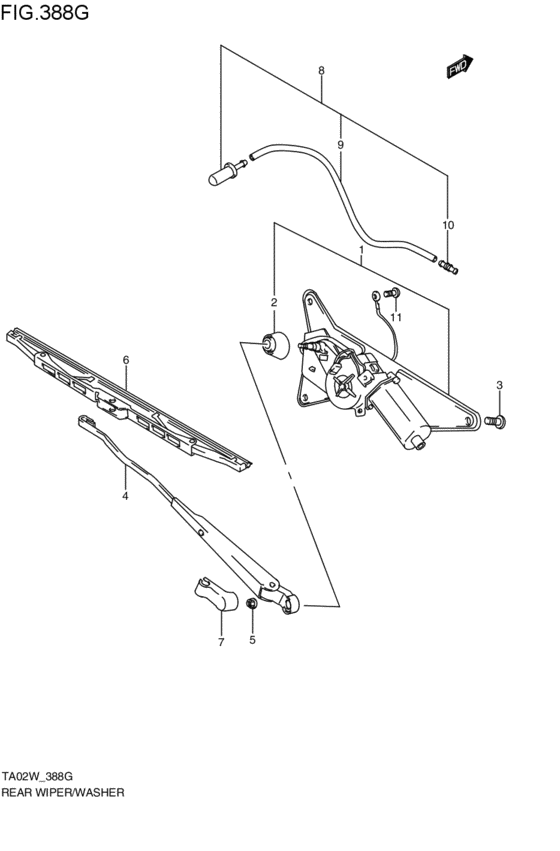

rear wind windshield wiper / washer (1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- SLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38810-65D00-000 WIPER ASSY,BACK WINDOW1997-11-01~2000-03-01 |
38810-65D00-000 |
US $356.80 |
||
|
2
|
2
38274-65D00-000 CAP,PIVOT1997-11-01~2000-03-01 |
38274-65D00-000 |
US $5.15 |
||
|
3
|
3
02162-06123-000
Bolt (6x12)
1997-11-01~2000-03-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
3
|
3
02162-0612B-000 SCREWBolt 1997-11-01~2000-03-01 |
02162-0612B-000 |
from US $0.80 |
||
|
3
|
3
02162-0612A-000 SCREWBolt, bracket 1997-11-01~2000-03-01 |
02162-0612A-000 |
from US $0.80 |
||
|
4
|
4
38821-65D00-000 ARM ASSY,RR WIPER1997-11-01~2000-03-01 |
38821-65D00-000 |
US $91.20 |
||
|
5
|
5
08316-10063-000
Nut
1997-11-01~2000-03-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1006B-000 NUT1997-11-01~2000-03-01 |
08316-1006B-000 |
from US $0.76 |
||
|
6
|
6
38822-65D00-000 BLADE ASSY,RR WIPER1997-11-01~2000-03-01 |
38822-65D00-000 |
US $16.16 |
||
|
7
|
7
38315-63G00-000 COVER,RR WIPER HEAD1997-11-01~2000-03-01 |
38315-63G00-000 |
US $4.86 |
||
|
8
|
8
38840-65D01-000
ノズルアッシ,リヤウォッシャ
1997-11-01~2000-03-01 |
38840-65D01-000 |
— | ||
| replacement | |||||
|
8
|
8
38840-65D20-000 NOZZLE ASSY,RR WASHER1997-11-01~2000-03-01 |
38840-65D20-000 |
US $22.80 |
||
|
9
|
9
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>250; 1997-11-01~2000-03-01 |
38491-61A00-000 |
US $5.12 |
||
|
10
|
10
38496-61A00-000 VALVE,CHECK1997-11-01~2000-03-01 |
38496-61A00-000 |
US $2.08 |
||
|
11
|
11
09139-05028-000 SCREW(5X14)1997-11-01~2000-03-01 |
09139-05028-000 |
US $11.40 |
||
