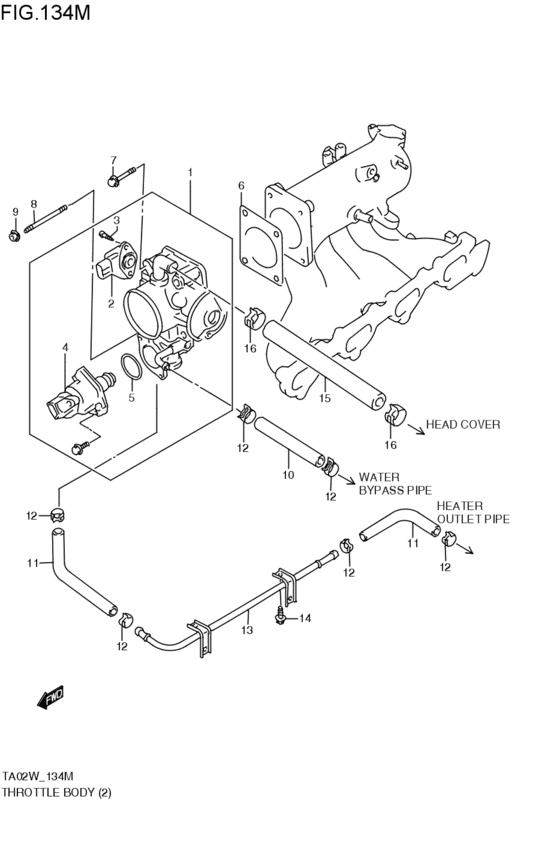

throttle body (J20A; 1997-11-01~2000-03-01) Diagram Suzuki ESCUDO
- Year
- 1999 - 2011
- Sales region
- Japan
- Engine
- J20A
- transmission
- AT
- Number of doors
- 5DR
- grade
- SLTD
- body
- W
- air bag
- AB
- abs
- ABS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13400-65D00-000 BODY ASSY,THROTTLEJ20A; 1997-11-01~2000-03-01 |
13400-65D00-000 |
US $1,241.80 |
||
|
2
|
2
13420-65D00-000
センサ,スロットルポジション
J20A; 1997-11-01~2000-03-01 |
13420-65D00-000 |
— | ||
| replacement | |||||
|
2
|
2
13420-65D01-000 SENSOR,THROTTLE POSITIONJ20A; 1997-11-01~2000-03-01 |
13420-65D01-000 |
US $211.20 |
||
|
3
|
3
13428-65D00-000 SCREW,TP-SENSORJ20A; 1997-11-01~2000-03-01 |
13428-65D00-000 |
US $2.10 |
||
|
4
|
4
18137-65D00-000 VALVE,IACJ20A; 1997-11-01~2000-03-01 |
18137-65D00-000 |
US $349.60 |
||
|
5
|
5
13411-65D00-000 O-RING,IAC VALVEJ20A; 1997-11-01~2000-03-01 |
13411-65D00-000 |
US $4.38 |
||
|
6
|
6
13421-65D00-000 GASKET,THROTTLE BODYJ20A; 1997-11-01~2000-03-01 |
13421-65D00-000 |
US $6.56 |
||
|
7
|
7
01550-08503-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-08503-000 |
— | ||
| replacement | |||||
|
7
|
7
01550-0850B-000 BoltJ20A; 1997-11-01~2000-03-01 |
01550-0850B-000 |
from US $1.22 |
||
|
8
|
8
01421-08503-000
Bolt, stud
J20A; 1997-11-01~2000-03-01 |
01421-08503-000 |
— | ||
| replacement | |||||
|
8
|
8
01421-0850A-000 BOLT,STUDJ20A; 1997-11-01~2000-03-01 |
01421-0850A-000 |
from US $4.18 |
||
|
9
|
9
08316-10083-000
Nut
J20A; 1997-11-01~2000-03-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
9
|
9
08316-1008B-000 NUTJ20A; 1997-11-01~2000-03-01 |
08316-1008B-000 |
from US $0.76 |
||
|
10
|
10
09356-75141-600 HOSE(7.5X14.5X600)L:600>130; J20A; 1998-04-01~2000-03-01 |
09356-75141-600 |
US $7.20 |
||
|
10
|
10
09352-70131-600
HOSE(7X13X600)
L:600>130; J20A; 1997-11-01~1998-03-01 |
09352-70131-600 |
— | ||
|
11
|
11
09356-75141-600 HOSE(7.5X14.5X600)L:600>160; J20A; 1998-04-01~2000-03-01 |
09356-75141-600 |
US $7.20 |
||
|
11
|
11
09352-70131-600
HOSE(7X13X600)
L:600>160; J20A; 1997-11-01~1998-03-01 |
09352-70131-600 |
— | ||
|
12
|
12
09401-12404-000 CLIPClip J20A; 1997-11-01~1998-03-01 |
09401-12404-000 |
from US $1.52 |
||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet J20A; 1998-04-01~2000-03-01 |
09401-12410-000 |
from US $1.52 |
||
|
13
|
13
13450-77EA1-000 PIPE,WATERJ20A; 1997-11-01~2000-03-01 |
13450-77EA1-000 |
US $52 |
||
|
14
|
14
01550-06123-000
Bolt
J20A; 1997-11-01~2000-03-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0612B-000 BOLTBolt, clamp J20A; 1997-11-01~2000-03-01 |
01550-0612B-000 |
from US $0.76 |
||
|
14
|
14
01550-0612A-000 BOLTJ20A; 1997-11-01~2000-03-01 |
01550-0612A-000 |
from US $0.76 |
||
|
15
|
15
09355-13207-600 HOSE(13X20X600)Hose, breather L:600>190; J20A; 1997-11-01~2000-03-01 |
09355-13207-600 |
US $12.46 |
||
|
16
|
16
09401-18404-000 CLIPJ20A; 1997-11-01~2000-03-01 |
09401-18404-000 |
from US $1.37 |
||
