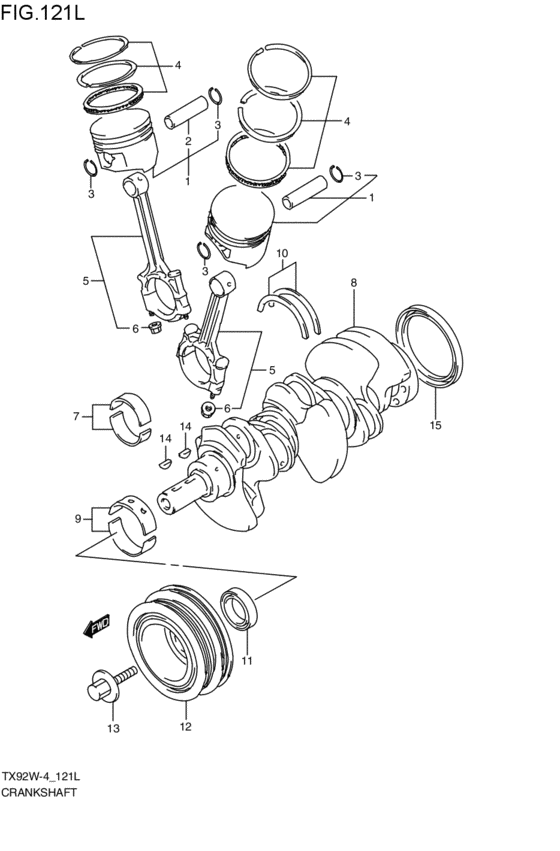

crankshaft (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-52812-0A0 PISTON SET,STD MARK 1マーク1; 2003-06-01~2005-04-01 |
12100-52812-0A0 |
from US $88.76 |
||
|
1
|
1
12100-52812-0B0 PISTON SET,STD MARK 2マーク2; 2003-06-01~2005-04-01 |
12100-52812-0B0 |
from US $76.61 |
||
|
2
|
2
12151-86FA0-000 PIN,PISTON2003-06-01~2005-04-01 |
12151-86FA0-000 |
from US $8.71 |
||
|
3
|
3
09381-21002-000 RING,SNAP2003-06-01~2005-04-01 |
09381-21002-000 |
from US $0.93 |
||
|
4
|
4
12140-52D00-000 RING SET,PISTON STD2003-06-01~2005-04-01 |
12140-52D00-000 |
from US $73.37 |
||
|
5
|
5
12160-86FA1-000
Connrod assy
2003-06-01~2005-04-01 |
12160-86FA1-000 |
— | ||
| replacement | |||||
|
5
|
5
12160-86FB0-000 CONNROD ASSY2003-06-01~2005-04-01 |
12160-86FB0-000 |
from US $129.90 |
||
|
6
|
6
09159-09005-000 NUT2003-06-01~2005-04-01 |
09159-09005-000 |
from US $1.44 |
||
|
7
|
7
12100-85824-0A0 BEARING SET,CONNROD, GREENGreen グリーン; 2003-06-01~2005-04-01 |
12100-85824-0A0 |
from US $23.40 |
||
|
7
|
7
12100-85824-0B0 BEARING SET,CONNROD, BLACKBlack ブラック; 2003-06-01~2005-04-01 |
12100-85824-0B0 |
from US $24.01 |
||
|
7
|
7
12100-85824-0C0 BEARING SET,CONNROD, NO COLORColor: None カラー:ナシ; 2003-06-01~2005-04-01 |
12100-85824-0C0 |
from US $21.26 |
||
|
7
|
7
12100-85824-0D0 BEARING SET,CONNROD, YELLOWYellow イエロー; 2003-06-01~2005-04-01 |
12100-85824-0D0 |
from US $20.70 |
||
|
7
|
7
12100-85824-0E0 BEARING SET,CONNROD, BLUEBlue ブルー; 2003-06-01~2005-04-01 |
12100-85824-0E0 |
from US $28.33 |
||
|
7
|
7
12100-85824-025 BEARING SET,CONNROD US:0.25Red レッド; 2003-06-01~2005-04-01 |
12100-85824-025 |
from US $19.32 |
||
|
8
|
8
12221-86FA1-000 CRANKSHAFT2003-06-01~2005-04-01 |
12221-86FA1-000 |
from US $998.73 |
||
|
9
|
9
12300-86812-0BA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/black) レッド/ブラック; 2003-06-01~2004-11-01 |
12300-86812-0BA |
from US $23.74 |
||
|
9
|
9
12300-86812-0CA BEARING SET,CRANKSHAFT USRed レッド; 2003-06-01~2004-11-01 |
12300-86812-0CA |
from US $23.74 |
||
|
9
|
9
12300-86812-0DA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/yellow) レッド/イエロー; 2003-06-01~2004-11-01 |
12300-86812-0DA |
from US $22.32 |
||
|
9
|
9
12300-86812-0EA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/blue) レッド/ブルー; 2003-06-01~2004-11-01 |
12300-86812-0EA |
from US $22.07 |
||
|
9
|
9
12300-86812-0FA BEARING SET,CRANKSHAFT USBearing set, crankshaft (red/pink) レッド/ピンク; 2003-06-01~2004-11-01 |
12300-86812-0FA |
from US $15.05 |
||
|
9
|
9
12300-86820-0BA BEARING SET,CRANKSHAFT USRed / Black レッド/ブラック; 2004-12-01~2005-04-01 |
12300-86820-0BA |
from US $22.14 |
||
|
9
|
9
12300-86820-0CA BEARING SET,CRANKSHAFT USRed レッド; 2004-12-01~2005-04-01 |
12300-86820-0CA |
from US $20 |
||
|
9
|
9
12300-86820-0DA BEARING SET,CRANKSHAFT USRed / Yellow レッド/イエロー; 2004-12-01~2005-04-01 |
12300-86820-0DA |
from US $21.04 |
||
|
9
|
9
12300-86820-0EA BEARING SET,CRANKSHAFT USRed/ Blue レッド/ブルー; 2004-12-01~2005-04-01 |
12300-86820-0EA |
US $26.86 |
||
|
9
|
9
12300-86820-0FA BEARING SET,CRANKSHAFT USRed / Pink レッド/ピンク; 2004-12-01~2005-04-01 |
12300-86820-0FA |
US $32.38 |
||
|
9
|
9
12340-86FA2-0B0 BEARING SET,CRANKSHAFT STDブラック; 2003-06-01~2004-11-01 |
12340-86FA2-0B0 |
from US $27.65 |
||
|
9
|
9
12340-86FA2-0C0 BEARING SET,CRANKSHAFT STDカラー:ナシ; 2003-06-01~2004-11-01 |
12340-86FA2-0C0 |
from US $25.55 |
||
|
9
|
9
12340-86FA2-0D0 BEARING SET,CRANKSHAFT STDBearing set, crankshaft (yellow) イエロー; 2003-06-01~2004-11-01 |
12340-86FA2-0D0 |
from US $25.55 |
||
|
9
|
9
12340-86FA2-0E0 BEARING SET,CRANKSHAFT STDBlue ブルー; 2003-06-01~2004-11-01 |
12340-86FA2-0E0 |
from US $25.55 |
||
|
9
|
9
12340-86FA2-0F0 BEARING SET,CRANKSHAFT STDPink ピンク; 2003-06-01~2004-11-01 |
12340-86FA2-0F0 |
from US $28.42 |
||
|
9
|
9
12340-86FB0-B0C BEARING SET,CRANKSHAFT STDBlack / None ブラック/ナシ; 2004-12-01~2005-04-01 |
12340-86FB0-B0C |
US $26.86 |
||
|
9
|
9
12340-86FB0-C0D BEARING SET,CRANKSHAFT STDNone / yellow ナシ/イエロー; 2004-12-01~2005-04-01 |
12340-86FB0-C0D |
US $32.38 |
||
|
9
|
9
12340-86FB0-D0E BEARING SET,CRANKSHAFT STDYellow / Blue イエロー/ブルー; 2004-12-01~2005-04-01 |
12340-86FB0-D0E |
US $32.38 |
||
|
9
|
9
12340-86FB0-E0F BEARING SET,CRANKSHAFT STDBlue / Pink ブルー/ピンク; 2004-12-01~2005-04-01 |
12340-86FB0-E0F |
US $32.38 |
||
|
9
|
9
12340-86FB0-F0G BEARING SET,CRANKSHAFT STDPink / Brown ピンク/ブラウン; 2004-12-01~2005-04-01 |
12340-86FB0-F0G |
US $26.86 |
||
|
9
|
9
12340-86FB0-0B0 BEARING SET,CRANKSHAFT STDBlack ブラック; 2004-12-01~2005-04-01 |
12340-86FB0-0B0 |
US $26.86 |
||
|
9
|
9
12340-86FB0-0C0 BEARING SET,CRANKSHAFT STDColor: None カラー:ナシ; 2004-12-01~2005-04-01 |
12340-86FB0-0C0 |
from US $38.66 |
||
|
9
|
9
12340-86FB0-0D0 BEARING SET,CRANKSHAFT STDYellow イエロー; 2004-12-01~2005-04-01 |
12340-86FB0-0D0 |
from US $20.72 |
||
|
9
|
9
12340-86FB0-0E0 BEARING SET,CRANKSHAFT STDBlue ブルー; 2004-12-01~2005-04-01 |
12340-86FB0-0E0 |
US $32.38 |
||
|
9
|
9
12340-86FB0-0F0 BEARING SET,CRANKSHAFT STDPink ピンク; 2004-12-01~2005-04-01 |
12340-86FB0-0F0 |
US $32.38 |
||
|
10
|
10
12300-85830-000 BEARING SET,CRANK THRUST2003-06-01~2005-04-01 |
12300-85830-000 |
from US $14.22 |
||
|
10
|
10
12300-85830-012 BEARING SET,CRANK THRUST OSBearing set, crank thrust (os:0.12) 2003-06-01~2005-04-01 |
12300-85830-012 |
from US $20.81 |
||
|
11
|
11
09283-45012-000 SEAL,OIL(45X63X7.5)2003-06-01~2005-04-01 |
09283-45012-000 |
from US $15.48 |
||
|
12
|
12
12610-85FA1-000 PULLEY,CRANKSHAFT2003-06-01~2005-04-01 |
12610-85FA1-000 |
from US $318.89 |
||
|
13
|
13
12615-85FA0-000 BOLT,CRANK PULLEY2003-06-01~2005-04-01 |
12615-85FA0-000 |
from US $13.97 |
||
|
14
|
14
08341-31059-000 KEYKey 2003-06-01~2005-04-01 |
08341-31059-000 |
from US $1.53 |
||
|
15
|
15
09283-98002-000 SEAL,OIL(98X116X10)2003-06-01~2005-04-01 |
09283-98002-000 |
from US $46.17 |
||
