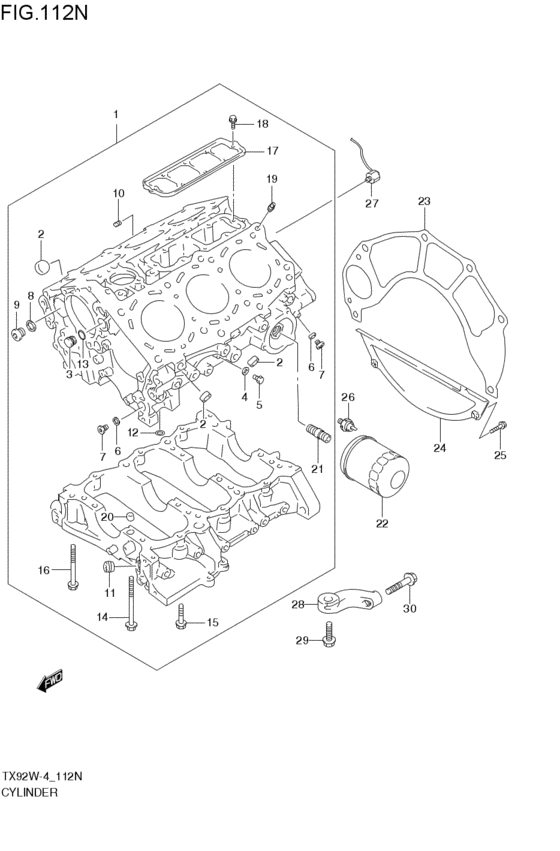

Cylinder (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11200-52D03-000
Block assy,cylinder
2003-06-01~2005-04-01 |
11200-52D03-000 |
— | ||
| replacement | |||||
|
1
|
1
11200-52D03-X12 BLOCK ASSY,CYLINDER H27A2003-06-01~2005-04-01 |
11200-52D03-X12 |
US $3,557.12 |
||
|
2
|
2
09241-30009-000
Plug
2003-06-01~2005-04-01 |
09241-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09241-30010-000 PLUG2003-06-01~2005-04-01 |
09241-30010-000 |
from US $2.23 |
||
|
3
|
3
11214-85FA1-000 PLUG2003-06-01~2005-04-01 |
11214-85FA1-000 |
from US $6.89 |
||
|
4
|
4
09168-10031-000 GASKET(10.2X20X2.3)2003-06-01~2005-04-01 |
09168-10031-000 |
from US $0.74 |
||
|
5
|
5
09103-10286-000 BOLT(10X12)2003-06-01~2005-04-01 |
09103-10286-000 |
from US $1.92 |
||
|
6
|
6
11216-77E00-000 GASKET,M18 PLUG2003-06-01~2005-04-01 |
11216-77E00-000 |
from US $1.74 |
||
|
7
|
7
09248-18005-000 PLUGPlug, oil gallery 2003-06-01~2005-04-01 |
09248-18005-000 |
from US $8.51 |
||
| replacement | |||||
|
7
|
7
09248-18011-000 PLUG(18X8)Plug, oil gallery 2003-06-01~2005-04-01 |
09248-18011-000 |
from US $3.15 |
||
|
8
|
8
11217-85FA0-000 GASKET,M26 PLUG2003-06-01~2005-04-01 |
11217-85FA0-000 |
from US $2.40 |
||
|
9
|
9
09248-26001-000 PLUG,M262003-06-01~2005-04-01 |
09248-26001-000 |
from US $7.07 |
||
|
10
|
10
09246-05006-000 PLUG(1/8PT,H:5.5)2003-06-01~2005-04-01 |
09246-05006-000 |
from US $1.76 |
||
|
11
|
11
09246-16010-000 PLUG2003-06-01~2005-04-01 |
09246-16010-000 |
US $4.37 |
||
| replacement | |||||
|
11
|
11
09246-16021-000 Plug,t/m Oil Drain2003-06-01~2005-04-01 |
09246-16021-000 |
from US $4.37 |
||
|
12
|
12
09280-22020-000 O RING(D:2.4,ID:21.8)O ring (d:2.4,id:21.8) 2003-06-01~2005-04-01 |
09280-22020-000 |
from US $1.60 |
||
|
13
|
13
09280-22019-000 O RING(D:1.9,ID:21.8)2003-06-01~2005-04-01 |
09280-22019-000 |
from US $1.49 |
||
|
14
|
14
11251-85FA1-000 BOLT,CRANK CASEBolt 2003-06-01~2005-04-01 |
11251-85FA1-000 |
from US $6.71 |
||
|
15
|
15
01550-08403-000
Bolt
2003-06-01~2005-04-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0840B-000 Bolt2003-06-01~2005-04-01 |
01550-0840B-000 |
from US $1.12 |
||
|
15
|
15
01550-0840A-000 Bolt2003-06-01~2005-04-01 |
01550-0840A-000 |
from US $1.12 |
||
|
16
|
16
01550-08853-000
Bolt
2003-06-01~2005-04-01 |
01550-08853-000 |
— | ||
| replacement | |||||
|
16
|
16
01550-0885B-000 Bolt2003-06-01~2005-04-01 |
01550-0885B-000 |
from US $1.67 |
||
|
17
|
17
11271-85FA0-000 PLATE,CYLINDER BLOCK2003-06-01~2005-04-01 |
11271-85FA0-000 |
from US $6.71 |
||
|
18
|
18
01550-06123-000
Bolt
2003-06-01~2005-04-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0612B-000 BoltBolt, clamp 2003-06-01~2005-04-01 |
01550-0612B-000 |
from US $0.76 |
||
|
18
|
18
01550-0612A-000 Bolt2003-06-01~2005-04-01 |
01550-0612A-000 |
from US $0.76 |
||
|
19
|
19
16450-85FA1-000 VALVE,CHECK2003-06-01~2005-04-01 |
16450-85FA1-000 |
from US $15.08 |
||
|
20
|
20
04211-13189-000 PIN2003-06-01~2005-04-01 |
04211-13189-000 |
from US $1.22 |
||
|
21
|
21
11241-86FA0-000 STAND,OIL FILTER2003-06-01~2005-04-01 |
11241-86FA0-000 |
from US $6.72 |
||
|
22
|
22
16510-85FA0-000 FILTER ASSY,OIL TOKYO ROKITOKYO ROKI; 2003-06-01~2005-04-01 |
16510-85FA0-000 |
from US $20.27 |
||
|
23
|
23
11311-85F10-000 PLATE,CLUTCH HSG2003-06-01~2005-04-01 |
11311-85F10-000 |
from US $20.68 |
||
|
24
|
24
11320-67D00-000 PLATE,CLUTCH HSG LOWER2003-06-01~2005-04-01 |
11320-67D00-000 |
US $10.16 |
||
|
25
|
25
01550-06353-000
Bolt
2003-06-01~2005-04-01 |
01550-06353-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-0635B-000 Bolt2003-06-01~2005-04-01 |
01550-0635B-000 |
from US $0.91 |
||
|
25
|
25
01550-0635A-000 Bolt2003-06-01~2005-04-01 |
01550-0635A-000 |
from US $0.96 |
||
|
26
|
26
37820-82002-000
Switch assy,oil press
2003-06-01~2005-04-01 |
37820-82002-000 |
— | ||
| replacement | |||||
|
26
|
26
37820-820P0-000 SWITCH ASSY,OIL PRESSURE2003-06-01~2005-04-01 |
37820-820P0-000 |
from US $12.67 |
||
|
27
|
27
18640-78G00-000 SENSOR ASSY,KNOCK2003-06-01~2005-04-01 |
18640-78G00-000 |
from US $114.82 |
||
|
28
|
28
11331-67D00-000
Stiffener,eng & t/m
2003-06-01~2005-04-01 |
11331-67D00-000 |
— | ||
|
29
|
29
01550-10303-000
Bolt
2003-06-01~2005-04-01 |
01550-10303-000 |
— | ||
| replacements | |||||
|
29
|
29
01550-1030B-000 BoltBolt, axle housing rear 2003-06-01~2005-04-01 |
01550-1030B-000 |
from US $1.87 |
||
|
29
|
29
01550-1030A-000 Bolt2003-06-01~2005-04-01 |
01550-1030A-000 |
from US $1.12 |
||
|
30
|
30
01550-10453-000
Bolt
2003-06-01~2005-04-01 |
01550-10453-000 |
— | ||
| replacement | |||||
|
30
|
30
01550-1045B-000 Bolt2003-06-01~2005-04-01 |
01550-1045B-000 |
from US $1.28 |
||
