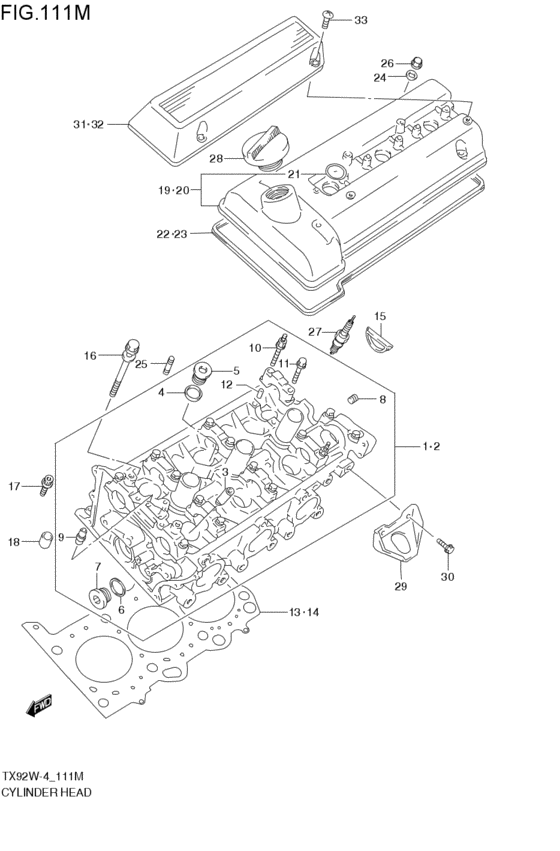

Cylinder head (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-86FA4-000
HEAD ASSY,CYLINDER,R
2003-06-01~2005-04-01 |
11101-86FA4-000 |
— | ||
|
2
|
2
11103-86FA4-000 HEAD ASSY,CYLINDER,L2003-06-01~2005-04-01 |
11103-86FA4-000 |
from US $1,682.16 |
||
|
3
|
3
11115-85FA1-001 GUIDE,VALVE2003-06-01~2005-04-01 |
11115-85FA1-001 |
from US $17.73 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUG2003-06-01~2005-04-01 |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
09248-18005-000 PLUGPlug, oil gallery 2003-06-01~2005-04-01 |
09248-18005-000 |
from US $8.51 |
||
| replacement | |||||
|
5
|
5
09248-18011-000 PLUG(18X8)Plug, oil gallery 2003-06-01~2005-04-01 |
09248-18011-000 |
from US $3.15 |
||
|
6
|
6
11217-85FA0-000 GASKET,M26 PLUG2003-06-01~2005-04-01 |
11217-85FA0-000 |
from US $2.40 |
||
|
7
|
7
09248-26001-000 PLUG,M262003-06-01~2005-04-01 |
09248-26001-000 |
from US $7.07 |
||
|
8
|
8
09246-05006-000 PLUG(1/8PT,H:5.5)2003-06-01~2005-04-01 |
09246-05006-000 |
from US $1.76 |
||
|
9
|
9
11130-85FA1-000 VALVE,OIL RELIEF2003-06-01~2005-04-01 |
11130-85FA1-000 |
from US $20.79 |
||
|
10
|
10
11148-85FA0-000 BOLT,CAMSHAFT HOUSING STUD2003-06-01~2005-04-01 |
11148-85FA0-000 |
from US $7.29 |
||
|
11
|
11
09103-06132-000 BOLT(6X41)2003-06-01~2005-04-01 |
09103-06132-000 |
from US $1.28 |
||
|
12
|
12
09206-08001-000 PIN(8X11)2003-06-01~2005-04-01 |
09206-08001-000 |
from US $1.53 |
||
|
13
|
13
11141-52D01-000 GASKET,CYL HEAD,R2003-06-01~2005-04-01 |
11141-52D01-000 |
from US $113.60 |
||
|
14
|
14
11142-52D01-000 GASKET,CYL HEAD,L2003-06-01~2005-04-01 |
11142-52D01-000 |
from US $111.53 |
||
|
15
|
15
11139-86500-000 SEAL,CYLINDER HEAD SIDE2003-06-01~2005-04-01 |
11139-86500-000 |
from US $1.82 |
||
|
16
|
16
11146-85FA1-000 BOLT,CYLINDER HEAD2003-06-01~2005-04-01 |
11146-85FA1-000 |
from US $5.78 |
||
|
17
|
17
07120-06253-000
Bolt, center
2003-06-01~2005-04-01 |
07120-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
07120-0625A-000 BoltBolt, cylinder head (l25) 2003-06-01~2005-04-01 |
07120-0625A-000 |
from US $0.91 |
||
|
18
|
18
09206-14004-000 PIN(14X11.4X23)2003-06-01~2005-04-01 |
09206-14004-000 |
from US $3.80 |
||
|
19
|
19
11170-85FA3-000 COVER,CYLINDER HEAD,R2003-06-01~2005-04-01 |
11170-85FA3-000 |
US $446.40 |
||
|
20
|
20
11180-85FC0-000 COVER,CYLINDER HEAD,L2003-06-01~2005-04-01 |
11180-85FC0-000 |
from US $178.29 |
||
|
21
|
21
11179-81402-000 O-RING2003-06-01~2005-04-01 |
11179-81402-000 |
from US $1.82 |
||
|
22
|
22
11176-85FA0-000 GASKET,CYL HEAD COVER,R2003-06-01~2005-04-01 |
11176-85FA0-000 |
from US $31.01 |
||
|
23
|
23
11186-85FA0-000 GASKET,CYL HEAD COVER,L2003-06-01~2005-04-01 |
11186-85FA0-000 |
from US $30.87 |
||
|
24
|
24
11188-85FA0-000 WASHER,CYL HEAD COVER SEAL2003-06-01~2005-04-01 |
11188-85FA0-000 |
from US $2.13 |
||
|
25
|
25
01421-06163-000
Bolt
2003-06-01~2005-04-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
01421-0616A-000 BOLT,STUD2003-06-01~2005-04-01 |
01421-0616A-000 |
from US $1.07 |
||
|
26
|
26
08313-20063-000
Nut
2003-06-01~2005-04-01 |
08313-20063-000 |
— | ||
| replacements | |||||
|
26
|
26
08313-2006B-000 NUT2003-06-01~2005-04-01 |
08313-2006B-000 |
from US $0.76 |
||
|
26
|
26
08313-2006A-000 NUT2003-06-01~2005-04-01 |
08313-2006A-000 |
from US $1.24 |
||
|
27
|
27
09482-00550-000 PLUG,SPARK(NGK IFR6J11)NGK; 2003-06-01~2005-04-01 |
09482-00550-000 |
from US $25.84 |
||
|
28
|
28
16920-83G10-000
Cap comp,oil filler
2003-06-01~2005-04-01 |
16920-83G10-000 |
— | ||
| replacements | |||||
|
28
|
28
16920-83G00-000
Cap,oil filler
2003-06-01~2005-04-01 |
16920-83G00-000 |
— | ||
|
28
|
28
16920-83G01-000 CAP OIL FILLER2003-06-01~2005-04-01 |
16920-83G01-000 |
US $10.22 |
||
|
29
|
29
11851-77E03-000 HOOK,ENGINE2003-06-01~2005-04-01 |
11851-77E03-000 |
from US $5.78 |
||
|
30
|
30
01550-08203-000
Bolt
2003-06-01~2005-04-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0820B-000 Bolt2003-06-01~2005-04-01 |
01550-0820B-000 |
from US $0.91 |
||
|
30
|
30
01550-0820A-000 BoltBolt, funnel bracket 2003-06-01~2005-04-01 |
01550-0820A-000 |
from US $1.12 |
||
|
31
|
31
11180-85FB2-000 COVER,IGN COIL,R2003-06-01~2005-04-01 |
11180-85FB2-000 |
from US $11.77 |
||
|
32
|
32
11190-85FB1-000 COVER,IGN COIL,L2003-06-01~2005-04-01 |
11190-85FB1-000 |
from US $17.93 |
||
|
33
|
33
09125-06105-000 SCREW(6X20)2003-06-01~2005-04-01 |
09125-06105-000 |
from US $1.60 |
||
