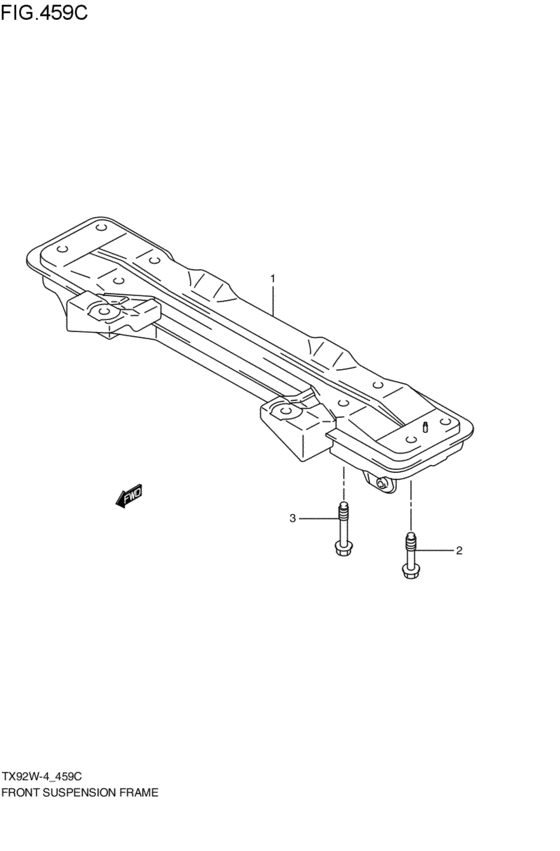

front suspension frame (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45800-54J00-000
FRAME ASSYFR SPNSN
2003-06-01~2005-04-01 |
45800-54J00-000 |
— | ||
| replacement | |||||
|
1
|
1
45800-54J01-000 FRAME,FR SUSPENSION2003-06-01~2005-04-01 |
45800-54J01-000 |
US $276.71 |
||
|
2
|
2
09103-12033-000 BOLT(12X84)2003-06-01~2005-04-01 |
09103-12033-000 |
from US $5.49 |
||
|
3
|
3
09103-12015-000 BOLT(12X105)Shaft,rear cushion 2003-06-01~2005-04-01 |
09103-12015-000 |
from US $2.90 |
||
