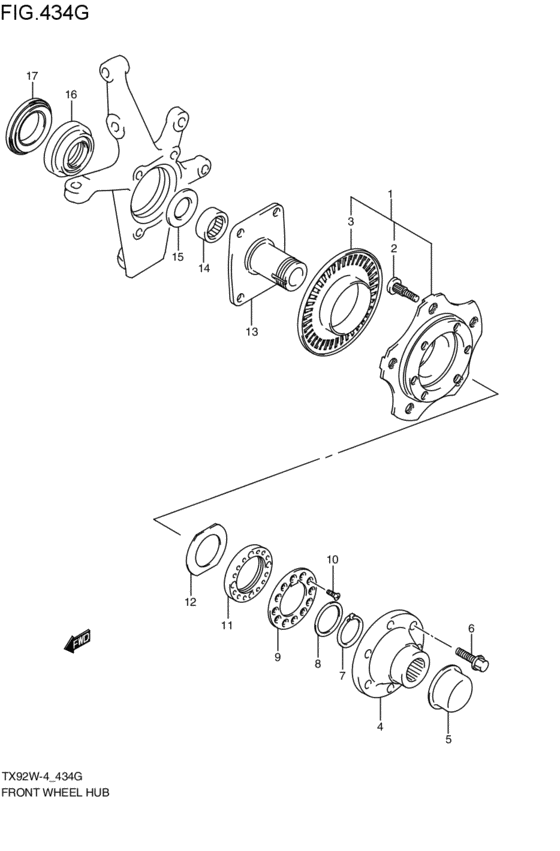

front wheel hub (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43401-65D10-000 HUB ASSY,FR WHL2003-06-01~2005-04-01 |
43401-65D10-000 |
from US $339.86 |
||
|
2
|
2
09119-12012-000 BOLT(12X38)2003-06-01~2005-04-01 |
09119-12012-000 |
from US $1.13 |
||
|
3
|
3
56411-65D00-000 RING,FR WHEEL SENSOR2003-06-01~2005-04-01 |
56411-65D00-000 |
from US $35.44 |
||
|
4
|
4
43471-80001-000 FLANGE,FR AXLE SHAFT DRIVE2003-06-01~2005-04-01 |
43471-80001-000 |
from US $88.88 |
||
|
5
|
5
43241-80001-000 CAP,FR AXLE2003-06-01~2005-04-01 |
43241-80001-000 |
from US $6.82 |
||
|
6
|
6
43811-65D00-000 BOLT,DRIVE FLANGE2003-06-01~2005-04-01 |
43811-65D00-000 |
from US $4.70 |
||
|
7
|
7
09380-26004-000 CIRCLIP2003-06-01~2005-04-01 |
09380-26004-000 |
from US $1.92 |
||
| replacement | |||||
|
7
|
7
94412-31J01-YMC Cowling,body Lower2003-06-01~2005-04-01 |
94412-31J01-YMC |
US $172.48 |
||
|
8
|
8
44182-60A01-000 WASHER,FR SPINDLE THRUST2003-06-01~2005-04-01 |
44182-60A01-000 |
from US $2.56 |
||
|
9
|
9
43466-60A00-000 WASHER,FR WHEEL BRG LOCK2003-06-01~2005-04-01 |
43466-60A00-000 |
from US $15.52 |
||
|
10
|
10
02122-04083-000
SCREW
2003-06-01~2005-04-01 |
02122-04083-000 |
— | ||
| replacement | |||||
|
10
|
10
02122-0408A-000 SCREW2003-06-01~2005-04-01 |
02122-0408A-000 |
from US $0.76 |
||
|
11
|
11
43461-54J00-000 NUT,FR WHL BEARING LOCK2003-06-01~2005-04-01 |
43461-54J00-000 |
from US $41.76 |
||
|
12
|
12
43465-60A00-000 WASHER,FR WHEEL BRG2003-06-01~2005-04-01 |
43465-60A00-000 |
from US $1.92 |
||
|
13
|
13
43441-60A20-000 SPINDLE,FR WHEEL2003-06-01~2005-04-01 |
43441-60A20-000 |
from US $159.66 |
||
|
14
|
14
09263-28030-000 BEARING(28X35X16)2003-06-01~2005-04-01 |
09263-28030-000 |
from US $20.34 |
||
|
15
|
15
44183-60A00-000 WASHER,FR DRIVESHAFT THRUST2003-06-01~2005-04-01 |
44183-60A00-000 |
from US $8.17 |
||
|
16
|
16
09289-48004-000 SEAL,OIL(48X70X17)2003-06-01~2005-04-01 |
09289-48004-000 |
from US $15.66 |
||
|
17
|
17
09286-64001-000 SEAL,OIL(64X76X7)2003-06-01~2005-04-01 |
09286-64001-000 |
from US $14.13 |
||
