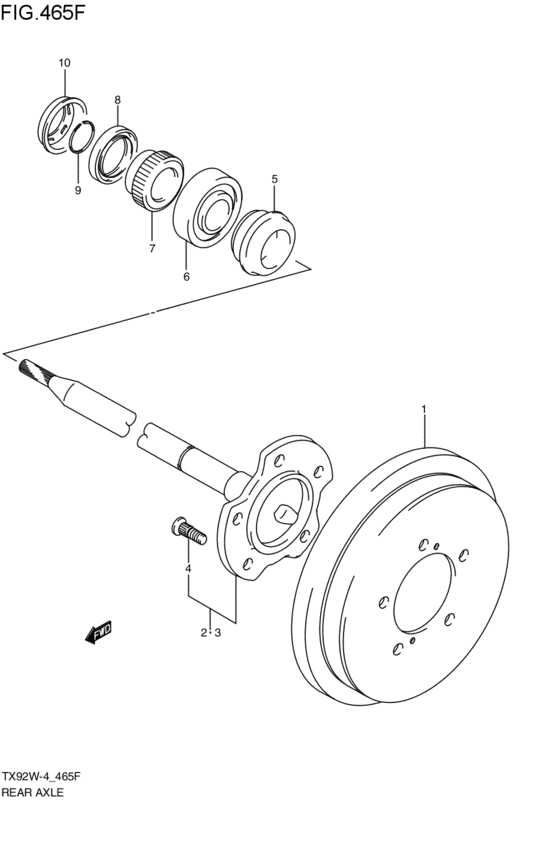

rear axle (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-52D00-000 DRUM,RR BRAKE2003-06-01~2005-04-01 |
43511-52D00-000 |
from US $198.09 |
||
|
2
|
2
44210-52811-000 SHAFT, REAR AXLE, RH2003-06-01~2005-04-01 |
44210-52811-000 |
from US $327.58 |
||
|
3
|
3
44220-52811-000 SHAFT, REAR AXLE, LH2003-06-01~2005-04-01 |
44220-52811-000 |
from US $393.68 |
||
|
4
|
4
09119-12012-000 BOLT(12X38)2003-06-01~2005-04-01 |
09119-12012-000 |
from US $1.71 |
||
|
5
|
5
43594-52D00-000 PLATE,DEFLECTOR,DUST2003-06-01~2005-04-01 |
43594-52D00-000 |
from US $18.79 |
||
|
6
|
6
43591-54J00-000
BEARINGREAR WHEEL HUB
2003-06-01~2005-04-01 |
43591-54J00-000 |
— | ||
| replacement | |||||
|
6
|
6
43591-52D00-000 BEARING,RR WHEEL2003-06-01~2005-04-01 |
43591-52D00-000 |
from US $160 |
||
|
7
|
7
43485-52D50-000 RING,RR WHEEL BRG RETAINER2003-06-01~2005-04-01 |
43485-52D50-000 |
from US $49.50 |
||
|
8
|
8
43592-52D00-000 SEAL,RR SHAFT OIL INNER2003-06-01~2005-04-01 |
43592-52D00-000 |
from US $15.66 |
||
|
9
|
9
43596-52D00-000 RING,RETAINING CLIP2003-06-01~2005-04-01 |
43596-52D00-000 |
from US $1.60 |
||
|
10
|
10
43588-52D00-000 PROTECTOR,OIL SEAL2003-06-01~2005-04-01 |
43588-52D00-000 |
from US $1.92 |
||
