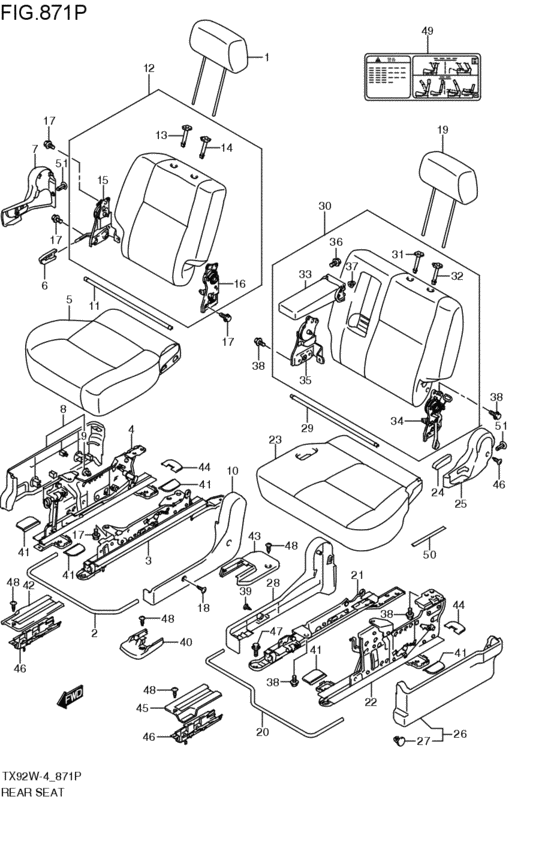

rear seat (2003-06-01~2005-04-01) Diagram Suzuki ESCUDO
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- H27A
- deice
- NDEICE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
86401-55G80-R9F
ヘッドレストレイントアッシ(グレー)
グレ-; 2003-06-01~2005-04-01 |
86401-55G80-R9F |
— | ||
| replacement | |||||
|
1
|
1
86401-55G81-R9F
HEADRESTRAINT ASSY
グレ-; 2003-06-01~2005-04-01 |
86401-55G81-R9F |
— | ||
|
1
|
1
86401-55G80-R9G
ヘッドレストレイントアッシ(ベージュ)
ベ-ジユ; 2003-06-01~2005-04-01 |
86401-55G80-R9G |
— | ||
| replacement | |||||
|
1
|
1
86401-55G81-R9G
HEADRESTRAINT ASSY
ベ-ジユ; 2003-06-01~2005-04-01 |
86401-55G81-R9G |
— | ||
|
2
|
2
86781-52DA0-000
HANDLE,RR ADJUSTER,R
2003-06-01~2005-04-01 |
86781-52DA0-000 |
— | ||
|
3
|
3
86810-53JA0-000
Adjuster assy,rr inside,r
2003-06-01~2005-04-01 |
86810-53JA0-000 |
— | ||
|
4
|
4
86830-53JA0-R8H
ADJUSTER ASSY,OUTSIDE,R
ベ-ジユ; 2003-06-01~2003-12-01 |
86830-53JA0-R8H |
— | ||
|
4
|
4
86830-53JA0-R8J
Adjuster assy,outside,r(gray)
グレ-; 2003-06-01~2003-12-01 |
86830-53JA0-R8J |
— | ||
|
4
|
4
86830-53JA1-R8H
ADJUSTER ASSY,OUTSIDE,R
ベージュ; 2004-01-01~2005-04-01 |
86830-53JA1-R8H |
— | ||
|
4
|
4
86830-53JA1-R8J
ADJUSTER ASSY,OUTSIDE,R
グレー; 2004-01-01~2005-04-01 |
86830-53JA1-R8J |
— | ||
|
5
|
5
87101-53J00-BZC
クッションアッシ,リヤライト(グレー)
グレー; 2003-06-01~2005-04-01 |
87101-53J00-BZC |
— | ||
|
5
|
5
87101-53J00-KK4
クッションアッシ,リヤ,ライト(ベージュ)
ベージュ; 2003-06-01~2005-04-01 |
87101-53J00-KK4 |
— | ||
|
6
|
6
85211-75H00-R8H
KNOB,RECL,R
ベ-ジユ; 2003-06-01~2005-04-01 |
85211-75H00-R8H |
— | ||
|
6
|
6
85211-75H00-R8J KNOB,RECL,Rグレ-; 2003-06-01~2005-04-01 |
85211-75H00-R8J |
US $4.67 |
||
|
7
|
7
87220-53JA0-R8H COVER,RCLNG OUTSIDE,Rベ-ジユ; 2003-06-01~2005-04-01 |
87220-53JA0-R8H |
US $12.88 |
||
|
7
|
7
87220-53JA0-R8J
COVER,RCLNG OUTSIDE,R
グレ-; 2003-06-01~2005-04-01 |
87220-53JA0-R8J |
— | ||
|
8
|
8
87270-53JA0-R8H
COVER,RR ADJ OUT LWR,R
ベ-ジユ; 2003-06-01~2005-04-01 |
87270-53JA0-R8H |
— | ||
|
8
|
8
87270-53JA0-R8J
COVER,RR ADJ OUT LWR,R
グレ-; 2003-06-01~2005-04-01 |
87270-53JA0-R8J |
— | ||
|
9
|
9
85225-74G00-R8H
CLIP,
ベージュ; 2003-06-01~2005-04-01 |
85225-74G00-R8H |
— | ||
|
9
|
9
85225-74G00-R8J
CLIP,
グレー; 2003-06-01~2005-04-01 |
85225-74G00-R8J |
— | ||
|
10
|
10
87240-53JA0-R8H
COVER,RCLNG INSIDE,R
ベ-ジユ; 2003-06-01~2005-04-01 |
87240-53JA0-R8H |
— | ||
|
10
|
10
87240-53JA0-R8J
COVER,RCLNG INSIDE,R
グレ-; 2003-06-01~2005-04-01 |
87240-53JA0-R8J |
— | ||
|
11
|
11
87250-53JA0-000
Rod,rr rclng,r
2003-06-01~2005-04-01 |
87250-53JA0-000 |
— | ||
|
12
|
12
87301-53J00-KK2
バックアッシ,リヤ,ライト(グレー)
グレー; 2003-06-01~2005-04-01 |
87301-53J00-KK2 |
— | ||
| replacement | |||||
|
12
|
12
87301-53J00-BZC
バックアッシ,リヤ,ライト(グレー)
グレー; 2003-06-01~2005-04-01 |
87301-53J00-BZC |
— | ||
|
12
|
12
87301-53J00-KK4
バックアッシ,リヤ,ライト(ベージュ)
ベージュ; 2003-06-01~2005-04-01 |
87301-53J00-KK4 |
— | ||
|
13
|
13
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレー; 2004-09-01~2005-04-01 |
85341-81A00-P4Z |
from US $3.49 |
||
|
13
|
13
85341-81A00-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2003-06-01~2005-04-01 |
85341-81A00-R8H |
US $6.04 |
||
|
13
|
13
85341-81A00-R8J GUIDE,HEADRESTRAINTグレ-; 2003-06-01~2004-09-01 |
85341-81A00-R8J |
US $6.04 |
||
|
14
|
14
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレー; 2004-09-01~2005-04-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
14
|
14
85840-81A10-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2003-06-01~2005-04-01 |
85840-81A10-R8H |
US $11.63 |
||
|
14
|
14
85840-81A10-R8J
GUIDE,HEADRESTRAINT
グレ-; 2003-06-01~2004-09-01 |
85840-81A10-R8J |
— | ||
|
15
|
15
87210-53JA1-000
RECLINING ASSY,RR OUT,R
2003-06-01~2005-04-01 |
87210-53JA1-000 |
— | ||
|
16
|
16
87230-53JA1-000
Reclining assy,rr inside,r
2003-06-01~2005-04-01 |
87230-53JA1-000 |
— | ||
|
17
|
17
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
17
|
17
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
18
|
18
03242-05103-000
Screw
2003-06-01~2005-04-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
18
|
18
03242-0510B-000 SCREW2003-06-01~2005-04-01 |
03242-0510B-000 |
US $0.76 |
||
|
18
|
18
03241-0510A-000 SCREW2003-06-01~2005-04-01 |
03241-0510A-000 |
from US $0.80 |
||
|
19
|
19
86401-55G80-R9F
ヘッドレストレイントアッシ(グレー)
グレ-; 2003-06-01~2005-04-01 |
86401-55G80-R9F |
— | ||
| replacement | |||||
|
19
|
19
86401-55G81-R9F
HEADRESTRAINT ASSY
グレ-; 2003-06-01~2005-04-01 |
86401-55G81-R9F |
— | ||
|
19
|
19
86401-55G80-R9G
ヘッドレストレイントアッシ(ベージュ)
ベ-ジユ; 2003-06-01~2005-04-01 |
86401-55G80-R9G |
— | ||
| replacement | |||||
|
19
|
19
86401-55G81-R9G
HEADRESTRAINT ASSY
ベ-ジユ; 2003-06-01~2005-04-01 |
86401-55G81-R9G |
— | ||
|
20
|
20
86791-52DA0-000
HANDLE,RR ADJUSTER,L
2003-06-01~2005-04-01 |
86791-52DA0-000 |
— | ||
|
21
|
21
86860-53JA0-000
ADJUSTER ASSY,RR INSIDE,L
2003-06-01~2005-04-01 |
86860-53JA0-000 |
— | ||
|
22
|
22
86880-53JA0-R8H
ADJUSTER ASSY,OUTSIDE,L
ベ-ジユ; 2003-06-01~2005-04-01 |
86880-53JA0-R8H |
— | ||
|
22
|
22
86880-53JA0-R8J
Adjuster assy,outside,l(gray)
グレ-; 2003-06-01~2003-12-01 |
86880-53JA0-R8J |
— | ||
|
22
|
22
86880-53JA1-R8J
ADJUSTER ASSY,OUTSIDE,L
グレー; 2004-01-01~2005-04-01 |
86880-53JA1-R8J |
— | ||
|
23
|
23
87102-53J00-KK2
クッションアッシ,リヤ,レフト(グレー)
グレー; 2003-06-01~2005-04-01 |
87102-53J00-KK2 |
— | ||
|
23
|
23
87102-53J00-KK4
クッションアッシ,リヤ,レフト(ベージュ)
ベージュ; 2003-06-01~2005-04-01 |
87102-53J00-KK4 |
— | ||
|
24
|
24
85711-75H00-R8H
KNOB,RECK L
ベ-ジユ; 2003-06-01~2005-04-01 |
85711-75H00-R8H |
— | ||
|
24
|
24
85711-75H00-R8J KNOB,RECK Lグレ-; 2003-06-01~2005-04-01 |
85711-75H00-R8J |
US $4.67 |
||
|
25
|
25
87720-53JA0-R8H
COVER,RCLNG OUTSIDE,L
ベ-ジユ; 2003-06-01~2005-04-01 |
87720-53JA0-R8H |
— | ||
|
25
|
25
87720-53JA0-R8J COVER,RR RCLNG OUT,Lグレ-; 2003-06-01~2005-04-01 |
87720-53JA0-R8J |
from US $8.53 |
||
|
26
|
26
87770-53JA0-R8H
COVER,RR ADJ OUT LWR,L
ベ-ジユ; 2003-06-01~2005-04-01 |
87770-53JA0-R8H |
— | ||
|
26
|
26
87770-53JA0-R8J COVER,RR ADJ OUT LWR,Lグレ-; 2003-06-01~2005-04-01 |
87770-53JA0-R8J |
US $37.17 |
||
|
27
|
27
85225-74G00-R8H
CLIP,
ベージュ; 2003-06-01~2005-04-01 |
85225-74G00-R8H |
— | ||
|
27
|
27
85225-74G00-R8J
CLIP,
グレー; 2003-06-01~2005-04-01 |
85225-74G00-R8J |
— | ||
|
28
|
28
87740-53JA0-R8H
COVER,RR RCLNG INSIDE,L
ベ-ジユ; 2003-06-01~2005-04-01 |
87740-53JA0-R8H |
— | ||
|
28
|
28
87740-53JA0-R8J
Cover,rr rclng inside,l(gray)
グレ-; 2003-06-01~2005-04-01 |
87740-53JA0-R8J |
— | ||
|
29
|
29
87750-53JA0-000
ROD,RR RCLNG,L
2003-06-01~2005-04-01 |
87750-53JA0-000 |
— | ||
|
30
|
30
87302-53J00-KK2
バックアッシ,リヤ,レフト(グレー)
グレー; 2003-06-01~2005-04-01 |
87302-53J00-KK2 |
— | ||
|
30
|
30
87302-53J00-KK4
バックアッシ,リヤ,レフト(ベージュ)
ベージュ; 2003-06-01~2005-04-01 |
87302-53J00-KK4 |
— | ||
|
31
|
31
85341-81A00-P4Z GUIDE,HEADRESTRAINTグレー; 2004-09-01~2005-04-01 |
85341-81A00-P4Z |
from US $3.49 |
||
|
31
|
31
85341-81A00-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2003-06-01~2005-04-01 |
85341-81A00-R8H |
US $6.04 |
||
|
31
|
31
85341-81A00-R8J GUIDE,HEADRESTRAINTグレ-; 2003-06-01~2004-09-01 |
85341-81A00-R8J |
US $6.04 |
||
|
32
|
32
85840-81A10-P4Z GUIDE,HEADRESTRAINTグレー; 2004-09-01~2005-04-01 |
85840-81A10-P4Z |
US $11.63 |
||
|
32
|
32
85840-81A10-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2003-06-01~2005-04-01 |
85840-81A10-R8H |
US $11.63 |
||
|
32
|
32
85840-81A10-R8J
GUIDE,HEADRESTRAINT
グレ-; 2003-06-01~2004-09-01 |
85840-81A10-R8J |
— | ||
|
33
|
33
87501-53JA0-R9F
Armrest assy,rr(gray)
グレ-; 2003-06-01~2005-04-01 |
87501-53JA0-R9F |
— | ||
|
33
|
33
87501-53JA0-R9G
ARMREST ASSY,RR
ベ-ジユ; 2003-06-01~2005-04-01 |
87501-53JA0-R9G |
— | ||
|
34
|
34
87710-53JA1-000 RECLINING ASSY,RR OUT,L2003-06-01~2005-04-01 |
87710-53JA1-000 |
US $169.65 |
||
|
35
|
35
87730-53JA1-000 RECLINING ASSY,RR INS,L2003-06-01~2005-04-01 |
87730-53JA1-000 |
US $146.83 |
||
|
36
|
36
09103-08242-000 BOLT(8X20)2003-06-01~2005-04-01 |
09103-08242-000 |
from US $1.51 |
||
|
37
|
37
08313-20083-000
Nut
2003-06-01~2005-04-01 |
08313-20083-000 |
— | ||
| replacements | |||||
|
37
|
37
08313-2008B-000 NUT2003-06-01~2005-04-01 |
08313-2008B-000 |
from US $3.94 |
||
|
37
|
37
08313-2008A-000 NUT2003-06-01~2005-04-01 |
08313-2008A-000 |
from US $0.91 |
||
|
38
|
38
01550-10203-000
Bolt
2003-06-01~2005-04-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
38
|
38
01550-1020A-000 BoltBolt, bal sprocket 2003-06-01~2005-04-01 |
01550-1020A-000 |
from US $0.96 |
||
|
39
|
39
03242-05103-000
Screw
2003-06-01~2005-04-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
39
|
39
03242-0510B-000 SCREW2003-06-01~2005-04-01 |
03242-0510B-000 |
US $0.76 |
||
|
39
|
39
03241-0510A-000 SCREW2003-06-01~2005-04-01 |
03241-0510A-000 |
from US $0.80 |
||
|
40
|
40
87491-52DA1-R8H COVER,RR ADJ INSIDE,FRベ-ジユ; 2003-06-01~2005-04-01 |
87491-52DA1-R8H |
US $7.99 |
||
|
40
|
40
87491-52DA1-R8J COVER,RR ADJ INSIDE,FRグレ-; 2003-06-01~2005-04-01 |
87491-52DA1-R8J |
from US $5.65 |
||
|
41
|
41
87492-52DA0-R8H COVER,RR ADJ OUTSIDEベ-ジユ; 2003-06-01~2005-04-01 |
87492-52DA0-R8H |
US $6.59 |
||
|
41
|
41
87492-52DA0-R8J COVER,RR ADJ OUTSIDEグレ-; 2003-06-01~2005-04-01 |
87492-52DA0-R8J |
US $7.25 |
||
|
42
|
42
87493-52DA1-R8H COVER,ADJ EXTENSION,Rベ-ジユ; 2003-06-01~2005-04-01 |
87493-52DA1-R8H |
from US $15.77 |
||
|
42
|
42
87493-52DA1-R8J COVER,RR ADJ EXTENSION,Rグレ-; 2003-06-01~2005-04-01 |
87493-52DA1-R8J |
from US $15.14 |
||
|
43
|
43
87495-53JA1-R8H
COVER,ADJ INSIDE,RR
ベ-ジユ; 2003-06-01~2005-04-01 |
87495-53JA1-R8H |
— | ||
|
43
|
43
87495-53JA1-R8J COVER,ADJ INSIDE,RRグレ-; 2003-06-01~2005-04-01 |
87495-53JA1-R8J |
US $13.43 |
||
|
44
|
44
87496-53JA0-R8H
COVER,RR ADJ OUTSIDE RR
ベ-ジユ; 2003-06-01~2005-04-01 |
87496-53JA0-R8H |
— | ||
|
44
|
44
87496-53JA0-R8J COVER,RR ADJ OUTSIDE RRグレ-; 2003-06-01~2005-04-01 |
87496-53JA0-R8J |
US $5.78 |
||
|
45
|
45
87993-52DA1-R8H
COVER,ADJ EXTENSION,L
ベ-ジユ; 2003-06-01~2005-04-01 |
87993-52DA1-R8H |
— | ||
|
45
|
45
87993-52DA1-R8J COVER,ADJ EXTENSION,Lグレ-; 2003-06-01~2005-04-01 |
87993-52DA1-R8J |
from US $18.92 |
||
|
46
|
46
87494-52DA0-000 BRACKET,RR ADJ EXTENSION2003-06-01~2005-04-01 |
87494-52DA0-000 |
US $15.31 |
||
|
47
|
47
01551-10253-000
Bolt
2003-06-01~2005-04-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
47
|
47
01551-1025A-000 Bolt2003-06-01~2005-04-01 |
01551-1025A-000 |
US $1.12 |
||
|
48
|
48
03242-05103-000
Screw
2003-06-01~2005-04-01 |
03242-05103-000 |
— | ||
| replacements | |||||
|
48
|
48
03242-0510B-000 SCREW2003-06-01~2005-04-01 |
03242-0510B-000 |
US $0.76 |
||
|
48
|
48
03241-0510A-000 SCREW2003-06-01~2005-04-01 |
03241-0510A-000 |
from US $0.80 |
||
|
49
|
49
86720-53JC0-000
ラベル,シートウォーニング
2003-06-01~2005-04-01 |
86720-53JC0-000 |
— | ||
|
50
|
50
85198-70E00-000 TIE2003-06-01~2005-04-01 |
85198-70E00-000 |
US $3.02 |
||
|
51
|
51
85891-76FA0-R8H
CLIP,
ベ-ジユ; 2003-06-01~2005-04-01 |
85891-76FA0-R8H |
— | ||
|
51
|
51
85891-76FA0-R8J CLIP,グレ-; 2003-06-01~2005-04-01 |
85891-76FA0-R8J |
US $3.13 |
||
