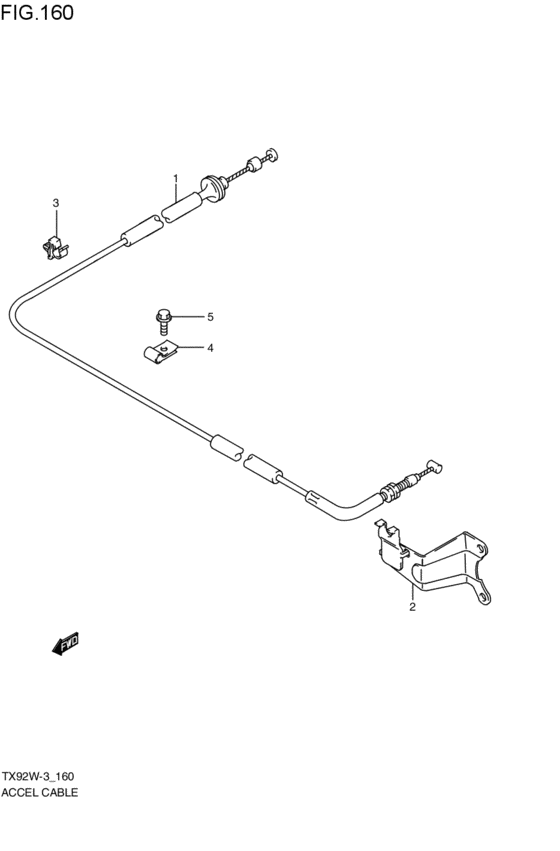

accelerator cable (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15910-67D40-000 CABLE ASSY,ACCEL2002-11-01~2003-05-01 |
15910-67D40-000 |
from US $48.76 |
||
|
2
|
2
15919-52D00-000
GUIDE,ACCEL CABLE
2002-11-01~2003-05-01 |
15919-52D00-000 |
— | ||
|
3
|
3
09403-05313-000
Clip, band
2002-11-01~2003-05-01 |
09403-05313-000 |
— | ||
| replacement | |||||
|
3
|
3
18214-75F00-000 CLAMP2002-11-01~2003-05-01 |
18214-75F00-000 |
from US $1.82 |
||
|
4
|
4
09403-08404-000
CLAMP
2002-11-01~2003-05-01 |
09403-08404-000 |
— | ||
| replacement | |||||
|
4
|
4
09403-08417-000 Clamp,rsvr Hose2002-11-01~2003-05-01 |
09403-08417-000 |
from US $3.91 |
||
|
5
|
5
01550-06123-000
Bolt
2002-11-01~2003-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0612B-000 BOLTBolt, clamp 2002-11-01~2003-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
5
|
5
01550-0612A-000 BOLT2002-11-01~2003-05-01 |
01550-0612A-000 |
from US $0.76 |
||
