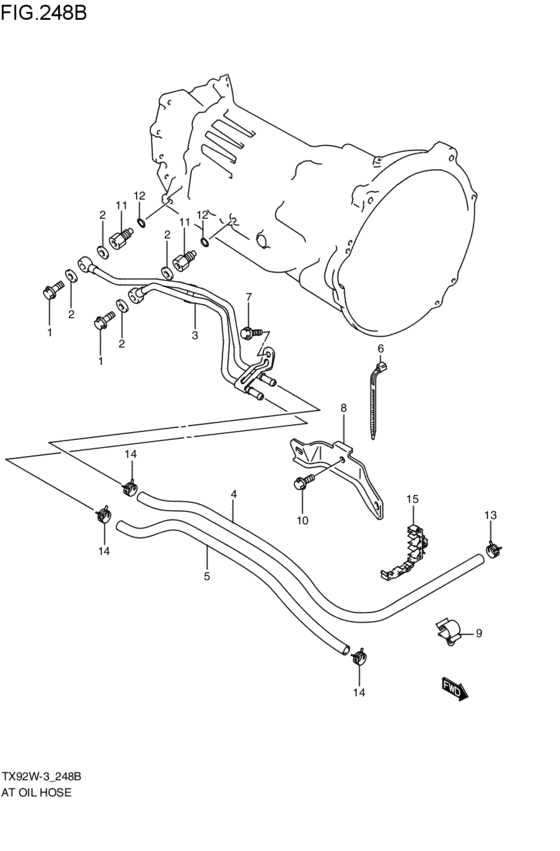

at - oil hose (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-14012-000 BOLT,14X27Bolt, union (14x27) 2002-11-01~2003-05-01 |
09360-14012-000 |
from US $6.88 |
||
|
2
|
2
22913-65D30-000
Gasket
2002-11-01~2003-05-01 |
22913-65D30-000 |
— | ||
| replacements | |||||
|
2
|
2
22913-59J10-000 GASKET,14X20X0.92002-11-01~2003-05-01 |
22913-59J10-000 |
from US $1.49 |
||
|
2
|
2
22910-65810-000 BOLT&GASKET SET2002-11-01~2003-05-01 |
22910-65810-000 |
from US $9.38 |
||
|
3
|
3
22910-52D10-000 PIPE,OIL2002-11-01~2003-05-01 |
22910-52D10-000 |
from US $73.71 |
||
|
4
|
4
22931-52D10-000 HOSE,OIL2002-11-01~2003-05-01 |
22931-52D10-000 |
from US $29.70 |
||
|
5
|
5
22931-52D10-000 HOSE,OIL2002-11-01~2003-05-01 |
22931-52D10-000 |
from US $29.70 |
||
|
6
|
6
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap 2002-11-01~2003-05-01 |
09407-14403-000 |
from US $2.08 |
||
|
7
|
7
01550-06123-000
Bolt
2002-11-01~2003-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0612B-000 BOLTBolt, clamp 2002-11-01~2003-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
7
|
7
01550-0612A-000 BOLT2002-11-01~2003-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
8
|
8
22935-85FA1-000
BRACKET,OIL HOSE CLAMP,NO.1
2002-11-01~2003-05-01 |
22935-85FA1-000 |
— | ||
|
9
|
9
09403-14315-000 CLAMPClamp, harness 2002-11-01~2003-05-01 |
09403-14315-000 |
US $17.70 |
||
|
10
|
10
01550-08163-000
Bolt, holder
2002-11-01~2003-05-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0816B-000 BOLT2002-11-01~2003-05-01 |
01550-0816B-000 |
from US $0.91 |
||
|
10
|
10
01550-0816A-000 BOLTBolt, rear 2002-11-01~2003-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
11
|
11
24743-57B10-000 UNION,OIL2002-11-01~2003-05-01 |
24743-57B10-000 |
US $46.36 |
||
|
12
|
12
29737-57B00-000 O-RING,OIL PIPE2002-11-01~2003-05-01 |
29737-57B00-000 |
from US $2.28 |
||
|
13
|
13
09401-15408-000 CLIPClip, 2nd air cleaner hose no.2 2002-11-01~2003-05-01 |
09401-15408-000 |
from US $3.26 |
||
|
14
|
14
09401-15410-000 CLIP2002-11-01~2003-05-01 |
09401-15410-000 |
from US $2.24 |
||
|
15
|
15
09403-14313-000 CLAMP2002-11-01~2003-05-01 |
09403-14313-000 |
US $2.40 |
||
