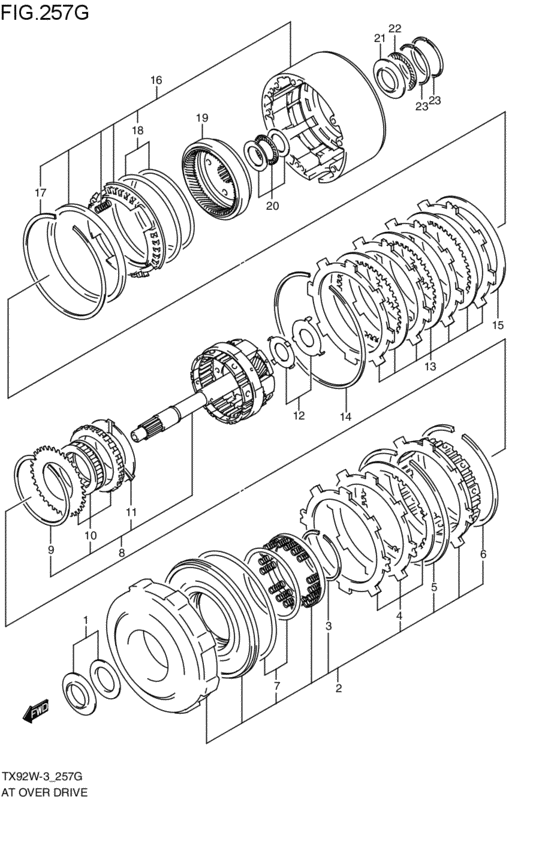

at - overdrive (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24963-57BT0-000 BEARING SET,THRUST NO.52002-11-01~2003-05-01 |
24963-57BT0-000 |
from US $54.34 |
||
|
2
|
2
24100-77ED0-000
クラッチアッシ,オーバドライブ
2002-11-01~2003-05-01 |
24100-77ED0-000 |
— | ||
| replacement | |||||
|
2
|
2
24100-77ED1-000 CLUTCH ASSY,OVER DRIVE2002-11-01~2003-05-01 |
24100-77ED1-000 |
US $1,161.60 |
||
|
3
|
3
28949-57B00-000 RING,SNAP B1 BRAKE2002-11-01~2003-05-01 |
28949-57B00-000 |
from US $7.20 |
||
|
4
|
4
24111-85FT0-000 DISC SET,O/D CLUTCH2002-11-01~2003-05-01 |
24111-85FT0-000 |
US $207.92 |
||
|
5
|
5
24191-57B00-000 RING,RETAINING O/D CL2002-11-01~2003-05-01 |
24191-57B00-000 |
from US $8.57 |
||
|
6
|
6
24192-57B00-000 RING,RETAINING BRAKE HUB2002-11-01~2003-05-01 |
24192-57B00-000 |
US $17.70 |
||
|
7
|
7
26622-65DT0-000 O-RING SET,CLUTCH2002-11-01~2003-05-01 |
26622-65DT0-000 |
from US $19.89 |
||
|
8
|
8
24140-77ED0-000
ギヤアッシ,オーバードライブ
2002-11-01~2003-05-01 |
24140-77ED0-000 |
— | ||
| replacement | |||||
|
8
|
8
24140-77ED1-000 GEAR ASSY,OVER DRIVE2002-11-01~2003-05-01 |
24140-77ED1-000 |
from US $1,263.60 |
||
|
9
|
9
24193-57B00-000 RING,RETAINING O/D PLNTY2002-11-01~2003-05-01 |
24193-57B00-000 |
US $9.09 |
||
|
10
|
10
26850-77ET0-000 CLUTCH ASSY,O/D ONE WAY2002-11-01~2003-05-01 |
26850-77ET0-000 |
US $349.60 |
||
|
11
|
11
29949-77ED0-000 WASHER,THRUST O/D PLNTY2002-11-01~2003-05-01 |
29949-77ED0-000 |
US $13.28 |
||
|
12
|
12
24163-57BT0-000
ワッシャセット,スラストプラネタリ
2002-11-01~2003-05-01 |
24163-57BT0-000 |
— | ||
| replacement | |||||
|
12
|
12
24163-57BT1-000 WASHER SET,THRUST PLNTY2002-11-01~2003-05-01 |
24163-57BT1-000 |
from US $42.80 |
||
|
13
|
13
24114-65DU0-000 DISC SET,O/D BRAKE2002-11-01~2003-05-01 |
24114-65DU0-000 |
from US $394.83 |
||
|
14
|
14
24194-57B00-000 RING,RETAINING O/D BRAKE FR2002-11-01~2003-05-01 |
24194-57B00-000 |
from US $13.70 |
||
|
15
|
15
24118-57B00-000 PLATE,CUSHION O/D BRAKE2002-11-01~2003-05-01 |
24118-57B00-000 |
US $57.04 |
||
|
16
|
16
26310-67DT0-000
ピストンアッシ,O/Dブレーキ
2002-11-01~2003-05-01 |
26310-67DT0-000 |
— | ||
| replacement | |||||
|
16
|
16
26310-67DT1-000
PISTON ASSY,O/D BRAKE
2002-11-01~2003-05-01 |
26310-67DT1-000 |
— | ||
|
17
|
17
24194-57B00-000 RING,RETAINING O/D BRAKE FR2002-11-01~2003-05-01 |
24194-57B00-000 |
from US $13.70 |
||
|
18
|
18
29745-57BT0-000 O-RING SET,O/D BRAKE PISTON2002-11-01~2003-05-01 |
29745-57BT0-000 |
from US $26.89 |
||
|
19
|
19
24142-57B00-000 GEAR,O/D PLNTY RING2002-11-01~2003-05-01 |
24142-57B00-000 |
from US $341.62 |
||
|
20
|
20
24961-57BT0-000 BEARING SET,THRUST NO.32002-11-01~2003-05-01 |
24961-57BT0-000 |
US $52.26 |
||
|
21
|
21
24161-65D10-000 RACE,THRUST BRG O/D CASE2002-11-01~2003-05-01 |
24161-65D10-000 |
US $16.89 |
||
|
22
|
22
29691-65D10-000 BEARING,THRUST O/D CASE2002-11-01~2003-05-01 |
29691-65D10-000 |
US $32.02 |
||
|
23
|
23
29797-65D10-000 RING,THRUST BRG O/D CASE2002-11-01~2003-05-01 |
29797-65D10-000 |
from US $16.83 |
||
