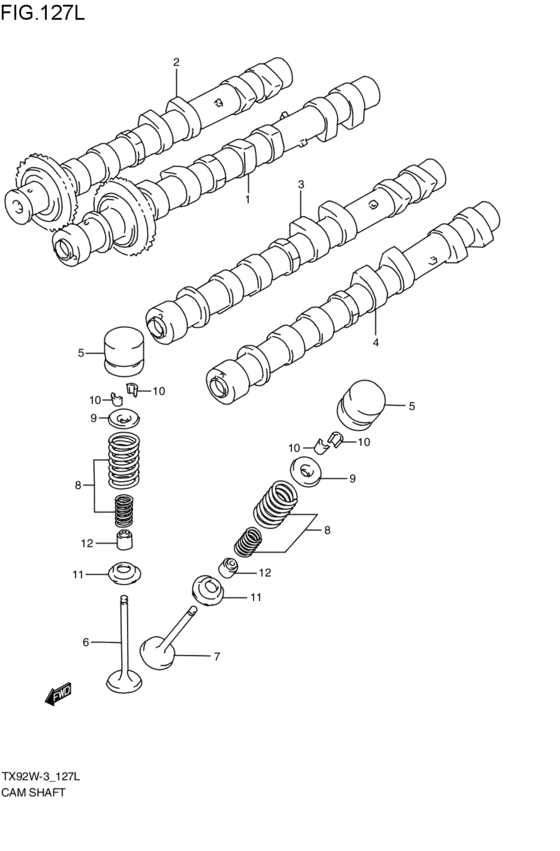

camshaft / valve (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12710-52D00-000
カムシャフト,インテーク,ライト
2002-11-01~2003-05-01 |
12710-52D00-000 |
— | ||
| replacement | |||||
|
1
|
1
12710-52D01-000 CAMSHAFT,INTK,R2002-11-01~2003-05-01 |
12710-52D01-000 |
US $457.60 |
||
|
2
|
2
12720-85FA2-000
カムシャフト,エキゾースト,ライト
2002-11-01~2003-05-01 |
12720-85FA2-000 |
— | ||
| replacement | |||||
|
2
|
2
12720-85FA3-000 CAMSHAFT,EXH,R2002-11-01~2003-05-01 |
12720-85FA3-000 |
US $929.60 |
||
|
3
|
3
12715-52D01-000 CAMSHAFT,INTK,L2002-11-01~2003-05-01 |
12715-52D01-000 |
US $312.80 |
||
|
4
|
4
12725-85FA2-000
カムシャフト,エキゾースト,レフト
2002-11-01~2003-05-01 |
12725-85FA2-000 |
— | ||
| replacement | |||||
|
4
|
4
12725-85FA3-000 CAMSHAFT,EXH,L2002-11-01~2003-05-01 |
12725-85FA3-000 |
US $397.76 |
||
|
5
|
5
12891-86521-000 ADJUSTER,HYDR VALVE LASH2002-11-01~2003-05-01 |
12891-86521-000 |
US $114.77 |
||
|
6
|
6
12911-86FA1-000
Valve,intake
2002-11-01~2003-05-01 |
12911-86FA1-000 |
— | ||
| replacement | |||||
|
6
|
6
12911-86FA2-000 Valve,intake2002-11-01~2003-05-01 |
12911-86FA2-000 |
from US $23.81 |
||
|
7
|
7
12915-86FA1-000 Valve,exhaust2002-11-01~2003-05-01 |
12915-86FA1-000 |
from US $43.56 |
||
|
8
|
8
12920-62G00-000 SPRING SET,VALVE2002-11-01~2003-05-01 |
12920-62G00-000 |
US $5.46 |
||
|
9
|
9
12931-62G10-000 RETAINER,VALVE SPRING2002-11-01~2003-05-01 |
12931-62G10-000 |
from US $4.53 |
||
|
10
|
10
12932-85FA0-000 COTTER,VALVE2002-11-01~2003-05-01 |
12932-85FA0-000 |
from US $1.60 |
||
|
11
|
11
12933-62G01-000 SEAT,VALVE SPRING2002-11-01~2003-05-01 |
12933-62G01-000 |
US $7.04 |
||
|
12
|
12
09289-06003-000 SEAL,OIL(6X12.8X10.2)Seal, valve strm 2002-11-01~2003-05-01 |
09289-06003-000 |
from US $4.32 |
||
