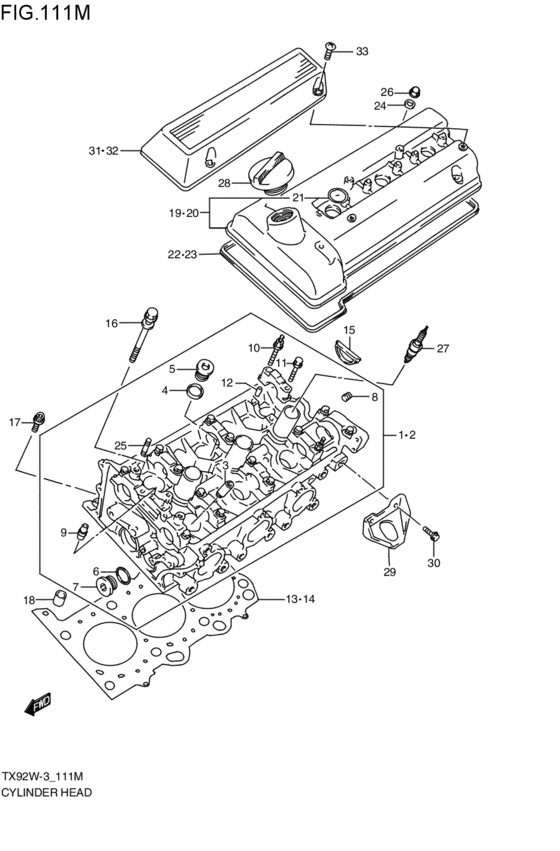

Cylinder head (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11101-86FA3-000
ヘッドアッシ,シリンダ,ライト
2002-11-01~2003-05-01 |
11101-86FA3-000 |
— | ||
| replacement | |||||
|
1
|
1
11101-86FA4-000
HEAD ASSY,CYLINDER,R
2002-11-01~2003-05-01 |
11101-86FA4-000 |
— | ||
|
2
|
2
11103-86FA3-000
ヘッドアッシ,シリンダ,レフト
2002-11-01~2003-05-01 |
11103-86FA3-000 |
— | ||
| replacement | |||||
|
2
|
2
11103-86FA4-000 HEAD ASSY,CYLINDER,L2002-11-01~2003-05-01 |
11103-86FA4-000 |
US $1,682.16 |
||
|
3
|
3
11115-85FA1-001 GUIDE,VALVE2002-11-01~2003-05-01 |
11115-85FA1-001 |
from US $17.73 |
||
|
4
|
4
11216-77E00-000 GASKET,M18 PLUG2002-11-01~2003-05-01 |
11216-77E00-000 |
from US $1.74 |
||
|
5
|
5
09248-18005-000 PLUGPlug, oil gallery 2002-11-01~2003-05-01 |
09248-18005-000 |
from US $10.15 |
||
| replacement | |||||
|
5
|
5
09248-18011-000 PLUG(18X8)Plug, oil gallery 2002-11-01~2003-05-01 |
09248-18011-000 |
from US $2.88 |
||
|
6
|
6
11217-85FA0-000 GASKET,M26 PLUG2002-11-01~2003-05-01 |
11217-85FA0-000 |
from US $1.91 |
||
|
7
|
7
09248-26001-000 PLUG,M262002-11-01~2003-05-01 |
09248-26001-000 |
from US $7.36 |
||
|
8
|
8
09246-05006-000 PLUG(1/8PT,H:5.5)2002-11-01~2003-05-01 |
09246-05006-000 |
from US $1.35 |
||
|
9
|
9
11130-85FA1-000 VALVE,OIL RELIEF2002-11-01~2003-05-01 |
11130-85FA1-000 |
from US $19.28 |
||
|
10
|
10
11148-85FA0-000 BOLT,CAMSHAFT HOUSING STUD2002-11-01~2003-05-01 |
11148-85FA0-000 |
from US $4.88 |
||
|
11
|
11
09103-06132-000 BOLT(6X41)2002-11-01~2003-05-01 |
09103-06132-000 |
from US $1.19 |
||
|
12
|
12
09206-08001-000 PIN(8X11)2002-11-01~2003-05-01 |
09206-08001-000 |
from US $1.06 |
||
|
13
|
13
11141-52D01-000 GASKET,CYL HEAD,R2002-11-01~2003-05-01 |
11141-52D01-000 |
from US $101.66 |
||
|
14
|
14
11142-52D01-000 GASKET,CYL HEAD,L2002-11-01~2003-05-01 |
11142-52D01-000 |
from US $98.75 |
||
|
15
|
15
11139-86500-000 SEAL,CYLINDER HEAD SIDE2002-11-01~2003-05-01 |
11139-86500-000 |
from US $1.82 |
||
|
16
|
16
11146-85FA1-000 BOLT,CYLINDER HEAD2002-11-01~2003-05-01 |
11146-85FA1-000 |
from US $6.50 |
||
|
17
|
17
07120-06253-000
Bolt, center
2002-11-01~2003-05-01 |
07120-06253-000 |
— | ||
| replacement | |||||
|
17
|
17
07120-0625A-000 BOLTBolt, cylinder head (l25) 2002-11-01~2003-05-01 |
07120-0625A-000 |
from US $0.91 |
||
|
18
|
18
09206-14004-000 PIN(14X11.4X23)2002-11-01~2003-05-01 |
09206-14004-000 |
from US $2.34 |
||
|
19
|
19
11170-85FA2-000
カバー,シリンダヘッド,ライト
2002-11-01~2003-05-01 |
11170-85FA2-000 |
— | ||
| replacement | |||||
|
19
|
19
11170-85FA3-000 COVER,CYLINDER HEAD,R2002-11-01~2003-05-01 |
11170-85FA3-000 |
US $446.40 |
||
|
20
|
20
11180-85FA2-000
カバー,シリンダヘッド,レフト
2002-11-01~2003-03-01 |
11180-85FA2-000 |
— | ||
| replacements | |||||
|
20
|
20
11180-85FC0-000 COVER,CYLINDER HEAD,L2002-11-01~2003-03-01 |
11180-85FC0-000 |
US $375.36 |
||
|
20
|
20
18118-65D00-000 VALVE,PCV2002-11-01~2003-03-01 |
18118-65D00-000 |
from US $32.47 |
||
|
20
|
20
11180-85FC0-000 COVER,CYLINDER HEAD,L2003-04-01~2003-05-01 |
11180-85FC0-000 |
US $375.36 |
||
|
21
|
21
11179-81402-000 O-RING2002-11-01~2003-05-01 |
11179-81402-000 |
from US $1.82 |
||
|
22
|
22
11176-85FA0-000 GASKET,CYL HEAD COVER,R2002-11-01~2003-05-01 |
11176-85FA0-000 |
from US $28.94 |
||
|
23
|
23
11186-85FA0-000 GASKET,CYL HEAD COVER,L2002-11-01~2003-05-01 |
11186-85FA0-000 |
from US $28.89 |
||
|
24
|
24
11188-85FA0-000 WASHER,CYL HEAD COVER SEAL2002-11-01~2003-05-01 |
11188-85FA0-000 |
from US $2.13 |
||
|
25
|
25
01421-06163-000
Bolt
2002-11-01~2003-05-01 |
01421-06163-000 |
— | ||
| replacement | |||||
|
25
|
25
01421-0616A-000 BOLT,STUD2002-11-01~2003-05-01 |
01421-0616A-000 |
from US $1.07 |
||
|
26
|
26
08313-20063-000
Nut
2002-11-01~2003-05-01 |
08313-20063-000 |
— | ||
| replacements | |||||
|
26
|
26
08313-2006B-000 NUT2002-11-01~2003-05-01 |
08313-2006B-000 |
from US $0.76 |
||
|
26
|
26
08313-2006A-000 NUT2002-11-01~2003-05-01 |
08313-2006A-000 |
from US $1.13 |
||
|
27
|
27
09482-00549-000 SPARK PLUG (NGK IFR5J11)NGK; 2002-11-01~2003-05-01 |
09482-00549-000 |
from US $27.20 |
||
|
28
|
28
16920-83G00-000
Cap,oil filler
2002-11-01~2003-05-01 |
16920-83G00-000 |
— | ||
| replacement | |||||
|
28
|
28
16920-83G01-000
CAP OIL FILLER
2002-11-01~2003-05-01 |
16920-83G01-000 |
— | ||
|
29
|
29
11851-77E03-000 HOOK,ENGINE2002-11-01~2003-05-01 |
11851-77E03-000 |
US $7.80 |
||
|
30
|
30
01550-08203-000
Bolt
2002-11-01~2003-05-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
30
|
30
01550-0820B-000 Bolt2002-11-01~2003-05-01 |
01550-0820B-000 |
from US $0.91 |
||
|
30
|
30
01550-0820A-000 BOLTBolt, funnel bracket 2002-11-01~2003-05-01 |
01550-0820A-000 |
from US $0.96 |
||
|
31
|
31
11180-85FB2-000 COVER,IGN COIL,R2002-11-01~2003-05-01 |
11180-85FB2-000 |
US $56 |
||
|
32
|
32
11190-85FB1-000 COVER,IGN COIL,L2002-11-01~2003-05-01 |
11190-85FB1-000 |
US $45.60 |
||
|
33
|
33
09125-06105-000 SCREW(6X20)2002-11-01~2003-05-01 |
09125-06105-000 |
from US $1.60 |
||
