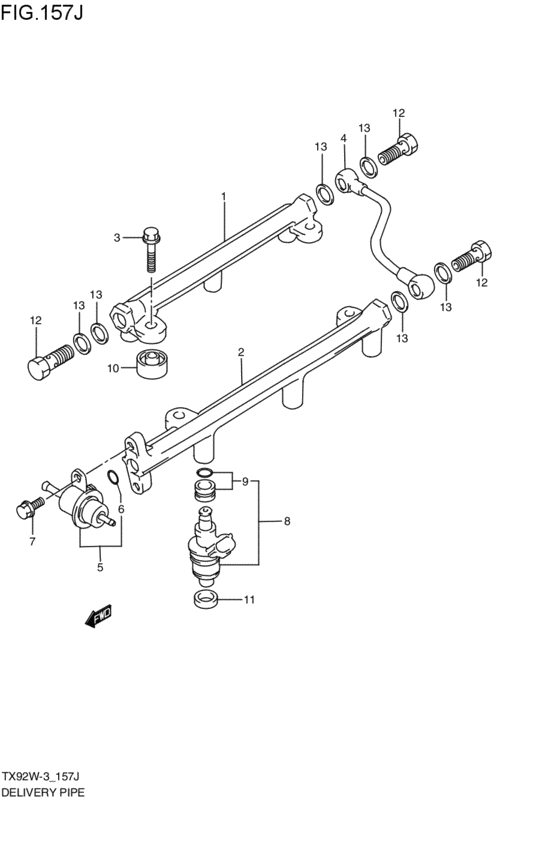

delivery pipe / fuel injector (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15731-52D00-000
パイプ,デリバリ,ライト
2002-11-01~2003-05-01 |
15731-52D00-000 |
— | ||
| replacement | |||||
|
1
|
1
15731-52D01-000
PIPE,DELIVERY,R
2002-11-01~2003-05-01 |
15731-52D01-000 |
— | ||
|
2
|
2
15732-52D00-000
パイプ,デリバリ,レフト
2002-11-01~2003-05-01 |
15732-52D00-000 |
— | ||
| replacement | |||||
|
2
|
2
15732-52D01-000
PIPE,DELIVERY,L
2002-11-01~2003-05-01 |
15732-52D01-000 |
— | ||
|
3
|
3
01550-08403-000
Bolt
2002-11-01~2003-05-01 |
01550-08403-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0840B-000 Bolt2002-11-01~2003-05-01 |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
01550-0840A-000 BOLT2002-11-01~2003-05-01 |
01550-0840A-000 |
from US $1.12 |
||
|
4
|
4
15740-77E00-000 PIPE,FUEL CONNECT2002-11-01~2003-05-01 |
15740-77E00-000 |
US $37.54 |
||
|
5
|
5
15610-67D00-000 REGULATOR,FUEL PRESSURE2002-11-01~2003-05-01 |
15610-67D00-000 |
from US $125.60 |
||
|
6
|
6
15710-51E10-000 O-RING2002-11-01~2003-05-01 |
15710-51E10-000 |
US $1.92 |
||
|
7
|
7
09103-06168-000 BOLT(6X10)2002-11-01~2003-05-01 |
09103-06168-000 |
from US $1.01 |
||
|
8
|
8
15710-52D00-000 INJECTOR ASSY,FUEL2002-11-01~2003-05-01 |
15710-52D00-000 |
US $281.52 |
||
|
9
|
9
15716-65DT0-000 GROMMET SET,FUEL INJECTOR2002-11-01~2003-05-01 |
15716-65DT0-000 |
from US $8.64 |
||
|
10
|
10
15735-58B00-000 INSULATOR,DELIVERY PIPEInsulator, delivery pipe 2002-11-01~2003-05-01 |
15735-58B00-000 |
US $2.72 |
||
|
11
|
11
09320-08062-000 CUSHION2002-11-01~2003-05-01 |
09320-08062-000 |
from US $4.32 |
||
|
12
|
12
09360-14012-000 BOLT,14X27Bolt, union (14x27) 2002-11-01~2003-05-01 |
09360-14012-000 |
from US $6.88 |
||
|
13
|
13
15762-61B00-000
Gasket,union(14x19x0.84)
2002-11-01~2003-05-01 |
15762-61B00-000 |
— | ||
| replacement | |||||
|
13
|
13
15762-61B01-000 GASKET,UNION(14X19X0.84)2002-11-01~2003-05-01 |
15762-61B01-000 |
from US $1.52 |
||
