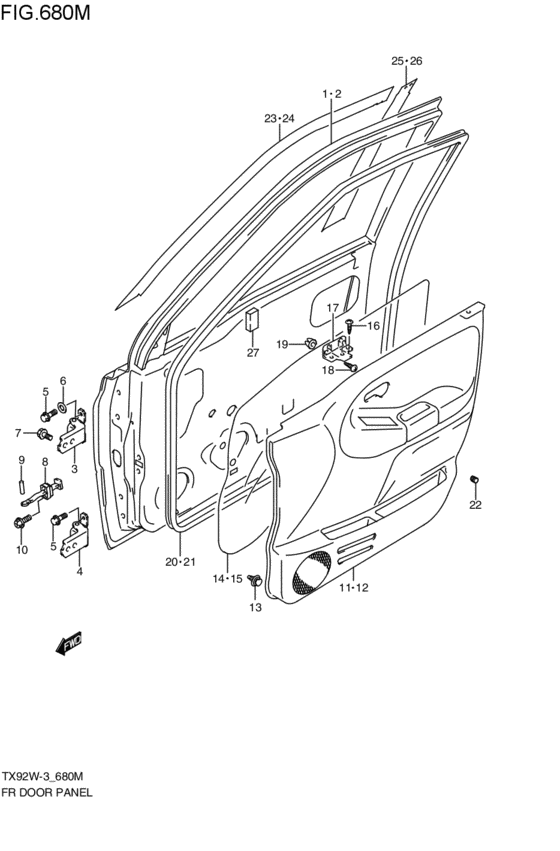

front door panel (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68001-52810-000
パネルアッシ,フロントドア,ライト
2002-11-01~2003-05-01 |
68001-52810-000 |
— | ||
| replacement | |||||
|
1
|
1
68001-52811-000 PANEL ASSY,FRONT DOOR,R2002-11-01~2003-05-01 |
68001-52811-000 |
US $739.20 |
||
|
2
|
2
68002-52810-000
パネルアッシ,フロントドア,レフト
2002-11-01~2003-05-01 |
68002-52810-000 |
— | ||
| replacement | |||||
|
2
|
2
68002-52811-000 PANEL ASSY,FRONT DOOR,L2002-11-01~2003-05-01 |
68002-52811-000 |
US $739.20 |
||
|
3
|
3
69310-65D00-000 HINGE,FR DOOR,NO.1アッパ ライト; 2002-11-01~2003-05-01 |
69310-65D00-000 |
US $41.95 |
||
|
3
|
3
69320-65D00-000 HINGE,FR DOOR,NO.2アッパ レフト; 2002-11-01~2003-05-01 |
69320-65D00-000 |
US $41.95 |
||
|
4
|
4
69310-65D00-000 HINGE,FR DOOR,NO.1ロア レフト; 2002-11-01~2003-05-01 |
69310-65D00-000 |
US $41.95 |
||
|
4
|
4
69320-65D00-000 HINGE,FR DOOR,NO.2ロア ライト; 2002-11-01~2003-05-01 |
69320-65D00-000 |
US $41.95 |
||
|
5
|
5
09103-08389-000 BOLT(8X24)2002-11-01~2003-05-01 |
09103-08389-000 |
US $17.30 |
||
|
6
|
6
69480-65D00-000
Washer
2002-11-01~2003-05-01 |
69480-65D00-000 |
— | ||
|
7
|
7
01551-08203-000
Bolt
2002-11-01~2003-05-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
7
|
7
01551-0820A-000 BOLT2002-11-01~2003-05-01 |
01551-0820A-000 |
from US $0.96 |
||
|
8
|
8
81810-65D00-000 STOP,FRONT DOOR OPEN2002-11-01~2003-05-01 |
81810-65D00-000 |
US $37.24 |
||
|
9
|
9
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2002-11-01~2003-05-01 |
81831-70B00-000 |
US $1.60 |
||
|
10
|
10
02162-06203-000
Bolt
2002-11-01~2003-05-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
10
|
10
02162-0620C-000 SCREW2002-11-01~2003-05-01 |
02162-0620C-000 |
from US $0.77 |
||
|
11
|
11
83710-65DK1-KL1
TRIM,FRONT DOOR,R
グレー; 2002-11-01~2003-05-01 |
83710-65DK1-KL1 |
— | ||
|
11
|
11
83710-65DK1-KL2
TRIM,FRONT DOOR,R
ベージュ; 2002-11-01~2003-05-01 |
83710-65DK1-KL2 |
— | ||
|
12
|
12
83720-65DK1-KL1
TRIM,FRONT DOOR,L
グレー; 2002-11-01~2003-05-01 |
83720-65DK1-KL1 |
— | ||
|
12
|
12
83720-65DK1-KL2
Trim,front door,l
ベージュ; 2002-11-01~2003-05-01 |
83720-65DK1-KL2 |
— | ||
| replacement | |||||
|
12
|
12
83720-65DK2-KL2
TRIM,FR DR,L
ベージュ; 2002-11-01~2003-05-01 |
83720-65DK2-KL2 |
— | ||
|
13
|
13
09409-08320-000 CLIP2002-11-01~2003-05-01 |
09409-08320-000 |
from US $1.15 |
||
|
14
|
14
83911-65D01-000 COVER,FR DR SEALING,R2002-11-01~2003-05-01 |
83911-65D01-000 |
US $13.87 |
||
|
15
|
15
83912-65D01-000 COVER,FR DR SEALING,L2002-11-01~2003-05-01 |
83912-65D01-000 |
US $13.87 |
||
|
16
|
16
03142-04163-000
Screw
2002-11-01~2003-05-01 |
03142-04163-000 |
— | ||
| replacement | |||||
|
16
|
16
03141-0416A-000 SCREW2002-11-01~2003-05-01 |
03141-0416A-000 |
from US $0.80 |
||
|
17
|
17
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE2002-11-01~2003-05-01 |
84482-65D00-000 |
US $4.16 |
||
|
18
|
18
03242-06163-000
Screw
2002-11-01~2003-05-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
18
|
18
03241-0616C-000 SCREW2002-11-01~2003-05-01 |
03241-0616C-000 |
from US $0.76 |
||
|
19
|
19
09148-06007-000 NUT2002-11-01~2003-05-01 |
09148-06007-000 |
from US $0.88 |
||
|
20
|
20
84641-52D00-000 WEATHERSTRIP,FR DR OPNG,R2002-11-01~2003-05-01 |
84641-52D00-000 |
US $99.57 |
||
|
21
|
21
84651-52D00-000 WEATHERSTRIP,FR DR OPNG,L2002-11-01~2003-05-01 |
84651-52D00-000 |
US $99.57 |
||
|
22
|
22
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 2002-11-01~2003-05-01 |
82711-56B00-000 |
from US $2.88 |
||
|
23
|
23
83921-65D00-0CB
Tape,front door sash,r(black)
ブラック; 2002-11-01~2003-05-01 |
83921-65D00-0CB |
— | ||
| replacement | |||||
|
23
|
23
83921-65D10-0CB TAPE,FR DOOR SASH ROOF,Rブラック; 2002-11-01~2003-05-01 |
83921-65D10-0CB |
US $57.78 |
||
|
24
|
24
83922-65D00-0CB
Tape,front door sash,l(black)
ブラック; 2002-11-01~2003-05-01 |
83922-65D00-0CB |
— | ||
| replacement | |||||
|
24
|
24
83922-65D10-0CB TAPE,FR DOOR SASH ROOF,Lブラック; 2002-11-01~2003-05-01 |
83922-65D10-0CB |
US $57.78 |
||
|
25
|
25
83923-65D00-0CB
Tape,front door pillar,r(black
ブラック; 2002-11-01~2003-05-01 |
83923-65D00-0CB |
— | ||
| replacement | |||||
|
25
|
25
83923-65D10-0CB TAPE,FR DOOR SASH PLR Rブラック; 2002-11-01~2003-05-01 |
83923-65D10-0CB |
US $30.18 |
||
|
26
|
26
83924-65D00-0CB
Tape,front door pillar,l(black
ブラック; 2002-11-01~2003-05-01 |
83924-65D00-0CB |
— | ||
| replacement | |||||
|
26
|
26
83924-65D10-0CB TAPE,FR DOOR SASH PLR,Lブラック; 2002-11-01~2003-05-01 |
83924-65D10-0CB |
US $30.18 |
||
|
27
|
27
11182-75F01-000 PAD,FR SASH BRKT INR2002-11-01~2003-05-01 |
11182-75F01-000 |
US $1.91 |
||
