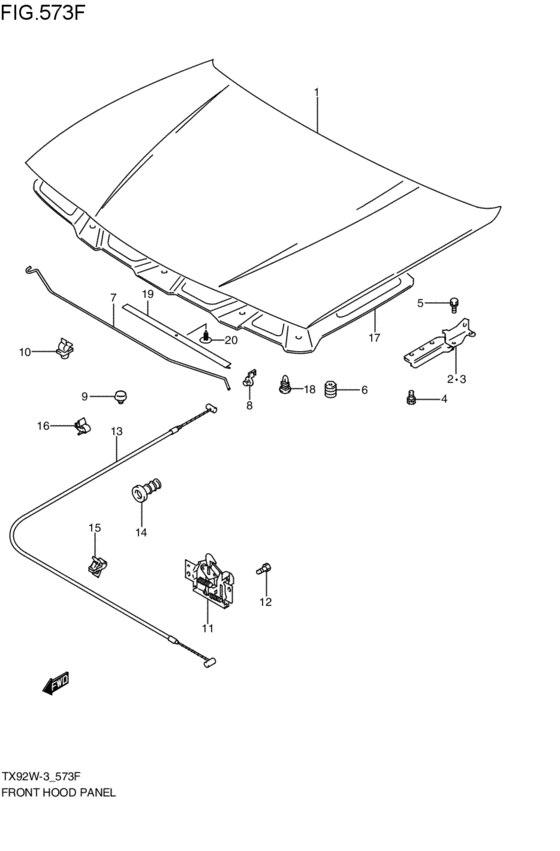

front hood (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
58300-65810-000
パネルアッシ,フロントフード
2002-11-01~2003-05-01 |
58300-65810-000 |
— | ||
| replacement | |||||
|
1
|
1
58300-65812-000 PANEL SET,FRONT HOOD2002-11-01~2003-05-01 |
58300-65812-000 |
from US $623.50 |
||
|
2
|
2
58410-65D10-000 HINGE,FR HOOD,R2002-11-01~2003-05-01 |
58410-65D10-000 |
from US $55.28 |
||
|
3
|
3
58420-65D10-000 HINGE,FR HOOD,L2002-11-01~2003-05-01 |
58420-65D10-000 |
US $63.84 |
||
|
4
|
4
01551-08163-000
Bolt
2002-11-01~2003-05-01 |
01551-08163-000 |
— | ||
| replacements | |||||
|
4
|
4
01551-0816C-000 Bolt2002-11-01~2003-05-01 |
01551-0816C-000 |
from US $0.96 |
||
|
4
|
4
01551-0816A-000
ボルト
2002-11-01~2003-05-01 |
01551-0816A-000 |
— | ||
|
5
|
5
02162-06163-000
Screw
2002-11-01~2003-05-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
5
|
5
02162-0616B-000 SCREWBolt, adjust 2002-11-01~2003-05-01 |
02162-0616B-000 |
from US $0.80 |
||
|
6
|
6
72372-82000-000 CUSHION,BACK DR SIDECushion 2002-11-01~2003-05-01 |
72372-82000-000 |
from US $2.07 |
||
|
7
|
7
72442-65D10-000 STAY,FRONT HOOD2002-11-01~2003-05-01 |
72442-65D10-000 |
US $29.60 |
||
|
8
|
8
09209-14001-000 LINKAGE2002-11-01~2003-05-01 |
09209-14001-000 |
from US $1.55 |
||
|
9
|
9
72372-50E00-000 CUSHION,FR HOOD FR NO.22002-11-01~2003-05-01 |
72372-50E00-000 |
from US $4.95 |
||
|
10
|
10
09403-07311-000 CLAMP2002-11-01~2003-05-01 |
09403-07311-000 |
from US $0.95 |
||
|
11
|
11
82110-65D02-000
Latch comp,hood,r
2002-11-01~2003-05-01 |
82110-65D02-000 |
— | ||
| replacement | |||||
|
11
|
11
82110-65D03-000 LATCH,HOOD2002-11-01~2003-05-01 |
82110-65D03-000 |
US $47.10 |
||
|
12
|
12
02162-06163-000
Screw
2002-11-01~2003-05-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
12
|
12
02162-0616B-000 SCREWBolt, adjust 2002-11-01~2003-05-01 |
02162-0616B-000 |
from US $0.80 |
||
|
13
|
13
82160-65D00-000 CABLE,HOOD LATCH RELEASE2002-11-01~2003-05-01 |
82160-65D00-000 |
from US $22.84 |
||
|
14
|
14
82191-50E00-000 GROMMET,LATCH RELEASE CABLE2002-11-01~2003-05-01 |
82191-50E00-000 |
US $3.52 |
||
|
15
|
15
09403-08406-000 CLAMP2002-11-01~2003-05-01 |
09403-08406-000 |
US $1.44 |
||
|
16
|
16
09403-06411-000
Clamp
2002-11-01~2003-05-01 |
09403-06411-000 |
— | ||
| replacement | |||||
|
16
|
16
09403-06412-000 CLAMP2002-11-01~2003-05-01 |
09403-06412-000 |
US $12.90 |
||
|
17
|
17
75270-65D00-000 SILENCER,FRONT HOOD2002-11-01~2003-05-01 |
75270-65D00-000 |
US $224 |
||
|
18
|
18
09409-06309-5ES CLIP(BLACK)ブラック; 2002-11-01~2003-05-01 |
09409-06309-5ES |
from US $1.44 |
||
|
19
|
19
72351-65D00-000 SEAL,FR HOOD2002-11-01~2003-05-01 |
72351-65D00-000 |
US $52 |
||
|
20
|
20
09409-04304-000 CLIP2002-11-01~2003-05-01 |
09409-04304-000 |
from US $1.13 |
||
