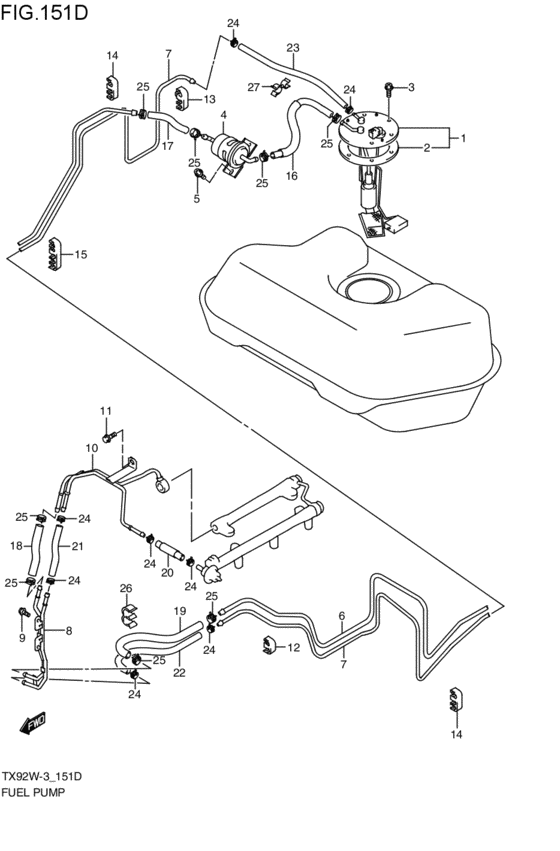

Fuel Pump (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-52D60-000 PUMP ASSY,FUEL2002-11-01~2003-05-01 |
15100-52D60-000 |
US $855.36 |
||
|
2
|
2
15111-52D00-000 GASKET,FUEL PUMP2002-11-01~2003-05-01 |
15111-52D00-000 |
US $25.02 |
||
|
3
|
3
02162-06103-000
Bolt
2002-11-01~2003-05-01 |
02162-06103-000 |
— | ||
| replacement | |||||
|
3
|
3
02162-0610A-000 SCREW2002-11-01~2003-05-01 |
02162-0610A-000 |
from US $0.64 |
||
|
4
|
4
15410-52D00-000 FILTER,FUEL2002-11-01~2003-05-01 |
15410-52D00-000 |
from US $34.11 |
||
|
5
|
5
02162-06123-000
Bolt (6x12)
2002-11-01~2003-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
5
|
5
02162-0612B-000 SCREWBolt 2002-11-01~2003-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
5
|
5
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2003-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
6
|
6
15821-52D00-000
PIPE,FUEL FEED
2002-11-01~2003-05-01 |
15821-52D00-000 |
— | ||
|
7
|
7
15861-52D00-000
PIPE,FUEL RTN
2002-11-01~2003-05-01 |
15861-52D00-000 |
— | ||
|
8
|
8
15840-52D01-000 PIPE,FUEL NO.22002-11-01~2003-05-01 |
15840-52D01-000 |
US $37.90 |
||
|
9
|
9
01550-06123-000
Bolt
2002-11-01~2003-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0612B-000 BOLTBolt, clamp 2002-11-01~2003-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
9
|
9
01550-0612A-000 BOLT2002-11-01~2003-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
10
|
10
15850-67D01-000 PIPE,FUEL ENG SIDEエンジンサイド; 2002-11-01~2003-05-01 |
15850-67D01-000 |
US $35.33 |
||
|
11
|
11
01550-06123-000
Bolt
2002-11-01~2003-05-01 |
01550-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0612B-000 BOLTBolt, clamp 2002-11-01~2003-05-01 |
01550-0612B-000 |
from US $0.76 |
||
|
11
|
11
01550-0612A-000 BOLT2002-11-01~2003-05-01 |
01550-0612A-000 |
from US $0.76 |
||
|
12
|
12
15892-78E10-000 CLAMP,FUEL PIPE2002-11-01~2003-05-01 |
15892-78E10-000 |
US $2.47 |
||
|
13
|
13
15893-56B00-000 CLAMP,FUEL PIPE2002-11-01~2003-05-01 |
15893-56B00-000 |
US $2.43 |
||
|
14
|
14
15893-60A11-000 CLAMP,FUEL PIPE2002-11-01~2003-05-01 |
15893-60A11-000 |
US $2.24 |
||
|
15
|
15
15895-60A11-000 CLAMP,FUEL PIPE2002-11-01~2003-05-01 |
15895-60A11-000 |
US $2.56 |
||
|
16
|
16
15815-52D00-000
ホース,フューエル(フィルタインレット)
フィルタインレット; 2002-11-01~2003-05-01 |
15815-52D00-000 |
— | ||
| replacement | |||||
|
16
|
16
15800-52810-000
HOSE SET,FUEL FILTER INLET
フィルタインレット; 2002-11-01~2003-05-01 |
15800-52810-000 |
— | ||
|
17
|
17
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>120; 2002-11-01~2003-05-01 |
09356-75147-600 |
US $51.68 |
||
|
18
|
18
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>160; 2002-11-01~2003-05-01 |
09356-75147-600 |
US $51.68 |
||
|
19
|
19
09356-75147-600 HOSE(7.5X14.3X600)Hose, fuel (body side) L:600>200; 2002-11-01~2003-05-01 |
09356-75147-600 |
US $51.68 |
||
|
20
|
20
15856-52D00-000
HOSE,FUEL RTN ENG SIDE
エンジンサイド; 2002-11-01~2003-05-01 |
15856-52D00-000 |
— | ||
|
21
|
21
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>170; 2002-11-01~2003-05-01 |
09356-55117-600 |
US $69.60 |
||
|
22
|
22
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>210; 2002-11-01~2003-05-01 |
09356-55117-600 |
US $69.60 |
||
|
23
|
23
09356-55117-600 HOSE(5.5X11.5X600)Hose, fuel rtn (body side) L:600>350; 2002-11-01~2003-05-01 |
09356-55117-600 |
US $69.60 |
||
|
24
|
24
09401-10409-000 CLIP2002-11-01~2003-05-01 |
09401-10409-000 |
from US $1.12 |
||
|
25
|
25
09401-13419-000 CLIP2002-11-01~2003-05-01 |
09401-13419-000 |
from US $1.60 |
||
|
26
|
26
09408-00083-000 CLAMP2002-11-01~2003-05-01 |
09408-00083-000 |
US $17.30 |
||
|
27
|
27
09408-00174-000 CLAMP2002-11-01~2003-05-01 |
09408-00174-000 |
US $1.98 |
||
