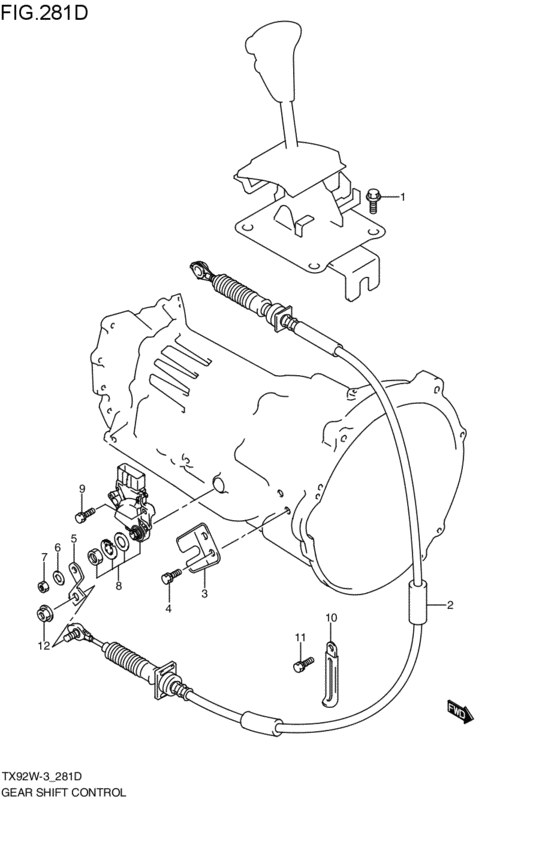

gearlever control (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09118-08118-000 BOLT(8X20)2002-11-01~2003-05-01 |
09118-08118-000 |
US $12.50 |
||
|
2
|
2
28210-67D30-000 CABLE ASSY,SELECT2002-11-01~2003-05-01 |
28210-67D30-000 |
from US $122.06 |
||
|
3
|
3
28221-67D10-000
BRACKET,SELECT CABLE
2002-11-01~2003-05-01 |
28221-67D10-000 |
— | ||
|
4
|
4
01550-08203-000
Bolt
2002-11-01~2003-05-01 |
01550-08203-000 |
— | ||
| replacements | |||||
|
4
|
4
01550-0820B-000 Bolt2002-11-01~2003-05-01 |
01550-0820B-000 |
from US $0.91 |
||
|
4
|
4
01550-0820A-000 BOLTBolt, funnel bracket 2002-11-01~2003-05-01 |
01550-0820A-000 |
from US $0.96 |
||
|
5
|
5
28231-67D10-000
レバー,マニュアルセレクト
2002-11-01~2003-05-01 |
28231-67D10-000 |
— | ||
| replacement | |||||
|
5
|
5
28231-67D11-000
LEVER,MANUAL SLT
2002-11-01~2003-05-01 |
28231-67D11-000 |
— | ||
|
6
|
6
09162-08008-000 WASHER,LOCKLock washer 2002-11-01~2003-05-01 |
09162-08008-000 |
from US $0.80 |
||
|
7
|
7
08310-00083-000
Nut
2002-11-01~2003-05-01 |
08310-00083-000 |
— | ||
| replacements | |||||
|
7
|
7
08310-0008B-000 NUT2002-11-01~2003-05-01 |
08310-0008B-000 |
from US $0.80 |
||
|
7
|
7
08310-0008A-000 NUTNut, bead stopper 2002-11-01~2003-05-01 |
08310-0008A-000 |
from US $0.76 |
||
|
8
|
8
24731-57B10-000 SWITCH ASSY,SHIFT2002-11-01~2003-05-01 |
24731-57B10-000 |
from US $346.59 |
||
|
9
|
9
29993-57B00-000 BOLT,SHIFT SW2002-11-01~2003-05-01 |
29993-57B00-000 |
US $7.80 |
||
|
10
|
10
09404-08420-000 CLAMP(L:120 T:1.0)2002-11-01~2003-05-01 |
09404-08420-000 |
from US $2.08 |
||
|
11
|
11
01550-08123-000
Bolt
2002-11-01~2003-05-01 |
01550-08123-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0812B-000 BoltPlug, drain 2002-11-01~2003-05-01 |
01550-0812B-000 |
from US $0.96 |
||
|
11
|
11
01550-0812A-000 BOLT2002-11-01~2003-05-01 |
01550-0812A-000 |
from US $0.91 |
||
|
12
|
12
09159-08069-000
Nut
2002-11-01~2003-05-01 |
09159-08069-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-08135-000 NUT2002-11-01~2003-05-01 |
09159-08135-000 |
from US $0.74 |
||
