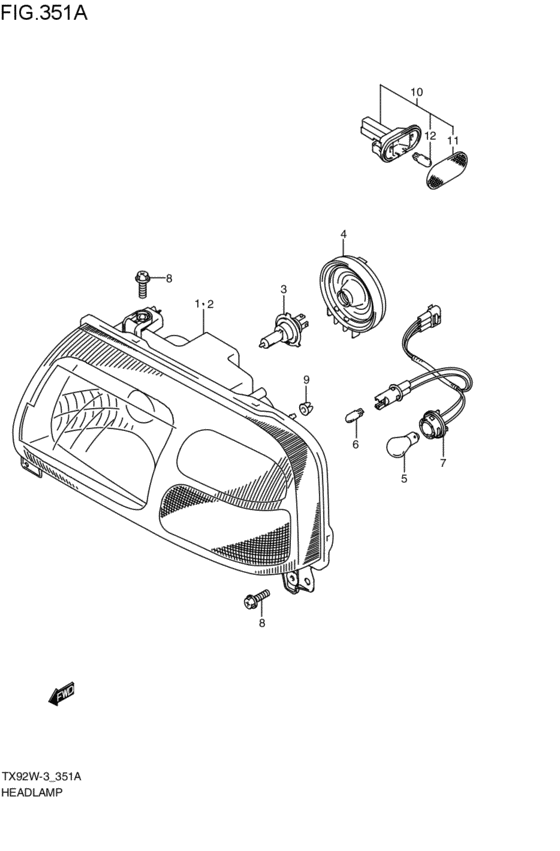

head lamp (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35120-65D11-000 UNIT,HEADLAMP,R2002-11-01~2003-05-01 |
35120-65D11-000 |
US $563.47 |
||
|
2
|
2
35320-65D11-000 UNIT,HEADLAMP,L2002-11-01~2003-05-01 |
35320-65D11-000 |
US $563.47 |
||
|
3
|
3
09471-12182-000 BULB(12V60/55W,H4)2002-11-01~2003-05-01 |
09471-12182-000 |
from US $26.98 |
||
|
4
|
4
35125-65D00-000 COVER,SOCKET2002-11-01~2003-05-01 |
35125-65D00-000 |
from US $8.73 |
||
|
5
|
5
09471-12186-000 BULB(12V21W,AMBER)アンバー; 2002-11-01~2003-05-01 |
09471-12186-000 |
from US $5.65 |
||
|
6
|
6
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2002-11-01~2003-05-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
6
|
6
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2002-11-01~2003-05-01 |
09471-12216-000 |
from US $2.77 |
||
|
7
|
7
35618-65D00-000 SOCKET&CORD ASSY2002-11-01~2003-05-01 |
35618-65D00-000 |
US $56 |
||
|
8
|
8
02162-06123-000
Bolt (6x12)
2002-11-01~2003-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02162-0612B-000 SCREWBolt 2002-11-01~2003-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
8
|
8
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2003-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
9
|
9
35153-60G00-000 GROMMET,LAMP2002-11-01~2003-05-01 |
35153-60G00-000 |
from US $1.60 |
||
|
10
|
10
36410-50E01-000 LAMP,SIDE TURN(HSG2002-11-01~2003-05-01 |
36410-50E01-000 |
from US $19.22 |
||
|
11
|
11
36412-70B00-000 LENS,SIDE TURN (AMBER)(AMBER) 2002-11-01~2003-05-01 |
36412-70B00-000 |
from US $4.55 |
||
|
12
|
12
09471-12081-000
Bulb (12v,5w)
TOKAI DENSO; 2002-11-01~2003-05-01 |
09471-12081-000 |
— | ||
| replacement | |||||
|
12
|
12
09471-12216-000 BULB(12V5W)Bulb (12v5w) TOKAI DENSO; 2002-11-01~2003-05-01 |
09471-12216-000 |
from US $2.77 |
||
