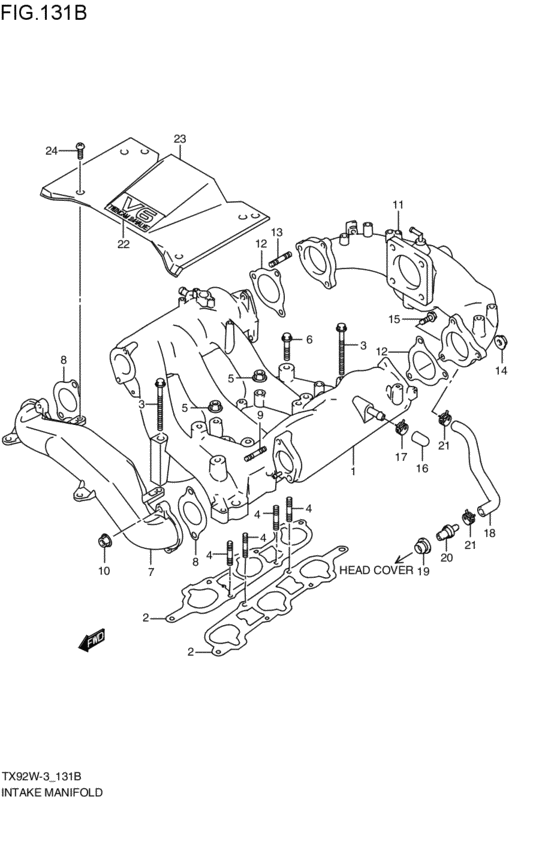

intake manifold (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-52D00-000
マニホールド,インテーク
2002-11-01~2003-05-01 |
13110-52D00-000 |
— | ||
| replacements | |||||
|
1
|
1
13110-52D10-000
MANIFOLD,INTK
2002-11-01~2003-05-01 |
13110-52D10-000 |
— | ||
|
1
|
1
18419-52D00-000 HOSE,VAC RGLTR TO PIPE2002-11-01~2003-05-01 |
18419-52D00-000 |
US $20 |
||
|
1
|
1
07130-0510B-000 BOLTBolt, sensor 2002-11-01~2003-05-01 |
07130-0510B-000 |
from US $0.96 |
||
|
1
|
1
09250-04003-000 PLUG(OD:8)Plug (od:8) 2002-11-01~2003-05-01 |
09250-04003-000 |
US $1.12 |
||
|
2
|
2
13119-77E00-000 GASKET,INTK MANF2002-11-01~2003-05-01 |
13119-77E00-000 |
from US $13.77 |
||
|
3
|
3
09103-08230-000 BOLT(8X100)Bolt (8x100) 2002-11-01~2003-05-01 |
09103-08230-000 |
US $1.76 |
||
|
4
|
4
01421-08853-000
Stud bolt
2002-11-01~2003-05-01 |
01421-08853-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0885A-000 BOLT,STUD2002-11-01~2003-05-01 |
01421-0885A-000 |
from US $6.46 |
||
|
5
|
5
08316-10083-000
Nut
2002-11-01~2003-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT2002-11-01~2003-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
01550-08453-000
Bolt,cylinder h
2002-11-01~2003-05-01 |
01550-08453-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0845B-000 BOLT2002-11-01~2003-05-01 |
01550-0845B-000 |
from US $1.06 |
||
|
6
|
6
01550-0845A-000 BOLTBolt, oil pump (s) 2002-11-01~2003-05-01 |
01550-0845A-000 |
US $5.03 |
||
|
7
|
7
13131-67D00-000 PIPE,SURGE TANK2002-11-01~2003-05-01 |
13131-67D00-000 |
US $104.88 |
||
|
8
|
8
13139-67D00-000 GASKET,SURGE TANK PIPE2002-11-01~2003-05-01 |
13139-67D00-000 |
US $2.72 |
||
|
9
|
9
01421-08253-000
Stud bolt, no.2
2002-11-01~2003-05-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
9
|
9
01421-0825A-000 BOLT,STUD2002-11-01~2003-05-01 |
01421-0825A-000 |
from US $1.12 |
||
|
10
|
10
08316-10083-000
Nut
2002-11-01~2003-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1008B-000 NUT2002-11-01~2003-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
11
|
11
13140-52D00-000
COLLECTOR,INTAKE
2002-11-01~2003-05-01 |
13140-52D00-000 |
— | ||
|
12
|
12
13122-67D00-000 GASKET,COLLECTOR2002-11-01~2003-05-01 |
13122-67D00-000 |
from US $5.49 |
||
|
13
|
13
01421-08253-000
Stud bolt, no.2
2002-11-01~2003-05-01 |
01421-08253-000 |
— | ||
| replacement | |||||
|
13
|
13
01421-0825A-000 BOLT,STUD2002-11-01~2003-05-01 |
01421-0825A-000 |
from US $1.12 |
||
|
14
|
14
08316-10083-000
Nut
2002-11-01~2003-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
14
|
14
08316-1008B-000 NUT2002-11-01~2003-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
15
|
15
01550-08253-000
Bolt, rear
2002-11-01~2003-05-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0825B-000 BOLT2002-11-01~2003-05-01 |
01550-0825B-000 |
from US $0.96 |
||
|
15
|
15
01550-0825A-000 BOLT2002-11-01~2003-05-01 |
01550-0825A-000 |
from US $1.06 |
||
|
16
|
16
09251-09003-000 PLUG2002-11-01~2003-05-01 |
09251-09003-000 |
US $21.70 |
||
|
17
|
17
09401-13414-000 CLIPClip, pcv hose 2002-11-01~2003-05-01 |
09401-13414-000 |
from US $1.60 |
||
|
18
|
18
11193-77E00-000
ホース,PCV
2002-11-01~2003-05-01 |
11193-77E00-000 |
— | ||
| replacement | |||||
|
18
|
18
11190-77820-000 HOSE&PIPE SET,PCV H272002-11-01~2003-05-01 |
11190-77820-000 |
US $42.69 |
||
|
19
|
19
11198-58B00-000 SEAL,PCV VALVESeal, pcv valve 2002-11-01~2003-03-01 |
11198-58B00-000 |
US $5.20 |
||
| replacement | |||||
|
19
|
19
11198-98L00-000 Seal,pcv Valve2002-11-01~2003-03-01 |
11198-98L00-000 |
from US $2.74 |
||
|
20
|
20
18118-65D00-000 VALVE,PCV2003-04-01~2003-05-01 |
18118-65D00-000 |
from US $32.47 |
||
|
20
|
20
18118-77E00-000 VALVE,PCV2002-11-01~2003-03-01 |
18118-77E00-000 |
from US $37.90 |
||
|
21
|
21
09401-13414-000 CLIPClip, pcv hose 2002-11-01~2003-05-01 |
09401-13414-000 |
from US $1.60 |
||
|
22
|
22
11965-77E11-000 LABEL,V6V6; 2002-11-01~2003-05-01 |
11965-77E11-000 |
US $10.56 |
||
|
23
|
23
13170-77E02-000 COVER,SURGE TANK2002-11-01~2003-05-01 |
13170-77E02-000 |
from US $49.28 |
||
|
24
|
24
09125-06105-000 SCREW(6X20)2002-11-01~2003-05-01 |
09125-06105-000 |
from US $1.60 |
||
