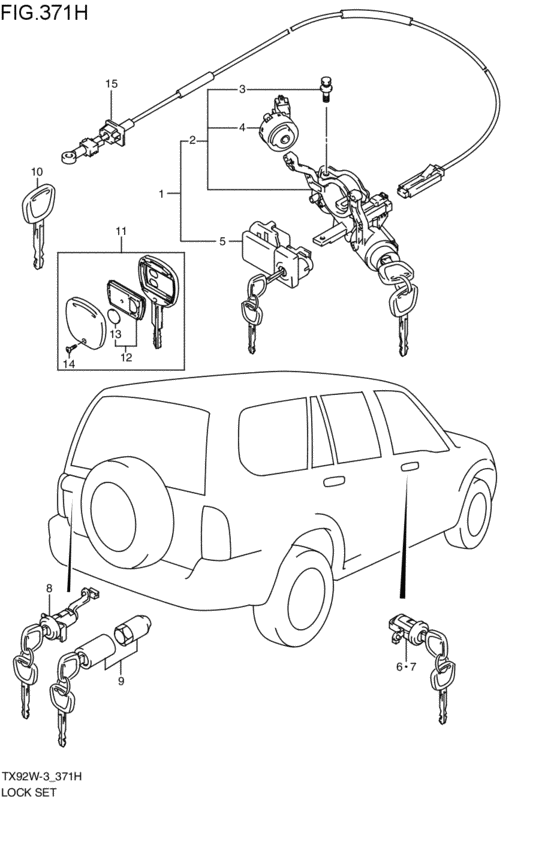

lock set (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37108-67850-R8H
ロックセット(ベージュ)
ベ-ジユ; 2002-11-01~2003-05-01 |
37108-67850-R8H |
— | ||
|
1
|
1
37108-67850-R8J
ロックセット(グレー)
グレ-; 2002-11-01~2003-05-01 |
37108-67850-R8J |
— | ||
|
2
|
2
37108-67820-000 LOCK ASSY,STEERING2002-11-01~2003-05-01 |
37108-67820-000 |
US $200.56 |
||
|
3
|
3
37152-60B00-000 BOLT,STEERING LOCK2002-11-01~2003-05-01 |
37152-60B00-000 |
from US $2 |
||
|
4
|
4
37111-50J00-000 SWITCH ASSY2002-11-01~2003-05-01 |
37111-50J00-000 |
from US $65.14 |
||
|
5
|
5
73430-50810-R8H LOCK ASSY,GLOVE BOXベ-ジユ; 2002-11-01~2003-05-01 |
73430-50810-R8H |
from US $37.58 |
||
|
5
|
5
73430-50810-R8J LOCK ASSY,GLOVE BOXグレ-; 2002-11-01~2003-05-01 |
73430-50810-R8J |
from US $45.25 |
||
|
6
|
6
82270-52810-000 CYLINDER,FR DR LOCK,R2002-11-01~2003-05-01 |
82270-52810-000 |
from US $40.77 |
||
|
7
|
7
82280-52810-000 CYLINDER,FR DR LOCK,L2002-11-01~2003-05-01 |
82280-52810-000 |
from US $41.51 |
||
|
8
|
8
82500-65860-000 CYLINDER,BACK DR LATCH LOCK2002-11-01~2003-05-01 |
82500-65860-000 |
from US $44.71 |
||
|
9
|
9
83900-65820-000 KEY,SPARE TIRE NUT LOCK2002-11-01~2003-05-01 |
83900-65820-000 |
US $109.40 |
||
|
10
|
10
37145-54G20-000 KEY,BLANKOPT; 2002-11-01~2003-05-01 |
37145-54G20-000 |
US $25.60 |
||
|
11
|
11
37145-54G50-000 KEY,BLANK TRANSMITTEROPT; 2002-11-01~2003-05-01 |
37145-54G50-000 |
US $170.02 |
||
|
12
|
12
37182-54G50-000
SWITCH,TRANSMITER
OPT; 2002-11-01~2003-05-01 |
37182-54G50-000 |
— | ||
|
13
|
13
37185-54G00-000
バッテリ,CR1216
OPT; 2002-11-01~2003-05-01 |
37185-54G00-000 |
— | ||
|
14
|
14
37186-73H00-000 SCREWOPT; 2002-11-01~2003-05-01 |
37186-73H00-000 |
US $1.91 |
||
|
15
|
15
28551-50J10-000
ケーブル,キーインタロック
2002-11-01~2003-05-01 |
28551-50J10-000 |
— | ||
| replacement | |||||
|
15
|
15
28551-50J11-000 CABLE,KEY INTER LOCK2002-11-01~2003-05-01 |
28551-50J11-000 |
US $34.78 |
||
