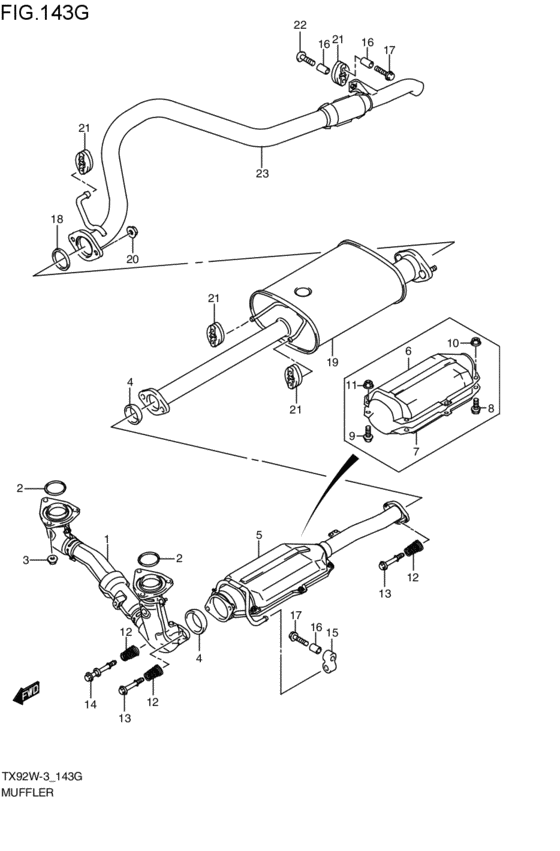

muffler (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14190-67D05-000
パイプ,エキゾースト,NO.1
2002-11-01~2003-05-01 |
14190-67D05-000 |
— | ||
| replacement | |||||
|
1
|
1
14190-67DVV-000 PIPE SET,EXHAUST2002-11-01~2003-05-01 |
14190-67DVV-000 |
US $535.04 |
||
|
2
|
2
14184-65D00-000 GASKET,EXH PIPE2002-11-01~2003-05-01 |
14184-65D00-000 |
from US $8.37 |
||
|
3
|
3
09159-10098-000 NUT2002-11-01~2003-05-01 |
09159-10098-000 |
from US $1.28 |
||
|
4
|
4
14183-65D00-000 RING,SEAL EXH PIPE2002-11-01~2003-05-01 |
14183-65D00-000 |
from US $14.65 |
||
|
5
|
5
14250-65D21-000 PIPE,EXH NO.22002-11-01~2003-05-01 |
14250-65D21-000 |
US $1,802.56 |
||
| replacement | |||||
|
5
|
5
14250-67D30-000
Pipe, exhaust no.2
2002-11-01~2003-05-01 |
14250-67D30-000 |
— | ||
|
6
|
6
14251-65D20-000
カバー,キャタリストケース,アッパ
2002-11-01~2003-05-01 |
14251-65D20-000 |
— | ||
| replacement | |||||
|
6
|
6
14251-65D2V-000 COVER,CATACASE UPPER2002-11-01~2003-05-01 |
14251-65D2V-000 |
from US $23.55 |
||
|
7
|
7
14252-65D20-000
カバー,キャタリストケース,ロア
2002-11-01~2003-05-01 |
14252-65D20-000 |
— | ||
| replacement | |||||
|
7
|
7
14252-65D2V-000 COVER,CATACASE LOWER 77E-C032002-11-01~2003-05-01 |
14252-65D2V-000 |
US $28.52 |
||
|
8
|
8
01550-06163-000
Bolt
2002-11-01~2003-05-01 |
01550-06163-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0616B-000 BOLT2002-11-01~2003-05-01 |
01550-0616B-000 |
from US $0.76 |
||
|
8
|
8
01550-0616A-000 BOLT2002-11-01~2003-05-01 |
01550-0616A-000 |
from US $0.76 |
||
|
9
|
9
01550-08163-000
Bolt, holder
2002-11-01~2003-05-01 |
01550-08163-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0816B-000 BOLT2002-11-01~2003-05-01 |
01550-0816B-000 |
from US $0.91 |
||
|
9
|
9
01550-0816A-000 BOLTBolt, rear 2002-11-01~2003-05-01 |
01550-0816A-000 |
from US $0.91 |
||
|
10
|
10
08316-10063-000
Nut
2002-11-01~2003-05-01 |
08316-10063-000 |
— | ||
| replacement | |||||
|
10
|
10
08316-1006B-000 NUT2002-11-01~2003-05-01 |
08316-1006B-000 |
from US $0.76 |
||
|
11
|
11
08316-10083-000
Nut
2002-11-01~2003-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1008B-000 NUT2002-11-01~2003-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
12
|
12
14492-67D00-000 SPRING,EXH PIPE2002-11-01~2003-05-01 |
14492-67D00-000 |
from US $5.67 |
||
|
13
|
13
09119-10042-000
ボルト,10X65
2002-11-01~2003-05-01 |
09119-10042-000 |
— | ||
| replacement | |||||
|
13
|
13
09119-10041-000 BOLT(10X65)2002-11-01~2003-05-01 |
09119-10041-000 |
from US $5.76 |
||
|
14
|
14
14193-77E00-000 BOLT,EXH PIPE2002-11-01~2003-05-01 |
14193-77E00-000 |
US $15.24 |
||
|
15
|
15
14281-71C01-000 MOUNTING,MUF2002-11-01~2003-05-01 |
14281-71C01-000 |
from US $7.54 |
||
|
16
|
16
09180-08057-000
Spacer
2002-11-01~2003-05-01 |
09180-08057-000 |
— | ||
| replacement | |||||
|
16
|
16
09180-08227-000 SPACER(8.2X12.5X23.5)2002-11-01~2003-05-01 |
09180-08227-000 |
from US $1.92 |
||
|
17
|
17
01550-08353-000
Bolt, rear
2002-11-01~2003-05-01 |
01550-08353-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0835B-000 BOLT2002-11-01~2003-05-01 |
01550-0835B-000 |
from US $1.12 |
||
|
17
|
17
01550-0835A-000 BOLT2002-11-01~2003-05-01 |
01550-0835A-000 |
from US $1.06 |
||
|
18
|
18
14182-58B10-000 GASKET,MUFFLER2002-11-01~2003-05-01 |
14182-58B10-000 |
from US $4.79 |
||
|
19
|
19
14300-52D11-000
マフラ
2002-11-01~2003-05-01 |
14300-52D11-000 |
— | ||
| replacement | |||||
|
19
|
19
14300-52D1V-000
マフラ
2002-11-01~2003-05-01 |
14300-52D1V-000 |
— | ||
|
20
|
20
09159-10049-000
Nut
2002-11-01~2003-05-01 |
09159-10049-000 |
— | ||
| replacement | |||||
|
20
|
20
09159-10102-000 NUT2002-11-01~2003-05-01 |
09159-10102-000 |
from US $1.01 |
||
|
21
|
21
14281-58B01-000 MOUNTING,MUF2002-11-01~2003-05-01 |
14281-58B01-000 |
US $22.40 |
||
|
22
|
22
09139-08019-000 SCREW(8X35)2002-11-01~2003-05-01 |
09139-08019-000 |
US $23.60 |
||
|
23
|
23
14630-52D00-000
パイプ,マフラテール
2002-11-01~2003-05-01 |
14630-52D00-000 |
— | ||
| replacement | |||||
|
23
|
23
14630-52D0V-000
PIPE,MUFFLER TAIL
2002-11-01~2003-05-01 |
14630-52D0V-000 |
— | ||
