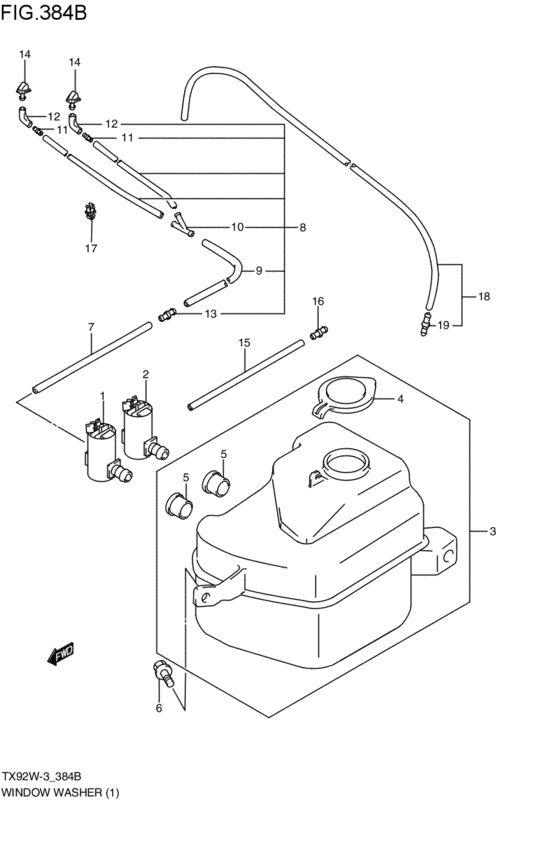

ウインドウオッシャ (TX92W-170001 カラ TX92W-170346 マデ; 2002-11-01~2003-01-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38410-65D00-000 PUMP ASSY,WASHER FRONTフロント ウォッシャ; 2002-11-01~2003-01-01 |
38410-65D00-000 |
US $115.92 |
||
|
2
|
2
38410-66113-000 PUMP ASSY,WASHERPump assy, washer リヤ ウォッシャ; 2002-11-01~2003-01-01 |
38410-66113-000 |
from US $59.20 |
||
|
3
|
3
38450-65D00-000 TANK ASSY,WASHER2002-11-01~2003-01-01 |
38450-65D00-000 |
US $74.34 |
||
|
4
|
4
38452-65D00-000 CAP,WASHER TANK2002-11-01~2003-01-01 |
38452-65D00-000 |
from US $1.92 |
||
|
5
|
5
38453-75000-000 GROMMET2002-11-01~2003-01-01 |
38453-75000-000 |
US $1.60 |
||
|
6
|
6
09136-06133-000 BOLT(6X16)Screw 2002-11-01~2003-01-01 |
09136-06133-000 |
US $12.50 |
||
|
7
|
7
38459-50J00-000 HOSE,WASHER L:810L:810>400; 2002-11-01~2003-01-01 |
38459-50J00-000 |
US $14.40 |
||
|
8
|
8
38832-65D10-000 HOSE ASSY,WASHER2002-11-01~2003-01-01 |
38832-65D10-000 |
US $52 |
||
|
9
|
9
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>1100; 2002-11-01~2003-01-01 |
38491-61A00-000 |
US $5.12 |
||
|
10
|
10
38496-71311-000 CONNECTOR,THREE WAY2002-11-01~2003-01-01 |
38496-71311-000 |
US $4.16 |
||
|
11
|
11
38833-79501-000 VALVE,WASHER HOSE2002-11-01~2003-01-01 |
38833-79501-000 |
from US $3.76 |
||
|
12
|
12
38454-71B10-000 JOINT,ELBOW2002-11-01~2003-01-01 |
38454-71B10-000 |
from US $3.94 |
||
|
13
|
13
38496-56B00-000 CONNECTOR2002-11-01~2003-01-01 |
38496-56B00-000 |
from US $1.60 |
||
|
14
|
14
38480-65D50-000 NOZZLE,WASHER2002-11-01~2003-01-01 |
38480-65D50-000 |
from US $10.82 |
||
|
15
|
15
38491-61A00-000 HOSE,WASHER L:1300Hose, washer (l:1300->80) L:1300>350; 2002-11-01~2003-01-01 |
38491-61A00-000 |
US $5.12 |
||
|
16
|
16
38496-56B00-000 CONNECTOR2002-11-01~2003-01-01 |
38496-56B00-000 |
from US $1.60 |
||
|
17
|
17
09403-07307-5PK CLAMPブラック; 2002-11-01~2003-01-01 |
09403-07307-5PK |
from US $1.69 |
||
|
18
|
18
38490-65D20-000 HOSE ASSY,RR WASHER2002-11-01~2003-01-01 |
38490-65D20-000 |
US $16.67 |
||
|
19
|
19
38496-56B00-000 CONNECTOR2002-11-01~2003-01-01 |
38496-56B00-000 |
from US $1.60 |
