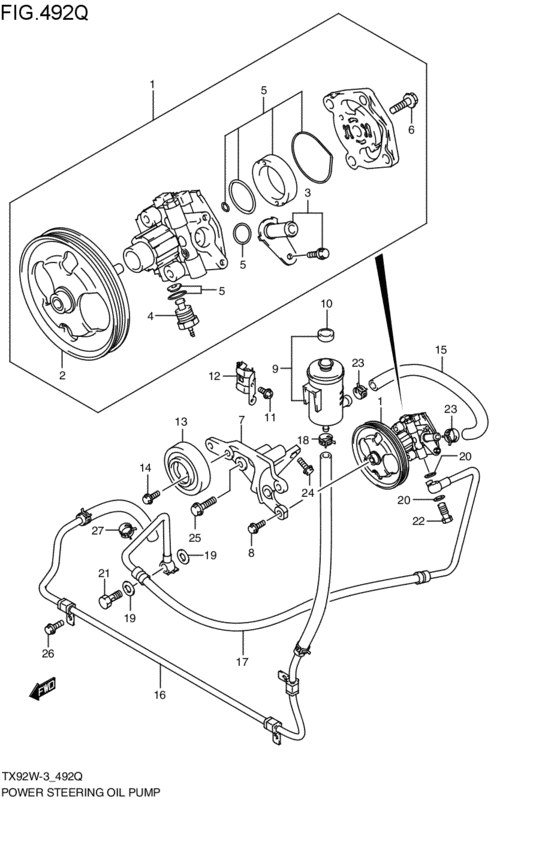

power steering oil pump (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
49100-52D00-000 PUMP ASSY,POWER STEERING2002-11-01~2003-05-01 |
49100-52D00-000 |
US $880 |
||
|
2
|
2
49111-65D30-000 PULLEY SET2002-11-01~2003-05-01 |
49111-65D30-000 |
US $140.58 |
||
|
3
|
3
49112-65D30-000 CONNECTOR SET2002-11-01~2003-05-01 |
49112-65D30-000 |
US $42.32 |
||
|
4
|
4
49113-65D00-000 TERMINAL SET2002-11-01~2003-05-01 |
49113-65D00-000 |
US $40.80 |
||
|
5
|
5
49114-56B30-000 SEAL SET2002-11-01~2003-05-01 |
49114-56B30-000 |
from US $34.96 |
||
|
6
|
6
49115-56B30-000 BOLT SET2002-11-01~2003-05-01 |
49115-56B30-000 |
US $10.56 |
||
|
7
|
7
49120-65D30-000 BRACKET,POWER STRG PUMP2002-11-01~2003-05-01 |
49120-65D30-000 |
US $110.03 |
||
|
8
|
8
01550-08253-000
Bolt, rear
2002-11-01~2003-05-01 |
01550-08253-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0825B-000 BOLT2002-11-01~2003-05-01 |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
01550-0825A-000 BOLT2002-11-01~2003-05-01 |
01550-0825A-000 |
from US $1.06 |
||
|
9
|
9
49140-54J00-000
Tank assy,power steering oil
2002-11-01~2003-05-01 |
49140-54J00-000 |
— | ||
| replacement | |||||
|
9
|
9
49140-54J01-000 TANK ASSY,POWER STRG OIL2002-11-01~2003-05-01 |
49140-54J01-000 |
from US $61.36 |
||
|
10
|
10
49142-65D00-000 CAP,PS OIL TANK2002-11-01~2003-05-01 |
49142-65D00-000 |
from US $5.02 |
||
|
11
|
11
02162-06123-000
Bolt (6x12)
2002-11-01~2003-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02162-0612B-000 SCREWBolt 2002-11-01~2003-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
11
|
11
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2003-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
12
|
12
49150-52D00-000
BRACKET,PS RESERVE TANK
2002-11-01~2003-05-01 |
49150-52D00-000 |
— | ||
|
13
|
13
49160-77E01-000 PULLEY,BELT TENSION2002-11-01~2003-05-01 |
49160-77E01-000 |
from US $186.59 |
||
|
14
|
14
09103-08071-000 BOLT(8X36)2002-11-01~2003-05-01 |
09103-08071-000 |
from US $2.40 |
||
|
15
|
15
49214-52D00-000 HOSE,SUCTION2002-11-01~2003-05-01 |
49214-52D00-000 |
US $64 |
||
|
16
|
16
49220-52D00-000
HOSE ASSY,RETURN
2002-11-01~2003-05-01 |
49220-52D00-000 |
— | ||
|
17
|
17
49230-65D31-000 HOSE,PRESSURE2002-11-01~2003-05-01 |
49230-65D31-000 |
from US $177.12 |
||
|
18
|
18
09401-15404-000 CLIP2002-11-01~2003-05-01 |
09401-15404-000 |
from US $1.01 |
||
|
19
|
19
09168-14014-000 GASKET(14X18X1.5)2002-11-01~2003-05-01 |
09168-14014-000 |
from US $1.01 |
||
|
20
|
20
09168-16002-000 GASKET(16X22X2)2002-11-01~2003-05-01 |
09168-16002-000 |
from US $0.90 |
||
|
21
|
21
09360-14011-000 UNION2002-11-01~2003-05-01 |
09360-14011-000 |
US $13.44 |
||
|
22
|
22
09360-16003-000 UNION2002-11-01~2003-05-01 |
09360-16003-000 |
US $66.60 |
||
|
23
|
23
09401-20405-000 CLIPClip, tank 2002-11-01~2003-05-01 |
09401-20405-000 |
from US $5.56 |
||
|
24
|
24
01550-10253-000
Bolt
2002-11-01~2003-05-01 |
01550-10253-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-1025B-000 BoltBolt, rr swgarm bracket, l 2002-11-01~2003-05-01 |
01550-1025B-000 |
from US $5.59 |
||
|
24
|
24
01550-1025A-000 BOLTBolt, drive gear 2002-11-01~2003-05-01 |
01550-1025A-000 |
from US $1.06 |
||
|
25
|
25
01550-10603-000
Bolt
2002-11-01~2003-05-01 |
01550-10603-000 |
— | ||
| replacements | |||||
|
25
|
25
01550-1060B-000 Bolt2002-11-01~2003-05-01 |
01550-1060B-000 |
US $1.60 |
||
|
25
|
25
01550-1060A-000 Bolt2002-11-01~2003-05-01 |
01550-1060A-000 |
from US $1.60 |
||
|
26
|
26
02162-06123-000
Bolt (6x12)
2002-11-01~2003-05-01 |
02162-06123-000 |
— | ||
| replacements | |||||
|
26
|
26
02162-0612B-000 SCREWBolt 2002-11-01~2003-05-01 |
02162-0612B-000 |
from US $0.80 |
||
|
26
|
26
02162-0612A-000 SCREWBolt, bracket 2002-11-01~2003-05-01 |
02162-0612A-000 |
from US $0.80 |
||
|
27
|
27
49225-65D10-000 CLAMP,RETURN GEAR SIDE2002-11-01~2003-05-01 |
49225-65D10-000 |
US $2.98 |
||
