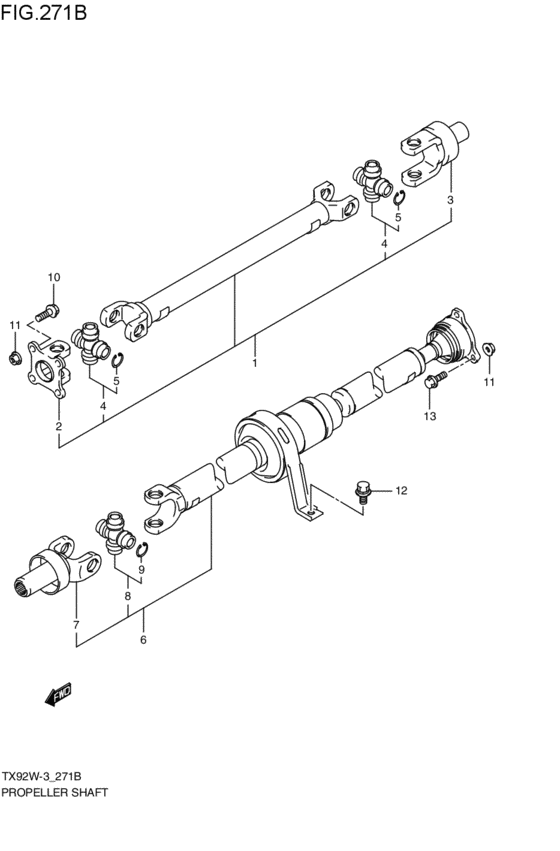

propeller shaft (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27101-85FA1-000 SHAFT ASSY,PROPELLER FRONT2002-11-01~2003-05-01 |
27101-85FA1-000 |
US $639.92 |
||
|
2
|
2
27131-56B00-000 YOKE,CROSS JOINT FLANGE2002-11-01~2003-05-01 |
27131-56B00-000 |
US $55.94 |
||
|
3
|
3
27140-60A00-000 YOKE,SLIDING2002-11-01~2003-05-01 |
27140-60A00-000 |
US $174.80 |
||
|
4
|
4
27200-83812-000
JOINT SET,UNIVERSAL
2002-11-01~2003-05-01 |
27200-83812-000 |
— | ||
| replacement | |||||
|
4
|
4
27200-83813-000 Joint Set,universal2002-11-01~2003-05-01 |
27200-83813-000 |
from US $53.48 |
||
|
5
|
5
51118-36213-000 RING,SNAP2002-11-01~2003-05-01 |
51118-36213-000 |
from US $2.24 |
||
|
6
|
6
27102-52D21-000 SHAFT ASSY,PROPELLER2002-11-01~2003-05-01 |
27102-52D21-000 |
US $2,856 |
||
|
7
|
7
27140-78E00-000
YOKE,SLIDING
2002-11-01~2003-05-01 |
27140-78E00-000 |
— | ||
|
8
|
8
27200-53830-000 JOINT ASSY,UNIVERSAL2003-04-01~2003-05-01 |
27200-53830-000 |
from US $64.58 |
||
|
8
|
8
27200-83820-000 JOINT ASSY,UNIVERSAL2002-11-01~2003-03-01 |
27200-83820-000 |
US $79.49 |
||
|
9
|
9
51118-36213-000 RING,SNAP2002-11-01~2003-05-01 |
51118-36213-000 |
from US $2.24 |
||
|
10
|
10
01500-10303-000
Bolt
2002-11-01~2003-05-01 |
01500-10303-000 |
— | ||
| replacement | |||||
|
10
|
10
01500-1030A-000 BOLT2002-11-01~2003-05-01 |
01500-1030A-000 |
from US $0.96 |
||
|
11
|
11
09159-10091-000 NUT2002-11-01~2003-05-01 |
09159-10091-000 |
US $2.88 |
||
|
12
|
12
01580-10203-000
ボルト
2002-11-01~2003-05-01 |
01580-10203-000 |
— | ||
| replacement | |||||
|
12
|
12
01580-1020A-000 Bolt2002-11-01~2003-05-01 |
01580-1020A-000 |
US $19.50 |
||
|
13
|
13
09103-10313-000
Bolt, rr swgarm bracket, l
2002-11-01~2003-05-01 |
09103-10313-000 |
— | ||
| replacement | |||||
|
13
|
13
09103-10405-000 BOLT(10X30)2002-11-01~2003-05-01 |
09103-10405-000 |
from US $1.82 |
||
