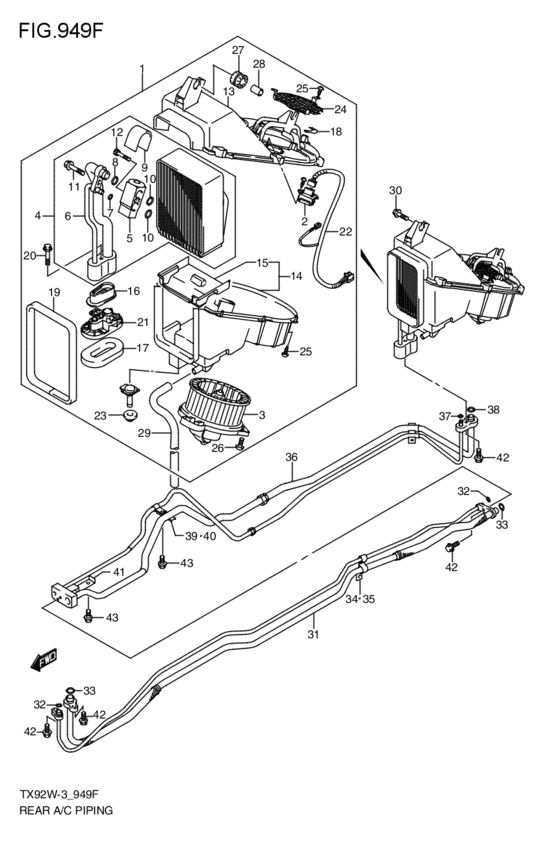

rear air-conditioner piping (リヤエアコン; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
95400-54J00-000
COOLING ASSY,RR
2002-11-01~2003-05-01 |
95400-54J00-000 |
— | ||
|
2
|
2
74140-66D00-000 RESISTOR,BLOWER MOTOR2002-11-01~2003-05-01 |
74140-66D00-000 |
US $48.58 |
||
|
3
|
3
74250-60G00-000 MOTOR2002-11-01~2003-05-01 |
74250-60G00-000 |
US $464.64 |
||
|
4
|
4
95410-54J20-000 EVAPORATOR ASSY2002-11-01~2003-05-01 |
95410-54J20-000 |
US $464.64 |
||
|
5
|
5
95431-54J20-000 VALVE,EXPANSION2002-11-01~2003-05-01 |
95431-54J20-000 |
from US $90.72 |
||
|
6
|
6
95432-54J20-000
PIPE ASSY
2002-11-01~2003-05-01 |
95432-54J20-000 |
— | ||
|
7
|
7
95891-54J00-000 O-RING2002-11-01~2003-05-01 |
95891-54J00-000 |
US $1.60 |
||
|
8
|
8
95896-54J00-000 O-RING2002-11-01~2003-05-01 |
95896-54J00-000 |
from US $1.60 |
||
|
9
|
9
95462-54J20-000
LINING
2002-11-01~2003-05-01 |
95462-54J20-000 |
— | ||
|
10
|
10
95897-54J00-000 O-RING2002-11-01~2003-05-01 |
95897-54J00-000 |
US $1.60 |
||
|
11
|
11
01550-06253-000
Bolt (6x25)
2002-11-01~2003-05-01 |
01550-06253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0625B-000 BOLTBolt, head cover 2002-11-01~2003-05-01 |
01550-0625B-000 |
from US $0.91 |
||
|
11
|
11
01550-0625A-000 BOLTBolt 2002-11-01~2003-05-01 |
01550-0625A-000 |
from US $0.96 |
||
|
12
|
12
07130-05357-000 Bolt2002-11-01~2003-05-01 |
07130-05357-000 |
US $17.30 |
||
|
13
|
13
95421-66D00-000
CASE,EVAPO,UPPER
2002-11-01~2003-05-01 |
95421-66D00-000 |
— | ||
|
14
|
14
95422-66D00-000
CASE,EVAPO,LOWER
2002-11-01~2003-05-01 |
95422-66D00-000 |
— | ||
|
15
|
15
95461-54J20-000
LINING
2002-11-01~2003-05-01 |
95461-54J20-000 |
— | ||
|
16
|
16
95435-54J00-000 GROMMET,BLOCK2002-11-01~2003-05-01 |
95435-54J00-000 |
US $5.12 |
||
|
17
|
17
95436-54J20-000
LINING
2002-11-01~2003-05-01 |
95436-54J20-000 |
— | ||
|
18
|
18
95437-54J20-000
CLIP
2002-11-01~2003-05-01 |
95437-54J20-000 |
— | ||
|
19
|
19
95463-54J20-000
LINING
2002-11-01~2003-05-01 |
95463-54J20-000 |
— | ||
|
20
|
20
02162-06163-000
Screw
2002-11-01~2003-05-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
20
|
20
02162-0616B-000 SCREWBolt, adjust 2002-11-01~2003-05-01 |
02162-0616B-000 |
from US $0.80 |
||
|
21
|
21
95434-54J20-000
CASE
2002-11-01~2003-05-01 |
95434-54J20-000 |
— | ||
|
22
|
22
95537-54J00-000
HARNESS
2002-11-01~2003-05-01 |
95537-54J00-000 |
— | ||
|
23
|
23
95851-66D00-000
CUSHION
2002-11-01~2003-05-01 |
95851-66D00-000 |
— | ||
|
24
|
24
95861-66D00-000 FILTER2002-11-01~2003-05-01 |
95861-66D00-000 |
US $43.79 |
||
|
25
|
25
02112-05123-000
Screw 5x12
2002-11-01~2003-05-01 |
02112-05123-000 |
— | ||
| replacement | |||||
|
25
|
25
02112-0512A-000 SCREW2002-11-01~2003-05-01 |
02112-0512A-000 |
from US $0.80 |
||
|
26
|
26
02142-05163-000
Bolt
2002-11-01~2003-05-01 |
02142-05163-000 |
— | ||
| replacements | |||||
|
26
|
26
02142-0516B-000 SCREW2002-11-01~2003-05-01 |
02142-0516B-000 |
from US $0.80 |
||
|
26
|
26
02142-0516A-000 SCREWScrew 2002-11-01~2003-05-01 |
02142-0516A-000 |
from US $0.76 |
||
|
27
|
27
13877-65D00-000 COLLAR,7.6X10X19.32002-11-01~2003-05-01 |
13877-65D00-000 |
US $3.04 |
||
|
28
|
28
13878-65D00-000 CUSHION,12.5X22X19.52002-11-01~2003-05-01 |
13878-65D00-000 |
US $2.74 |
||
|
29
|
29
95481-66D00-000
HOSE,DRAIN
2002-11-01~2003-05-01 |
95481-66D00-000 |
— | ||
|
30
|
30
09116-06129-000 BOLT(6X30)2002-11-01~2003-05-01 |
09116-06129-000 |
US $1.44 |
||
|
31
|
31
95733-54J00-000
パイプ,リキッド,NO.2
2002-11-01~2003-05-01 |
95733-54J00-000 |
— | ||
| replacement | |||||
|
31
|
31
95733-54J01-000 PIPE,LIQUID NO.22002-11-01~2003-05-01 |
95733-54J01-000 |
US $281.52 |
||
|
32
|
32
95891-54J00-000 O-RING2002-11-01~2003-05-01 |
95891-54J00-000 |
US $1.60 |
||
|
33
|
33
95896-54J00-000 O-RING2002-11-01~2003-05-01 |
95896-54J00-000 |
from US $1.60 |
||
|
34
|
34
95772-54J00-000
CLIP
2002-11-01~2003-05-01 |
95772-54J00-000 |
— | ||
|
35
|
35
95773-54J00-000 CLIP2002-11-01~2003-05-01 |
95773-54J00-000 |
US $10.78 |
||
|
36
|
36
95734-54J00-000
パイプ,リキッド,NO.3
2002-11-01~2003-05-01 |
95734-54J00-000 |
— | ||
| replacement | |||||
|
36
|
36
95734-54J10-000 PIPE,LIQUID NO.32002-11-01~2003-05-01 |
95734-54J10-000 |
US $220.80 |
||
|
37
|
37
95891-54J00-000 O-RING2002-11-01~2003-05-01 |
95891-54J00-000 |
US $1.60 |
||
|
38
|
38
95896-54J00-000 O-RING2002-11-01~2003-05-01 |
95896-54J00-000 |
from US $1.60 |
||
|
39
|
39
95775-54J00-000
CLIP
2002-11-01~2003-05-01 |
95775-54J00-000 |
— | ||
|
40
|
40
95776-54J00-000
CLIP
2002-11-01~2003-05-01 |
95776-54J00-000 |
— | ||
|
41
|
41
95774-54J00-000
BRACKET
2002-11-01~2003-05-01 |
95774-54J00-000 |
— | ||
|
42
|
42
01550-06203-000
Bolt
2002-11-01~2003-05-01 |
01550-06203-000 |
— | ||
| replacement | |||||
|
42
|
42
01550-0620B-000 BOLTBolt, inspection cap 2002-11-01~2003-05-01 |
01550-0620B-000 |
from US $0.76 |
||
|
43
|
43
02162-06163-000
Screw
2002-11-01~2003-05-01 |
02162-06163-000 |
— | ||
| replacement | |||||
|
43
|
43
02162-0616B-000 SCREWBolt, adjust 2002-11-01~2003-05-01 |
02162-0616B-000 |
from US $0.80 |
||
