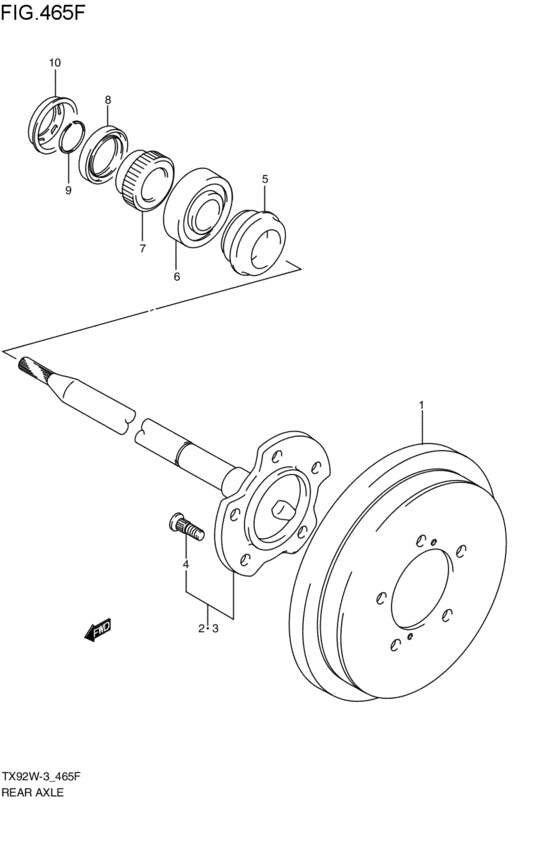

rear axle (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43511-52D00-000 DRUM,RR BRAKE2002-11-01~2003-05-01 |
43511-52D00-000 |
from US $181.06 |
||
|
2
|
2
44210-52811-000 SHAFT, REAR AXLE, RH2002-11-01~2003-05-01 |
44210-52811-000 |
from US $367.88 |
||
|
3
|
3
44220-52811-000 SHAFT, REAR AXLE, LH2002-11-01~2003-05-01 |
44220-52811-000 |
US $393.68 |
||
|
4
|
4
09119-12012-000 BOLT(12X38)2002-11-01~2003-05-01 |
09119-12012-000 |
from US $1.26 |
||
|
5
|
5
43594-52D00-000 PLATE,DEFLECTOR,DUST2002-11-01~2003-05-01 |
43594-52D00-000 |
from US $13.14 |
||
|
6
|
6
43591-54J00-000
ベアリング,リヤホイールハブ
2002-11-01~2003-05-01 |
43591-54J00-000 |
— | ||
| replacement | |||||
|
6
|
6
43591-52D00-000 BEARING,RR WHEEL2002-11-01~2003-05-01 |
43591-52D00-000 |
from US $131.15 |
||
|
7
|
7
43485-52D50-000 RING,RR WHEEL BRG RETAINER2002-11-01~2003-05-01 |
43485-52D50-000 |
from US $46.91 |
||
|
8
|
8
43592-52D00-000 SEAL,RR SHAFT OIL INNER2002-11-01~2003-05-01 |
43592-52D00-000 |
from US $15.12 |
||
|
9
|
9
43596-52D00-000 RING,RETAINING CLIP2002-11-01~2003-05-01 |
43596-52D00-000 |
from US $1.60 |
||
|
10
|
10
43588-52D00-000 PROTECTOR,OIL SEAL2002-11-01~2003-05-01 |
43588-52D00-000 |
from US $1.92 |
||
