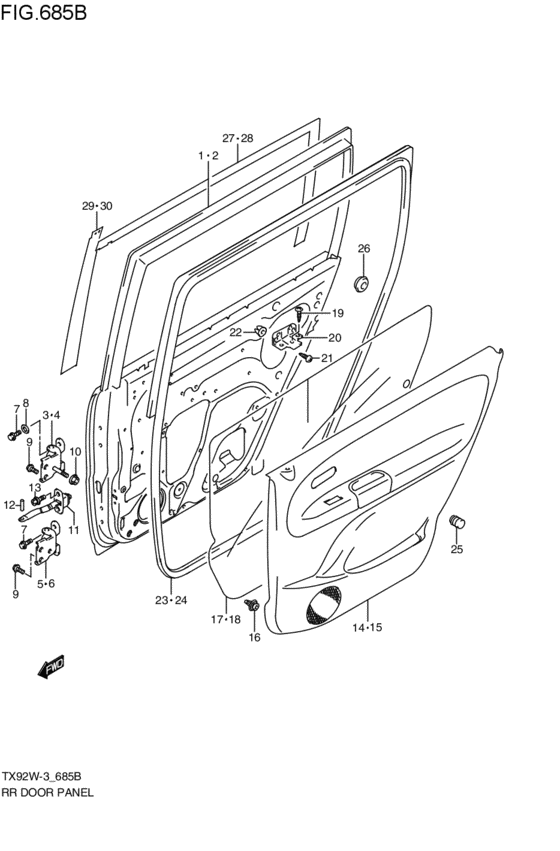

rear door panel (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
68003-52820-000
パネルアッシ,リヤドア,ライト
2002-11-01~2003-05-01 |
68003-52820-000 |
— | ||
| replacement | |||||
|
1
|
1
68003-52821-000 PANEL ASSY,REAR DOOR,R2002-11-01~2003-05-01 |
68003-52821-000 |
US $739.20 |
||
|
2
|
2
68004-52820-000
パネルアッシ,リヤドア,レフト
2002-11-01~2003-05-01 |
68004-52820-000 |
— | ||
| replacement | |||||
|
2
|
2
68004-52821-000 PANEL ASSY,REAR DOOR,L2002-11-01~2003-05-01 |
68004-52821-000 |
US $739.20 |
||
|
3
|
3
69410-65D00-000
ヒンジ,リヤドアアッパ,ライト
2002-11-01~2003-05-01 |
69410-65D00-000 |
— | ||
| replacement | |||||
|
3
|
3
69410-65D0V-000 HINGE,RR DOOR UPR,R2002-11-01~2003-05-01 |
69410-65D0V-000 |
US $44.16 |
||
|
4
|
4
69420-65D00-000
ヒンジ,リヤドアアッパ,レフト
2002-11-01~2003-05-01 |
69420-65D00-000 |
— | ||
| replacement | |||||
|
4
|
4
69420-65D0V-000 HINGE,RR DOOR UPR,L2002-11-01~2003-05-01 |
69420-65D0V-000 |
US $44.16 |
||
|
5
|
5
69430-65D00-000 HINGE,RR DOOR NO.12002-11-01~2003-05-01 |
69430-65D00-000 |
US $33.30 |
||
|
6
|
6
69440-65D00-000 HINGE,RR DOOR NO.22002-11-01~2003-05-01 |
69440-65D00-000 |
US $33.30 |
||
|
7
|
7
09103-08389-000 BOLT(8X24)2002-11-01~2003-05-01 |
09103-08389-000 |
US $17.30 |
||
|
8
|
8
69480-65D00-000
Washer
2002-11-01~2003-05-01 |
69480-65D00-000 |
— | ||
|
9
|
9
01551-08203-000
Bolt
2002-11-01~2003-05-01 |
01551-08203-000 |
— | ||
| replacement | |||||
|
9
|
9
01551-0820A-000 BOLT2002-11-01~2003-05-01 |
01551-0820A-000 |
from US $0.96 |
||
|
10
|
10
08361-25083-000
Nut
2002-11-01~2003-05-01 |
08361-25083-000 |
— | ||
| replacement | |||||
|
10
|
10
08361-2508A-000 NUT2002-11-01~2003-05-01 |
08361-2508A-000 |
from US $0.80 |
||
|
11
|
11
81830-65D01-000 STOP,REAR DOOR OPEN2002-11-01~2003-05-01 |
81830-65D01-000 |
from US $32.02 |
||
|
12
|
12
81831-70B00-000 PIN,DOOR OPEN STOPPER BODY2002-11-01~2003-05-01 |
81831-70B00-000 |
US $1.60 |
||
|
13
|
13
02162-06203-000
Bolt
2002-11-01~2003-05-01 |
02162-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
02162-0620C-000 SCREW2002-11-01~2003-05-01 |
02162-0620C-000 |
from US $0.77 |
||
|
14
|
14
83730-52DC1-KL1
トリム,リヤドア,ライト
グレー; 2002-11-01~2003-05-01 |
83730-52DC1-KL1 |
— | ||
| replacement | |||||
|
14
|
14
83730-52DC2-KL1
TRIM,REAR DOOR,R
グレー; 2002-11-01~2003-05-01 |
83730-52DC2-KL1 |
— | ||
|
14
|
14
83730-52DC1-KL2
トリム,リヤドア,ライト
ベージュ; 2002-11-01~2003-05-01 |
83730-52DC1-KL2 |
— | ||
| replacement | |||||
|
14
|
14
83730-52DC2-KL2
TRIM,REAR DOOR,R
ベージュ; 2002-11-01~2003-05-01 |
83730-52DC2-KL2 |
— | ||
|
15
|
15
83740-52DC1-KL1
トリム,リヤドア,レフト
グレー; 2002-11-01~2003-05-01 |
83740-52DC1-KL1 |
— | ||
| replacement | |||||
|
15
|
15
83740-52DC2-KL1
TRIM,REAR DOOR,L
グレー; 2002-11-01~2003-05-01 |
83740-52DC2-KL1 |
— | ||
|
15
|
15
83740-52DC1-KL2
トリム,リヤドア,レフト
ベージュ; 2002-11-01~2003-05-01 |
83740-52DC1-KL2 |
— | ||
| replacement | |||||
|
15
|
15
83740-52DC2-KL2
TRIM,REAR DOOR,L
ベージュ; 2002-11-01~2003-05-01 |
83740-52DC2-KL2 |
— | ||
|
16
|
16
09409-08320-000 CLIP2002-11-01~2003-05-01 |
09409-08320-000 |
from US $1.15 |
||
|
17
|
17
83913-52D00-000
COVER,RR DR SEALING,R
2002-11-01~2003-05-01 |
83913-52D00-000 |
— | ||
|
18
|
18
83914-52D00-000
COVER,RR DR SEALING,L
2002-11-01~2003-05-01 |
83914-52D00-000 |
— | ||
|
19
|
19
03142-04163-000
Screw
2002-11-01~2003-05-01 |
03142-04163-000 |
— | ||
| replacement | |||||
|
19
|
19
03141-0416A-000 SCREW2002-11-01~2003-05-01 |
03141-0416A-000 |
from US $0.80 |
||
|
20
|
20
84482-65D00-000 BRACKET,DR INSIDE PULL HANDLE2002-11-01~2003-05-01 |
84482-65D00-000 |
US $4.16 |
||
|
21
|
21
03242-06163-000
Screw
2002-11-01~2003-05-01 |
03242-06163-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0616C-000 SCREW2002-11-01~2003-05-01 |
03241-0616C-000 |
from US $0.76 |
||
|
22
|
22
09148-06007-000 NUT2002-11-01~2003-05-01 |
09148-06007-000 |
from US $0.88 |
||
|
23
|
23
84661-52D00-000 WEATHERSTRIP,RR DR OPNG,R2002-11-01~2003-05-01 |
84661-52D00-000 |
US $201.60 |
||
|
24
|
24
84671-52D00-000 WEATHERSTRIP,RR DR OPNG,L2002-11-01~2003-05-01 |
84671-52D00-000 |
US $201.60 |
||
|
25
|
25
82711-56B00-000 STOPPER,FR DOORStopper, fr dr lower 2002-11-01~2003-05-01 |
82711-56B00-000 |
from US $2.88 |
||
|
26
|
26
09250-20015-000 CAP(OD:28.5)Cap, air con harness 2002-11-01~2003-05-01 |
09250-20015-000 |
from US $0.79 |
||
|
27
|
27
83925-52D00-0CB TAPE,RR DR SASH ROOF,Rブラック; 2002-11-01~2003-05-01 |
83925-52D00-0CB |
US $73.97 |
||
|
28
|
28
83926-52D00-0CB TAPE,RR DR SASH ROOF,Lブラック; 2002-11-01~2003-05-01 |
83926-52D00-0CB |
US $73.97 |
||
|
29
|
29
83927-65D00-0CB
Tape,rear door pillar,r(black)
ブラック; 2002-11-01~2003-05-01 |
83927-65D00-0CB |
— | ||
| replacement | |||||
|
29
|
29
83927-65D10-0CB TAPE,RR DOOR SASH PLR Rブラック; 2002-11-01~2003-05-01 |
83927-65D10-0CB |
US $30.18 |
||
|
30
|
30
83928-65D00-0CB
Tape,rear door pillar,l(black)
ブラック; 2002-11-01~2003-05-01 |
83928-65D00-0CB |
— | ||
| replacement | |||||
|
30
|
30
83928-65D10-0CB TAPE,RR DOOR SASH PLR Lブラック; 2002-11-01~2003-05-01 |
83928-65D10-0CB |
US $30.18 |
||
