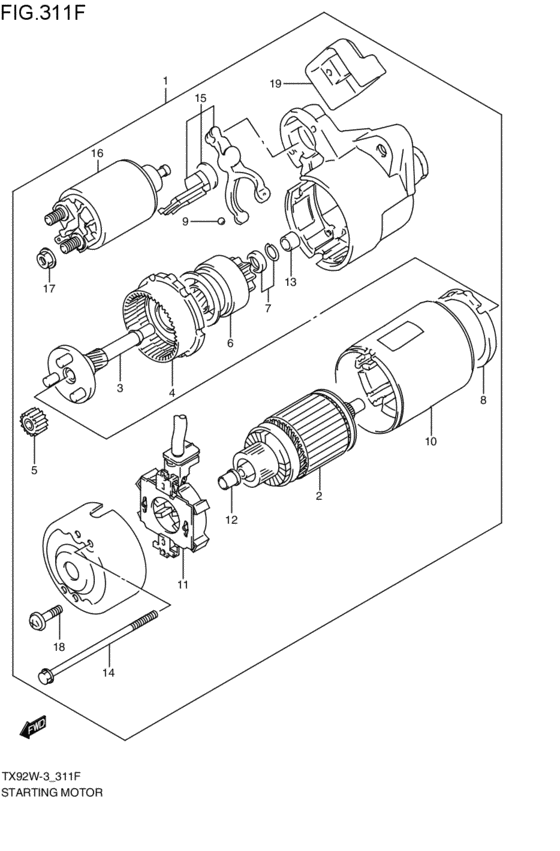

starting motor (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-67D20-000 MOTOR ASSY,STARTING2002-11-01~2003-05-01 |
31100-67D20-000 |
US $675.84 |
||
| replacement | |||||
|
1
|
1
31100-67D20-REM
Starting motor
2002-11-01~2003-05-01 |
31100-67D20-REM |
— | ||
|
2
|
2
31311-67D20-000
ARMATURE ASSY
2002-11-01~2003-05-01 |
31311-67D20-000 |
— | ||
|
3
|
3
31341-67D10-000 SHAFT ASSY,GEAR2002-11-01~2003-05-01 |
31341-67D10-000 |
US $312.80 |
||
|
4
|
4
31343-60A00-000
GEAR ASSY,INTERNAL
2002-11-01~2003-05-01 |
31343-60A00-000 |
— | ||
|
5
|
5
31344-86030-000 GEAR,PLNTY2002-11-01~2003-05-01 |
31344-86030-000 |
US $27.60 |
||
|
6
|
6
31320-86030-000 CLUTCH,OVER RUNNING2002-11-01~2003-05-01 |
31320-86030-000 |
US $111.50 |
||
|
7
|
7
31313-86030-000
STOPPER SET
2002-11-01~2003-05-01 |
31313-86030-000 |
— | ||
| replacement | |||||
|
7
|
7
31314-86030-000 Stopper Set2002-11-01~2003-05-01 |
31314-86030-000 |
from US $10.53 |
||
|
8
|
8
31345-60A00-000 PACKING2002-11-01~2003-05-01 |
31345-60A00-000 |
US $5.37 |
||
|
9
|
9
31193-86030-000 BALL2002-11-01~2003-05-01 |
31193-86030-000 |
US $2.80 |
||
|
10
|
10
31110-67D20-000
YOKE ASSY
2002-11-01~2003-05-01 |
31110-67D20-000 |
— | ||
|
11
|
11
31173-60A22-000 HOLDER ASSY,BRUSH2002-11-01~2003-05-01 |
31173-60A22-000 |
from US $63.84 |
||
|
12
|
12
31172-64B60-000 BEARING,REAR2002-11-01~2003-05-01 |
31172-64B60-000 |
US $10.56 |
||
|
13
|
13
31152-79030-000 BEARING,FRONT2002-11-01~2003-05-01 |
31152-79030-000 |
from US $4.68 |
||
|
14
|
14
31261-67D20-000 Bolt2002-11-01~2003-05-01 |
31261-67D20-000 |
US $6.51 |
||
|
15
|
15
31191-86030-000
LEVER ASSY
2002-11-01~2003-05-01 |
31191-86030-000 |
— | ||
|
16
|
16
31220-86032-000 SWITCH ASSY2002-11-01~2003-05-01 |
31220-86032-000 |
US $128.80 |
||
|
17
|
17
08316-10083-000
Nut
2002-11-01~2003-05-01 |
08316-10083-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1008B-000 NUT2002-11-01~2003-05-01 |
08316-1008B-000 |
from US $0.76 |
||
|
18
|
18
31136-79030-000
SCREW ASSY
2002-11-01~2003-05-01 |
31136-79030-000 |
— | ||
| replacement | |||||
|
18
|
18
31175-79030-000 Screw Set2002-11-01~2003-05-01 |
31175-79030-000 |
US $8.16 |
||
|
19
|
19
31385-67D10-000
HEAT PROTECTOR
2002-11-01~2003-05-01 |
31385-67D10-000 |
— | ||
