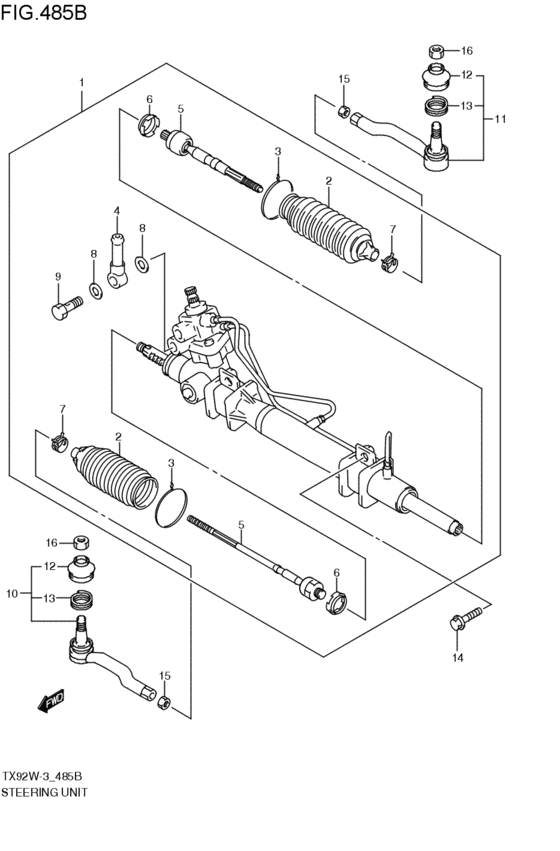

steering unit (2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
48580-54J00-000
GEAR ASSY,POWER STEERING
2003-05-01~2003-05-01 |
48580-54J00-000 |
— | ||
|
1
|
1
48580-65D01-000 GEAR ASSY,POWER STEERING2002-11-01~2003-04-01 |
48580-65D01-000 |
US $2,560 |
||
|
2
|
2
48571-65D00-000 BOOT,STEERING2002-11-01~2003-05-01 |
48571-65D00-000 |
from US $20.48 |
||
|
3
|
3
48575-54J00-000 WIRE,RACK BOOT2003-05-01~2003-05-01 |
48575-54J00-000 |
US $4.86 |
||
|
3
|
3
48575-65D00-000 WIRE,RACK BOOT2002-11-01~2003-04-01 |
48575-65D00-000 |
from US $2.40 |
||
|
4
|
4
48516-65D00-000 PIPE,RETURN2002-11-01~2003-05-01 |
48516-65D00-000 |
US $24.80 |
||
|
5
|
5
48830-65D00-000 TIE-ROD,STEERING2002-11-01~2003-05-01 |
48830-65D00-000 |
from US $72 |
||
|
6
|
6
48841-54J00-000 WASHER,STEERING TIE ROD LOCK2003-05-01~2003-05-01 |
48841-54J00-000 |
from US $8.06 |
||
|
6
|
6
48841-65D00-000 WASHER,STEERING TIE ROD LOCK2002-11-01~2003-04-01 |
48841-65D00-000 |
from US $2.90 |
||
|
7
|
7
09401-16403-000 CLIPClip, 2nd air hose no.2 2002-11-01~2003-05-01 |
09401-16403-000 |
from US $3.86 |
||
|
8
|
8
09168-14014-000 GASKET(14X18X1.5)2002-11-01~2003-05-01 |
09168-14014-000 |
from US $1.01 |
||
|
9
|
9
09360-14011-000 UNION2002-11-01~2003-05-01 |
09360-14011-000 |
US $13.44 |
||
|
10
|
10
48810-65D00-000
エンド,ステアリングタイロッド,ライト
2002-11-01~2003-05-01 |
48810-65D00-000 |
— | ||
| replacements | |||||
|
10
|
10
48810-65D01-000 END,STEERING TIE-ROD,R2002-11-01~2003-05-01 |
48810-65D01-000 |
from US $62.28 |
||
|
10
|
10
04111-3020A-000 PIN2002-11-01~2003-05-01 |
04111-3020A-000 |
from US $0.59 |
||
|
10
|
10
08314-4012A-000 NUT2002-11-01~2003-05-01 |
08314-4012A-000 |
from US $0.95 |
||
|
11
|
11
48820-65D00-000
エンド,ステアリングタイロッド,レフト
2002-11-01~2003-05-01 |
48820-65D00-000 |
— | ||
| replacements | |||||
|
11
|
11
48820-65D01-000 END,STEERING TIE-ROD,L2002-11-01~2003-05-01 |
48820-65D01-000 |
from US $72.20 |
||
|
11
|
11
04111-3020A-000 PIN2002-11-01~2003-05-01 |
04111-3020A-000 |
from US $0.59 |
||
|
11
|
11
08314-4012A-000 NUT2002-11-01~2003-05-01 |
08314-4012A-000 |
from US $0.95 |
||
|
12
|
12
48806-80000-000
BOOT SET
2002-11-01~2003-05-01 |
48806-80000-000 |
— | ||
| replacements | |||||
|
12
|
12
48806-80001-000
Boot Set
2002-11-01~2003-05-01 |
48806-80001-000 |
— | ||
|
12
|
12
48800-80810-000 Boot Set2002-11-01~2003-05-01 |
48800-80810-000 |
US $32 |
||
|
13
|
13
09401-27402-000 CLIP2002-11-01~2003-05-01 |
09401-27402-000 |
US $1.44 |
||
|
14
|
14
01551-10253-000
Bolt
2002-11-01~2003-05-01 |
01551-10253-000 |
— | ||
| replacement | |||||
|
14
|
14
01551-1025A-000 Bolt2002-11-01~2003-05-01 |
01551-1025A-000 |
US $1.12 |
||
|
15
|
15
08310-00143-000
Nut
2002-11-01~2003-05-01 |
08310-00143-000 |
— | ||
| replacement | |||||
|
15
|
15
08310-0014A-000 NUT2002-11-01~2003-05-01 |
08310-0014A-000 |
from US $0.91 |
||
|
16
|
16
09159-12052-000 NUT2002-11-01~2003-05-01 |
09159-12052-000 |
US $1.44 |
||
