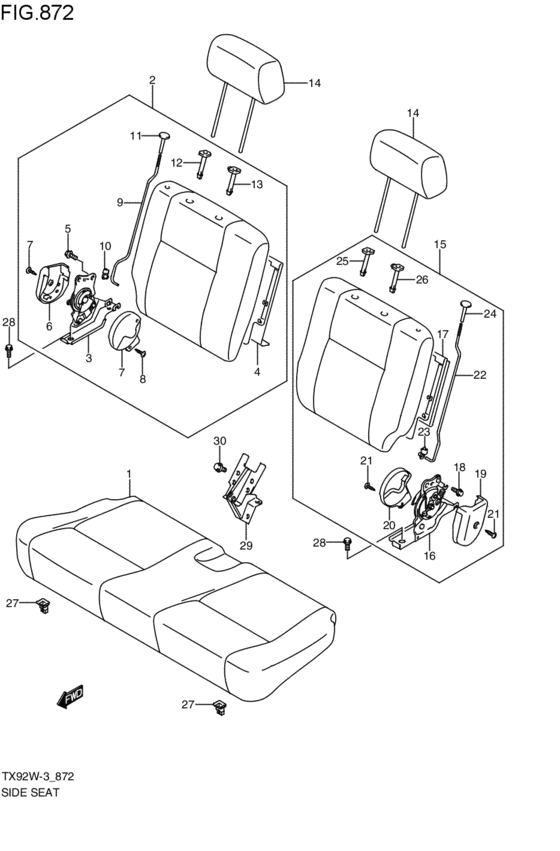

the third seat (サードシート; 2002-11-01~2003-05-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- grade
- LZ
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
88101-54JA0-KK2
Cushion assy,3rd
グレー; 2002-11-01~2003-05-01 |
88101-54JA0-KK2 |
— | ||
|
1
|
1
88101-54JA0-KK4
Cushion assy,3rd
ベージュ; 2002-11-01~2003-05-01 |
88101-54JA0-KK4 |
— | ||
|
2
|
2
88301-54J10-KK2
BACK ASSY,3RD,R(GRAY)
グレー; 2002-11-01~2003-05-01 |
88301-54J10-KK2 |
— | ||
|
2
|
2
88301-54J10-KK4
Back assy,3rd,r
ベージュ; 2002-11-01~2003-05-01 |
88301-54J10-KK4 |
— | ||
|
3
|
3
88210-52DA0-000
リクライニングアッシ,サード,ライト
2002-11-01~2003-05-01 |
88210-52DA0-000 |
— | ||
| replacement | |||||
|
3
|
3
88210-52DA1-000
RECLINING ASSY,RR,R
2002-11-01~2003-05-01 |
88210-52DA1-000 |
— | ||
|
4
|
4
88389-52DC0-000
COVER,3RD BACK PAD
2002-11-01~2003-05-01 |
88389-52DC0-000 |
— | ||
|
5
|
5
01550-10203-000
Bolt
2002-11-01~2003-05-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-1020A-000 BOLTBolt, bal sprocket 2002-11-01~2003-05-01 |
01550-1020A-000 |
from US $0.96 |
||
|
6
|
6
87221-65DL0-R8H
COVER,RCLNG OUTSIDE,R
ベ-ジユ; 2002-11-01~2003-05-01 |
87221-65DL0-R8H |
— | ||
|
6
|
6
87221-65DL0-R8J
Cover,rclng outside,r(gray)
グレ-; 2002-11-01~2003-05-01 |
87221-65DL0-R8J |
— | ||
|
7
|
7
88222-52DA0-R8H
COVER,RCLNG INSIDE,R
ベ-ジユ; 2002-11-01~2003-05-01 |
88222-52DA0-R8H |
— | ||
|
7
|
7
88222-52DA0-R8J
COVER,3RD RCLNG INSIDE,R
グレ-; 2002-11-01~2003-05-01 |
88222-52DA0-R8J |
— | ||
|
8
|
8
03242-05123-000
Screw, inner cover
2002-11-01~2003-05-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0512A-000 SCREW2002-11-01~2003-05-01 |
03241-0512A-000 |
from US $0.68 |
||
|
9
|
9
88215-52DA0-000
ROD,3RD RCLNG,R
2002-11-01~2003-05-01 |
88215-52DA0-000 |
— | ||
|
10
|
10
09403-04306-000 CLAMPConnector, choke rod 2002-11-01~2003-05-01 |
09403-04306-000 |
US $20.20 |
||
|
11
|
11
87211-74G00-R8H
Knob,3rd rclng
ベ-ジユ; 2002-11-01~2003-05-01 |
87211-74G00-R8H |
— | ||
| replacement | |||||
|
11
|
11
87211-74G10-R8H KNOB,RR BACKベ-ジユ; 2002-11-01~2003-05-01 |
87211-74G10-R8H |
US $5.76 |
||
|
11
|
11
87211-74G00-R8J
Knob,3rd rclng(gray)
グレ-; 2002-11-01~2003-05-01 |
87211-74G00-R8J |
— | ||
| replacement | |||||
|
11
|
11
87211-74G10-R8J KNOB,RR BACKグレ-; 2002-11-01~2003-05-01 |
87211-74G10-R8J |
US $4.16 |
||
|
12
|
12
85341-81A00-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2002-11-01~2003-05-01 |
85341-81A00-R8H |
US $6.04 |
||
|
12
|
12
85341-81A00-R8J GUIDE,HEADRESTRAINTグレ-; 2002-11-01~2003-05-01 |
85341-81A00-R8J |
US $6.04 |
||
|
13
|
13
85840-81A10-R8J GUIDE,HEADRESTRAINTグレ-; 2002-11-01~2003-05-01 |
85840-81A10-R8J |
US $13.73 |
||
|
13
|
13
85840-81A10-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2002-11-01~2003-05-01 |
85840-81A10-R8H |
US $11.63 |
||
|
14
|
14
86401-55G70-R9F
Headrestraint assy
グレー; 2002-11-01~2003-05-01 |
86401-55G70-R9F |
— | ||
| replacement | |||||
|
14
|
14
86401-55G71-R9F
HEADRESTRAINT ASSY
グレー; 2002-11-01~2003-05-01 |
86401-55G71-R9F |
— | ||
|
14
|
14
86401-55G70-R9G
HEADRESTRAINT ASSY
ベ-ジユ; 2002-11-01~2003-05-01 |
86401-55G70-R9G |
— | ||
|
15
|
15
88302-54J10-KK2
BACK ASSY,3RD,L(GRAY)
グレー; 2002-11-01~2003-05-01 |
88302-54J10-KK2 |
— | ||
|
15
|
15
88302-54J10-KK4
Back assy,3rd,l
ベージュ; 2002-11-01~2003-05-01 |
88302-54J10-KK4 |
— | ||
|
16
|
16
88710-52DA0-000
リクライニングアッシ,サード,レフト
2002-11-01~2003-05-01 |
88710-52DA0-000 |
— | ||
| replacement | |||||
|
16
|
16
88710-52DA1-000
RECLINING ASSY,RR,L
2002-11-01~2003-05-01 |
88710-52DA1-000 |
— | ||
|
17
|
17
88389-52DC0-000
COVER,3RD BACK PAD
2002-11-01~2003-05-01 |
88389-52DC0-000 |
— | ||
|
18
|
18
01550-10203-000
Bolt
2002-11-01~2003-05-01 |
01550-10203-000 |
— | ||
| replacement | |||||
|
18
|
18
01550-1020A-000 BOLTBolt, bal sprocket 2002-11-01~2003-05-01 |
01550-1020A-000 |
from US $0.96 |
||
|
19
|
19
87721-65DL0-R8H
COVER,RCLNG OUTSIDE,L
ベ-ジユ; 2002-11-01~2003-05-01 |
87721-65DL0-R8H |
— | ||
|
19
|
19
87721-65DL0-R8J
COVER,RCLNG OUTSIDE,L
グレ-; 2002-11-01~2003-05-01 |
87721-65DL0-R8J |
— | ||
|
20
|
20
88722-52DA0-R8H
COVER,RCLNG INSIDE,L
ベ-ジユ; 2002-11-01~2003-05-01 |
88722-52DA0-R8H |
— | ||
|
20
|
20
88722-52DA0-R8J
COVER,RCLNG INSIDE,L
グレ-; 2002-11-01~2003-05-01 |
88722-52DA0-R8J |
— | ||
|
21
|
21
03242-05123-000
Screw, inner cover
2002-11-01~2003-05-01 |
03242-05123-000 |
— | ||
| replacement | |||||
|
21
|
21
03241-0512A-000 SCREW2002-11-01~2003-05-01 |
03241-0512A-000 |
from US $0.68 |
||
|
22
|
22
88715-52DA0-000
ROD,3RD RCLNG,L
2002-11-01~2003-05-01 |
88715-52DA0-000 |
— | ||
|
23
|
23
09403-04306-000 CLAMPConnector, choke rod 2002-11-01~2003-05-01 |
09403-04306-000 |
US $20.20 |
||
|
24
|
24
87211-74G00-R8H
Knob,3rd rclng
ベ-ジユ; 2002-11-01~2003-05-01 |
87211-74G00-R8H |
— | ||
| replacement | |||||
|
24
|
24
87211-74G10-R8H KNOB,RR BACKベ-ジユ; 2002-11-01~2003-05-01 |
87211-74G10-R8H |
US $5.76 |
||
|
24
|
24
87211-74G00-R8J
Knob,3rd rclng(gray)
グレ-; 2002-11-01~2003-05-01 |
87211-74G00-R8J |
— | ||
| replacement | |||||
|
24
|
24
87211-74G10-R8J KNOB,RR BACKグレ-; 2002-11-01~2003-05-01 |
87211-74G10-R8J |
US $4.16 |
||
|
25
|
25
85341-81A00-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2002-11-01~2003-05-01 |
85341-81A00-R8H |
US $6.04 |
||
|
25
|
25
85341-81A00-R8J GUIDE,HEADRESTRAINTグレ-; 2002-11-01~2003-05-01 |
85341-81A00-R8J |
US $6.04 |
||
|
26
|
26
85840-81A10-R8J GUIDE,HEADRESTRAINTグレ-; 2002-11-01~2003-05-01 |
85840-81A10-R8J |
US $13.73 |
||
|
26
|
26
85840-81A10-R8H GUIDE,HEADRESTRAINTベ-ジユ; 2002-11-01~2003-05-01 |
85840-81A10-R8H |
US $11.63 |
||
|
27
|
27
87460-76G01-000 HOOK,RR SEAT CUSH2002-11-01~2003-05-01 |
87460-76G01-000 |
from US $1.92 |
||
|
28
|
28
01551-10203-000
Bolt, 3rd striker
2002-11-01~2003-05-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
28
|
28
01551-1020A-000 Bolt2002-11-01~2003-05-01 |
01551-1020A-000 |
US $17.30 |
||
|
29
|
29
88950-52DA0-000
HINGE,3RD BACK CTR
2002-11-01~2003-05-01 |
88950-52DA0-000 |
— | ||
|
30
|
30
01551-10203-000
Bolt, 3rd striker
2002-11-01~2003-05-01 |
01551-10203-000 |
— | ||
| replacement | |||||
|
30
|
30
01551-1020A-000 Bolt2002-11-01~2003-05-01 |
01551-1020A-000 |
US $17.30 |
||
