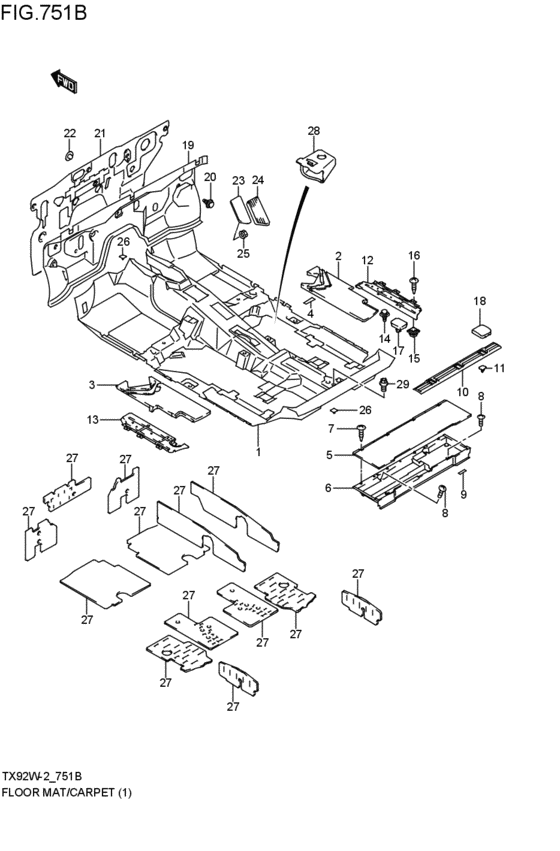

floor mat / carpet (LZ; 2000-11-01~2002-11-01) Diagram Suzuki ESCUDO
- Year
- 2002 - 2011
- Sales region
- Japan
- Engine
- H27A
- drive
- 4WD
- transmission
- AT
- Number of doors
- 5DR
- grade
- KAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75160-52D10-P8A
カーペット,フロントフロア(グレー)
グレ-; LZ; 2000-11-01~2001-02-01 |
75160-52D10-P8A |
— | ||
| replacement | |||||
|
1
|
1
75160-52D11-P8A
CARPET,FR FL
グレ-; LZ; 2000-11-01~2001-02-01 |
75160-52D11-P8A |
— | ||
|
1
|
1
75160-52D12-P8A
CARPET,FR FL
グレ-; LZ; 2001-02-01~2002-11-01 |
75160-52D12-P8A |
— | ||
|
2
|
2
75172-52D00-000
PAD,FRONT FLOOR,R
LZ; 2000-11-01~2001-06-01 |
75172-52D00-000 |
— | ||
|
2
|
2
75172-52D01-000
PAD,FRONT FLOOR,R
LZ; 2001-06-01~2002-11-01 |
75172-52D01-000 |
— | ||
|
3
|
3
75173-52D00-000
PAD,FRONT FLOOR,L
LZ; 2000-11-01~2001-06-01 |
75173-52D00-000 |
— | ||
|
3
|
3
75173-52D01-000
PAD,FRONT FLOOR,L
LZ; 2001-06-01~2002-11-01 |
75173-52D01-000 |
— | ||
|
4
|
4
36930-82010-000 COVER,HARNESSCover, roof wire LZ; 2000-11-01~2002-11-01 |
36930-82010-000 |
from US $1.73 |
||
|
5
|
5
75540-52D01-P8A
リッド,リヤラゲッジボックス(グレー)
グレ-; LZ; 2000-11-01~2001-12-01 |
75540-52D01-P8A |
— | ||
| replacement | |||||
|
5
|
5
75540-52D01-R1K
LID,RR LUGGAGE BOX
グレ-; LZ; 2000-11-01~2001-12-01 |
75540-52D01-R1K |
— | ||
|
5
|
5
75540-52D01-R1K
LID,RR LUGGAGE BOX
グレー; LZ; 2002-01-01~2002-11-01 |
75540-52D01-R1K |
— | ||
|
6
|
6
75550-52D00-T01
ボックス,リヤラゲッジ(グレー)
グレ-; LZ; 2000-11-01~2001-01-01 |
75550-52D00-T01 |
— | ||
| replacements | |||||
|
6
|
6
75550-52D01-T01
BX,LUGGAGE BOX
グレ-; LZ; 2000-11-01~2001-01-01 |
75550-52D01-T01 |
— | ||
|
6
|
6
75540-52D01-R1K
LID,RR LUGGAGE BOX
グレ-; LZ; 2000-11-01~2001-01-01 |
75540-52D01-R1K |
— | ||
|
6
|
6
75550-52D01-T01
BX,LUGGAGE BOX
グレ-; LZ; 2001-01-01~2002-11-01 |
75550-52D01-T01 |
— | ||
|
7
|
7
03541-05163-000
Screw
LZ; 2000-11-01~2002-11-01 |
03541-05163-000 |
— | ||
| replacement | |||||
|
7
|
7
03541-0516A-000 SCREWLZ; 2000-11-01~2002-11-01 |
03541-0516A-000 |
from US $0.68 |
||
|
8
|
8
02142-06123-000
Screw
LZ; 2000-11-01~2002-11-01 |
02142-06123-000 |
— | ||
| replacements | |||||
|
8
|
8
02142-0612B-000 SCREWLZ; 2000-11-01~2002-11-01 |
02142-0612B-000 |
from US $0.76 |
||
|
8
|
8
02142-0612A-000 SCREWLZ; 2000-11-01~2002-11-01 |
02142-0612A-000 |
from US $0.80 |
||
|
9
|
9
75181-52D00-000
SEAL,RR FLOOR RR
LZ; 2000-11-01~2002-11-01 |
75181-52D00-000 |
— | ||
|
10
|
10
75191-65D10-T01
GARNISH,LUGGAGE MAT END
グレ-; LZ; 2000-11-01~2002-11-01 |
75191-65D10-T01 |
— | ||
|
11
|
11
77259-71B00-000 CLIPLZ; 2000-11-01~2002-11-01 |
77259-71B00-000 |
US $2.08 |
||
|
12
|
12
75560-52D00-000
PLATE,FLOOR STEP,R
LZ; 2000-11-01~2001-06-01 |
75560-52D00-000 |
— | ||
| replacement | |||||
|
12
|
12
75560-52DV0-000
PLATE,FLOOR STEP,R
LZ; 2000-11-01~2001-06-01 |
75560-52DV0-000 |
— | ||
|
12
|
12
75560-52D10-000
プレート,フロアステップ,ライト
LZ; 2001-06-01~2002-11-01 |
75560-52D10-000 |
— | ||
| replacement | |||||
|
12
|
12
75560-52D11-000 PLATE,FLOOR STEP,RLZ; 2001-06-01~2002-11-01 |
75560-52D11-000 |
US $58.51 |
||
|
13
|
13
75570-52D00-000
プレート,フロアステップ,レフト
LZ; 2000-11-01~2002-11-01 |
75570-52D00-000 |
— | ||
| replacement | |||||
|
13
|
13
75570-52D01-000
PLATE,FLOOR STEP,L
LZ; 2000-11-01~2002-11-01 |
75570-52D01-000 |
— | ||
|
14
|
14
09409-08334-000 CLIPLZ; 2000-11-01~2002-11-01 |
09409-08334-000 |
from US $1.10 |
||
|
15
|
15
09148-05018-000 NUTLZ; 2000-11-01~2002-11-01 |
09148-05018-000 |
from US $0.61 |
||
|
16
|
16
03541-05123-000
Screw
LZ; 2000-11-01~2002-11-01 |
03541-05123-000 |
— | ||
| replacement | |||||
|
16
|
16
03541-0512B-000 SCREWLZ; 2000-11-01~2002-11-01 |
03541-0512B-000 |
from US $0.76 |
||
|
17
|
17
75563-52D00-000
PLUG,SEAT MTG HOLE
LZ; 2001-06-01~2002-11-01 |
75563-52D00-000 |
— | ||
|
18
|
18
75192-65D20-T01 CAP,MAT END GARNISHグレ-; LZ; 2000-11-01~2002-11-01 |
75192-65D20-T01 |
US $4.97 |
||
|
19
|
19
75210-65D12-000
SILENCER,DASH PANEL
LZ; 2000-11-01~2002-11-01 |
75210-65D12-000 |
— | ||
|
20
|
20
09148-05042-000 CLIPLZ; 2000-11-01~2002-11-01 |
09148-05042-000 |
US $1.12 |
||
|
21
|
21
75280-65D11-000
SILENCER,DASH OUTER
LZ; 2000-11-01~2002-11-01 |
75280-65D11-000 |
— | ||
|
22
|
22
09148-05037-000 CLIPLZ; 2000-11-01~2002-11-01 |
09148-05037-000 |
from US $1.24 |
||
|
23
|
23
75810-56B00-000
PEDAL,FOOTREST
LZ; 2000-11-01~2002-11-01 |
75810-56B00-000 |
— | ||
|
24
|
24
75821-56B00-000 PAD,FOOTREST PEDALLZ; 2000-11-01~2002-11-01 |
75821-56B00-000 |
US $11 |
||
|
25
|
25
08316-20083-000
Nut
LZ; 2000-11-01~2002-11-01 |
08316-20083-000 |
— | ||
| replacement | |||||
|
25
|
25
08316-2008A-000 NUTLZ; 2000-11-01~2002-11-01 |
08316-2008A-000 |
from US $0.80 |
||
|
26
|
26
75171-65D00-000 CLIP,FL CARPETLZ; 2000-11-01~2001-09-01 |
75171-65D00-000 |
US $3.42 |
||
|
27
|
27
99611-60A01-000 SHEET,SILENCER 800X1000X3LZ; 2000-11-01~2002-11-01 |
99611-60A01-000 |
US $62.40 |
||
|
28
|
28
75541-52D00-T01
COVER,2ND SEAT BRACKET
グレ-; LZ; 2000-11-01~2002-11-01 |
75541-52D00-T01 |
— | ||
|
29
|
29
09119-10071-000 BOLTLZ; 2000-11-01~2002-11-01 |
09119-10071-000 |
US $21 |
||
