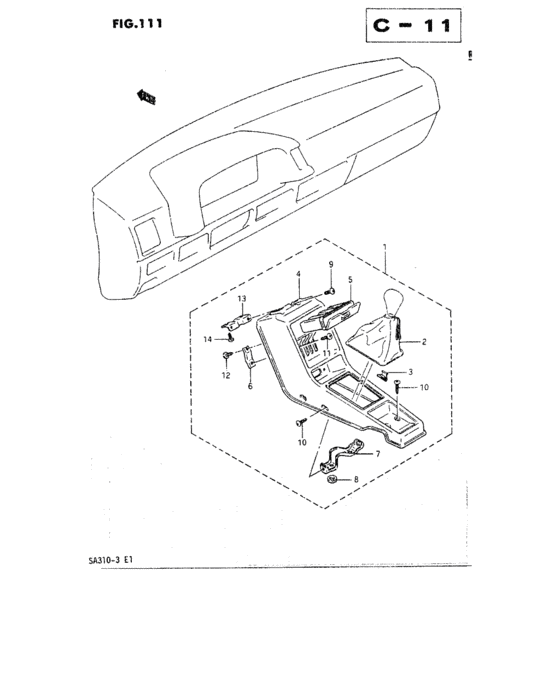

Console box (MT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Pacific
- transmission
- MT
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75800-86812-4MM
Box set, console
GRAY,OPT,<-75800-86810-4MM |
75800-86812-4MM |
— | ||
| replacement | |||||
|
1
|
1
75800-86813-4MM
Box set,console
GRAY,OPT,<-75800-86810-4MM |
75800-86813-4MM |
— | ||
|
1
|
1
75800-86812-4NM
Box set, console
BLUE,OPT,<-75800-86810-4NM |
75800-86812-4NM |
— | ||
| replacement | |||||
|
1
|
1
75800-86813-4MM
Box set,console
BLUE,OPT,<-75800-86810-4NM |
75800-86813-4MM |
— | ||
|
1
|
1
75800-86812-281
Box set, console
BLACK:GLS:OPT |
75800-86812-281 |
— | ||
| replacement | |||||
|
1
|
1
75800-86813-4MM
Box set,console
BLACK:GLS:OPT |
75800-86813-4MM |
— | ||
|
2
|
2
75850-82000-4PM
Boot,console box
GRAY |
75850-82000-4PM |
— | ||
|
2
|
2
75850-82000-4NP
Boot, console box
BLUE |
75850-82000-4NP |
— | ||
| replacement | |||||
|
2
|
2
75850-82000-4PM
Boot,console box
BLUE |
75850-82000-4PM |
— | ||
|
2
|
2
75850-82000-4UM
Boot, console box
BLACK,GLS |
75850-82000-4UM |
— | ||
| replacement | |||||
|
2
|
2
75850-82000-4PM
Boot,console box
BLACK,GLS |
75850-82000-4PM |
— | ||
|
3
|
3
75861-82000-000
CLIP,CONSOLE BOOT
|
75861-82000-000 |
— | ||
|
4
|
4
75811-82001-4MM
Box,console
GRAY |
75811-82001-4MM |
— | ||
|
4
|
4
75811-82001-4NM
Box, console
BLUE |
75811-82001-4NM |
— | ||
| replacement | |||||
|
4
|
4
75811-82001-4MM
Box,console
BLUE |
75811-82001-4MM |
— | ||
|
5
|
5
75821-82000-4MM
Pocket, console box
GRAY |
75821-82000-4MM |
— | ||
| replacement | |||||
|
5
|
5
75821-82001-4MM
Pocket,console box (dark gray)
GRAY |
75821-82001-4MM |
— | ||
|
5
|
5
75821-82000-4NM
Pocket, console box
BLUE |
75821-82000-4NM |
— | ||
| replacement | |||||
|
5
|
5
75821-82001-4MM
Pocket,console box (dark gray)
BLUE |
75821-82001-4MM |
— | ||
|
6
|
6
75822-82001-000
Stay, pocket
|
75822-82001-000 |
— | ||
|
7
|
7
75831-82001-000
Bracket, console box
|
75831-82001-000 |
— | ||
|
8
|
8
75832-82000-000
SPACER,CONSOLE BOX
|
75832-82000-000 |
— | ||
|
9
|
9
02142-05204-000
Screw
|
02142-05204-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0520B-000 SCREWScrew, rear |
02142-0520B-000 |
from US $0.76 |
||
|
10
|
10
03141-05165-000
Screw
|
03141-05165-000 |
— | ||
| replacement | |||||
|
10
|
10
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
11
|
11
03141-05165-000
Screw
|
03141-05165-000 |
— | ||
| replacement | |||||
|
11
|
11
03141-0516A-000 SCREW |
03141-0516A-000 |
from US $0.80 |
||
|
12
|
12
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
12
|
12
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
13
|
13
75836-86000-000
Bracket, upper
|
75836-86000-000 |
— | ||
|
14
|
14
02142-05128-000
Screw
|
02142-05128-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-05127-000 SCREW |
02142-05127-000 |
from US $0.80 |
||
