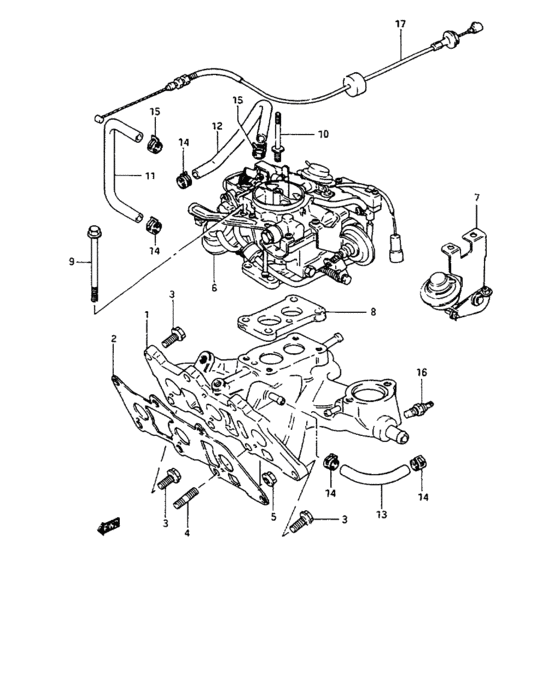

Intake manifold and carburetor (MT:AUTO CHOKE TYPE) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13110-82070-000
Manifold, intake
GA:Hong Kong, Greece N/HEATER |
13110-82070-000 |
— | ||
|
1
|
1
13110-82050-000
Manifold, intake
GA, W/HEATER |
13110-82050-000 |
— | ||
|
1
|
1
13110-82051-000
Manifold, intake
GA, W/HEATER,AA41S-111031~,JSA0AA41S00102077~ |
13110-82051-000 |
— | ||
|
1
|
1
13110-82060-000
Manifold, intake
GL:Hong Kong, Greece N/HEATER |
13110-82060-000 |
— | ||
|
1
|
1
13110-82010-000
Manifold, intake
GL, W/HEATER |
13110-82010-000 |
— | ||
|
1
|
1
13110-82011-000
Manifold, intake
GL, W/HEATER,AA41S-111031~,JSA0AA41S00102113~ |
13110-82011-000 |
— | ||
|
2
|
2
13119-82001-000
Gasket, intake maniflod
<-13119-82000 |
13119-82001-000 |
— | ||
| replacement | |||||
|
2
|
2
13119-68E90-000
Gasket,intake manifold
<-13119-82000 |
13119-68E90-000 |
— | ||
|
3
|
3
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
3
|
3
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
3
|
3
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
4
|
4
01421-08253-000
Stud bolt, no.2
|
01421-08253-000 |
— | ||
| replacement | |||||
|
4
|
4
01421-0825A-000 BOLT,STUD |
01421-0825A-000 |
from US $1.12 |
||
|
5
|
5
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
5
|
5
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
6
|
6
13200-82010-000
Carburetor assy
|
13200-82010-000 |
— | ||
|
7
|
7
95550-82100-000
Idle up assy, car air con
W/AIR CON,<-95550-82010 |
95550-82100-000 |
— | ||
|
8
|
8
13121-82010-000
Gasket, carburetor
|
13121-82010-000 |
— | ||
| replacement | |||||
|
8
|
8
13121-82X50-000 GASKET,CARB |
13121-82X50-000 |
US $1.98 |
||
|
9
|
9
09103-08097-000 BOLT(8X105)Bolt (8x105) |
09103-08097-000 |
from US $1.67 |
||
|
10
|
10
09108-06052-000
Stud bolt, air cleaner
|
09108-06052-000 |
— | ||
| replacement | |||||
|
10
|
10
09108-06052-XC0
BOLT,STUD
|
09108-06052-XC0 |
— | ||
|
11
|
11
13191-82010-000
Hose, carburetor choke inlet
|
13191-82010-000 |
— | ||
| replacements | |||||
|
11
|
11
13191-83001-000
HOSE,CARB CHOKE INLET
|
13191-83001-000 |
— | ||
|
11
|
11
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
12
|
12
13192-82010-000
Hose, choke no. 2
|
13192-82010-000 |
— | ||
| replacements | |||||
|
12
|
12
09356-75141-600 HOSE(7.5X14.5X600) |
09356-75141-600 |
from US $6.30 |
||
|
12
|
12
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
13
|
13
13193-82010-000
Hose, water circulation
|
13193-82010-000 |
— | ||
| replacements | |||||
|
13
|
13
13193-82011-000
HOSE,WATER CIRCULATION
|
13193-82011-000 |
— | ||
|
13
|
13
09401-12410-000 CLIPClip, filter outlet |
09401-12410-000 |
from US $1.19 |
||
|
14
|
14
09401-12404-000 CLIPClip |
09401-12404-000 |
from US $1.52 |
||
|
15
|
15
09401-12405-000 CLIP |
09401-12405-000 |
from US $1.60 |
||
|
16
|
16
34850-82000-000
ゲージアッシ,ウォータテンパレチャ
|
34850-82000-000 |
— | ||
| replacement | |||||
|
16
|
16
34850-50A00-000 GAUGE ASSY,WATER TEMPGauge assy, water temperature |
34850-50A00-000 |
from US $40.80 |
||
|
17
|
17
15910-82020-000
Cable assy, accel
LHD |
15910-82020-000 |
— | ||
| replacement | |||||
|
17
|
17
15910-8202V-000
CABLE,ACCEL
LHD |
15910-8202V-000 |
— | ||
|
17
|
17
15910-82100-000
CABLE ASSY,ACCELERATOR
RHD |
15910-82100-000 |
— | ||
| replacement | |||||
|
17
|
17
15910-8210V-000
CABLE,ACCEL
RHD |
15910-8210V-000 |
— | ||
