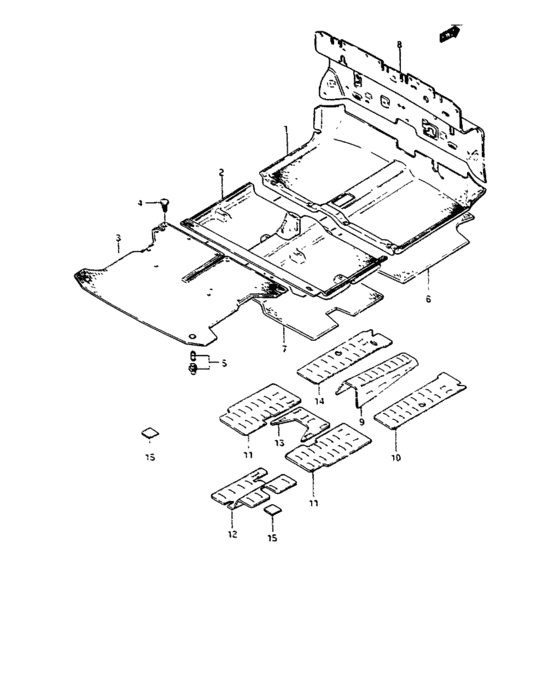

Carpet and mat (3DR:MT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75111-82060-53Z
Mat, floor front
LHD:GA |
75111-82060-53Z |
— | ||
|
1
|
1
75111-82060-42Z
Mat, floor front
LHD:GA |
75111-82060-42Z |
— | ||
|
1
|
1
75111-82061-53Z
Mat, floor front
LHD:GA, SEE NOTE |
75111-82061-53Z |
— | ||
|
1
|
1
75111-82061-42Z
Mat, floor front
LHD:GA, SEE NOTE |
75111-82061-42Z |
— | ||
|
1
|
1
75111-82360-53Z
Mat, floor front
GA:Finland, Norway |
75111-82360-53Z |
— | ||
|
1
|
1
75111-82360-42Z
Mat, floor front
GA:Finland, Norway |
75111-82360-42Z |
— | ||
|
1
|
1
75111-82361-53Z
Mat, floor front
GA:Finland, Norway, SEE NOTE |
75111-82361-53Z |
— | ||
|
1
|
1
75111-82361-42Z
Mat, floor front
GA:Finland, Norway, SEE NOTE |
75111-82361-42Z |
— | ||
|
1
|
1
75111-82020-53Z
Mat, floor front
RHD:GA |
75111-82020-53Z |
— | ||
|
1
|
1
75111-82020-42Z
Mat, floor front
RHD:GA |
75111-82020-42Z |
— | ||
|
1
|
1
75111-82021-53Z
Mat, floor front
RHD:GA, SEE NOTE |
75111-82021-53Z |
— | ||
|
1
|
1
75111-82021-42Z
Mat, floor front
RHD:GA, SEE NOTE |
75111-82021-42Z |
— | ||
|
1
|
1
75110-82000-54W
Carpet, floor front
RHD:GL |
75110-82000-54W |
— | ||
|
1
|
1
75110-82000-56F
Carpet, floor front
RHD:GL |
75110-82000-56F |
— | ||
|
1
|
1
75110-82001-54W
Carpet, floor front
RHD:GL, SEE NOTE |
75110-82001-54W |
— | ||
|
1
|
1
75110-82001-56F
Carpet, floor front
RHD:GL, SEE NOTE |
75110-82001-56F |
— | ||
|
1
|
1
75110-82040-54W
Carpet, floor front
LHD:GL |
75110-82040-54W |
— | ||
|
1
|
1
75110-82040-56F
Carpet, floor front
LHD:GL |
75110-82040-56F |
— | ||
|
1
|
1
75110-82051-54W
Carpet, floor front
LHD:GL, SEE NOTE |
75110-82051-54W |
— | ||
|
1
|
1
75110-82051-56F
Carpet, floor front
LHD:GL, SEE NOTE |
75110-82051-56F |
— | ||
|
1
|
1
75110-82030-54W
Carpet, floor front
GL:, |
75110-82030-54W |
— | ||
|
1
|
1
75110-82031-54W
Carpet, floor front
GL:, , SEE NOTE |
75110-82031-54W |
— | ||
|
1
|
1
75110-82030-56F
Carpet, floor front
GL:, |
75110-82030-56F |
— | ||
|
1
|
1
75110-82031-56F
Carpet, floor front
GL:, , SEE NOTE |
75110-82031-56F |
— | ||
|
1
|
1
75110-82321-56F
Carpet, floor front
GL:, W/CONSOLE |
75110-82321-56F |
— | ||
|
1
|
1
75110-82321-54W
Carpet, floor front
GL:, W/CONSOLE |
75110-82321-54W |
— | ||
|
1
|
1
75110-82050-54W
Carpet, floor front
GL:, Switzerland, Belgium, Germany, Holland,,Denmark, Sinagpore, Hong Kong, Austria, Greece,,Channel Islands, 4 |
75110-82050-54W |
— | ||
|
1
|
1
75110-82050-56F
Carpet, floor front
GL:, Norway, Switzerland, Belgium, Germany,,Holland, Denmark, Sinagpore, Hong Kong, Austria,,Greece, Channel Islands, 4 |
75110-82050-56F |
— | ||
|
1
|
1
75110-82330-54W
Carpet, floor front
GL:Finland, Norway |
75110-82330-54W |
— | ||
|
1
|
1
75110-82330-56F
Carpet, floor front
GL:Finland, Norway |
75110-82330-56F |
— | ||
|
1
|
1
75110-82331-54W
Carpet, floor front
GL:Finland, Norway, SEE NOTE |
75110-82331-54W |
— | ||
|
1
|
1
75110-82331-56F
Carpet, floor front
GL:Finland, Norway, SEE NOTE |
75110-82331-56F |
— | ||
|
1
|
1
75110-82010-54V
Carpet, floor front
GL:Saudi Arabia |
75110-82010-54V |
— | ||
|
1
|
1
75110-82010-53M
Carpet, floor front
GL:Saudi Arabia |
75110-82010-53M |
— | ||
|
1
|
1
75110-82011-54V
Carpet, floor front
GL:Saudi Arabia, SEE NOTE |
75110-82011-54V |
— | ||
|
1
|
1
75110-82011-53M
Carpet, floor front
GL:Saudi Arabia, SEE NOTE |
75110-82011-53M |
— | ||
|
2
|
2
75121-82040-53Z
Mat, floor rear
GA |
75121-82040-53Z |
— | ||
|
2
|
2
75121-82040-42Z
Mar, floor rear
GA |
75121-82040-42Z |
— | ||
|
2
|
2
75120-82000-54W
Carpet, floor rear
GL |
75120-82000-54W |
— | ||
|
2
|
2
75120-82000-56F
Carpet, floor rear
GL |
75120-82000-56F |
— | ||
|
2
|
2
75120-82010-54V
Carpet, floor rear
GL:Saudi Arabia |
75120-82010-54V |
— | ||
|
2
|
2
75120-82010-53M
Carpet, floor rear
GL:Saudi Arabia |
75120-82010-53M |
— | ||
|
2
|
2
75121-82051-53Z
Mat, floor rear
VAN:Holland |
75121-82051-53Z |
— | ||
|
2
|
2
75121-82051-42Z
Mat, floor rear
VAN:Holland |
75121-82051-42Z |
— | ||
|
3
|
3
75130-82030-53Z
Mat, luggage floor
GA |
75130-82030-53Z |
— | ||
|
3
|
3
75130-82030-42Z
Mat, luggage floor
GA |
75130-82030-42Z |
— | ||
|
3
|
3
75130-82032-53Z
Mat, luggage floor
GA:SEE NOTE |
75130-82032-53Z |
— | ||
|
3
|
3
75130-82032-42Z
Mat, luggage floor
GA:SEE NOTE |
75130-82032-42Z |
— | ||
|
3
|
3
75130-82000-53V
Carpet, luggage floor
GL |
75130-82000-53V |
— | ||
|
3
|
3
75130-82000-45E
Carpet, luggage floor
GL |
75130-82000-45E |
— | ||
|
3
|
3
75130-82012-53V
Carpet, luggage floor
GL:SEE NOTE,<-75130-82002-53V |
75130-82012-53V |
— | ||
| replacement | |||||
|
3
|
3
75130-82012-45E
Carpet, luggage floor
GL:SEE NOTE,<-75130-82002-53V |
75130-82012-45E |
— | ||
|
3
|
3
75130-82012-45E
Carpet, luggage floor
GL:SEE NOTE,TU,<-75130-82002-45E |
75130-82012-45E |
— | ||
|
3
|
3
75130-82041-42Z
Carpet, luggage floor
VAN |
75130-82041-42Z |
— | ||
|
3
|
3
75130-82041-53Z
Carpet, luggage floor
VAN |
75130-82041-53Z |
— | ||
|
4
|
4
09409-10302-53A
Clip
GA |
09409-10302-53A |
— | ||
| replacement | |||||
|
4
|
4
09409-10302-5PK CLIP(BLACK)GA |
09409-10302-5PK |
US $1.28 |
||
|
4
|
4
09409-10302-55Y CLIP(GRAY)GA |
09409-10302-55Y |
US $17.30 |
||
|
5
|
5
09410-00067-000 MALE |
09410-00067-000 |
US $2.88 |
||
|
6
|
6
75231-82000-000
Pad, floor front
|
75231-82000-000 |
— | ||
|
7
|
7
75232-82000-000
Pad, floor rear
|
75232-82000-000 |
— | ||
|
8
|
8
75210-82011-000
Silencer, dash panel
LHD |
75210-82011-000 |
— | ||
|
8
|
8
75210-82000-000
Silencer, dash panel
RHD |
75210-82000-000 |
— | ||
|
9
|
9
75311-82001-000
Sheet, tunner silencer
|
75311-82001-000 |
— | ||
| replacements | |||||
|
9
|
9
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
9
|
9
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
10
|
10
75312-82001-000
Mat, floor front insulation rh
|
75312-82001-000 |
— | ||
| replacements | |||||
|
10
|
10
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
10
|
10
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
11
|
11
75313-82001-000
Mat, floor rear insulation
|
75313-82001-000 |
— | ||
| replacements | |||||
|
11
|
11
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
11
|
11
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
12
|
12
75314-82000-000
Sheet, rear silencer
|
75314-82000-000 |
— | ||
| replacements | |||||
|
12
|
12
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
12
|
12
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
13
|
13
75315-82000-000
Mat, floor tunnel insulation,rear
|
75315-82000-000 |
— | ||
| replacements | |||||
|
13
|
13
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
13
|
13
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
14
|
14
75317-82000-000
Mat, floor front insulation lh
|
75317-82000-000 |
— | ||
| replacements | |||||
|
14
|
14
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
14
|
14
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
15
|
15
75443-82010-000
Cover, rear bumper absorber
|
75443-82010-000 |
— | ||
