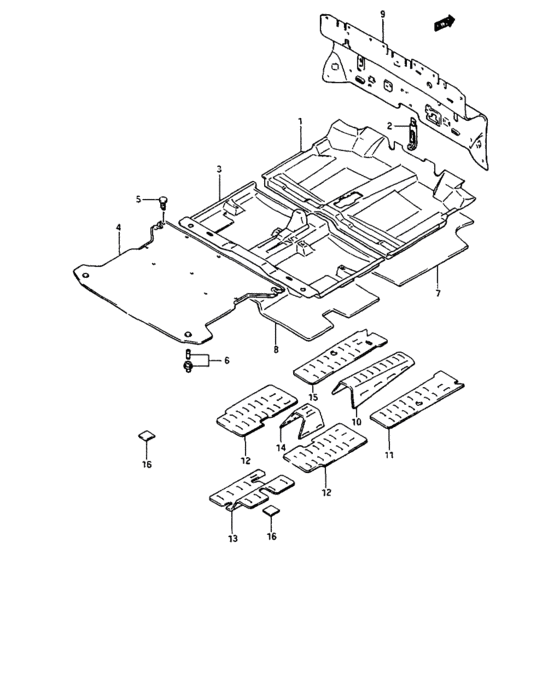

Carpet and mat (5DR:MT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
75111-82061-53Z
Mat, floor front
LHD:GA |
75111-82061-53Z |
— | ||
|
1
|
1
75111-82061-42Z
Mat, floor front
LHD:GA |
75111-82061-42Z |
— | ||
|
1
|
1
75111-82021-53Z
Mat, floor front
RHD:GA |
75111-82021-53Z |
— | ||
|
1
|
1
75111-82021-42Z
Mat, floor front
RHD:GA |
75111-82021-42Z |
— | ||
|
1
|
1
75111-82361-53Z
Mat, floor front
GA:Norway |
75111-82361-53Z |
— | ||
|
1
|
1
75111-82361-42Z
Mat, floor front
GA:Norway |
75111-82361-42Z |
— | ||
|
1
|
1
75110-82001-54W
Carpet, floor front
GA:Pakistan |
75110-82001-54W |
— | ||
|
1
|
1
75110-82001-56F
Carpet, floor front
GA:Pakistan |
75110-82001-56F |
— | ||
|
1
|
1
75110-82051-54W
Carpet, floor front
LHD:GL |
75110-82051-54W |
— | ||
|
1
|
1
75110-82051-56F
Carpet, floor front
LHD:GL |
75110-82051-56F |
— | ||
|
1
|
1
75110-82031-54W
Carpet, floor front
GL:, (N/CONSOLE) |
75110-82031-54W |
— | ||
|
1
|
1
75110-82031-56F
Carpet, floor front
GL:, (N/CONSOLE) |
75110-82031-56F |
— | ||
|
1
|
1
75110-82321-54W
Carpet, floor front
GL:(W/CONSOLE) |
75110-82321-54W |
— | ||
|
1
|
1
75110-82321-56F
Carpet, floor front
GL:(W/CONSOLE) |
75110-82321-56F |
— | ||
|
1
|
1
75110-82331-54W
Carpet, floor front
GL:Finland, Norway, Switzerland, Belgium, Germany,,Holland, Austria, Greece, Israel, Iceland,(W/CONSOLE) |
75110-82331-54W |
— | ||
|
1
|
1
75110-82331-56F
Carpet, floor front
GL:Finland, Norway, Switzerland, Belgium, Germany,,Holland, Austria, Greece, Israel, Iceland,(W/CONSOLE) |
75110-82331-56F |
— | ||
|
1
|
1
75110-82301-54W
Carpet, floor front
Indonesia |
75110-82301-54W |
— | ||
|
1
|
1
75110-82301-56F
Carpet, floor front
Indonesia |
75110-82301-56F |
— | ||
|
1
|
1
75110-82011-54V
Carpet, floor front
GL:Saudi Arabia |
75110-82011-54V |
— | ||
|
1
|
1
75110-82011-53M
Carpet, floor front
GL:Saudi Arabia |
75110-82011-53M |
— | ||
|
2
|
2
09404-06404-000
Clamp, fuel hose
|
09404-06404-000 |
— | ||
| replacements | |||||
|
2
|
2
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
2
|
2
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
2
|
2
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
US $2.13 |
||
|
2
|
2
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
3
|
3
75120-82240-53Z
Mat, floor rear
GA |
75120-82240-53Z |
— | ||
|
3
|
3
75120-82240-42Z
Mat, floor rear
GA |
75120-82240-42Z |
— | ||
|
3
|
3
75120-82200-54W
Carpet, floor rear
GA:Pakistan |
75120-82200-54W |
— | ||
|
3
|
3
75120-82200-56F
Carpet, floor rear
GA:Pakistan |
75120-82200-56F |
— | ||
|
3
|
3
75120-82210-54V
Carpet, floor rear
GL:Saudi Arabia |
75120-82210-54V |
— | ||
|
3
|
3
75120-82210-53M
Carpet, floor rear
GL:Saudi Arabia |
75120-82210-53M |
— | ||
| replacement | |||||
|
3
|
3
75120-82210-54V
Carpet, floor rear
GL:Saudi Arabia |
75120-82210-54V |
— | ||
|
4
|
4
75130-82230-53Z
Mat, luggage floor
GA |
75130-82230-53Z |
— | ||
|
4
|
4
75130-82230-42Z
Mat, luggage floor
GA |
75130-82230-42Z |
— | ||
|
4
|
4
75130-82210-53V
Carpet, luggage floor
GA:Pakistan,<-75130-82200-53V |
75130-82210-53V |
— | ||
|
4
|
4
75130-82210-45E
Carpet, luggage floor
GA:Pakistan,<-75130-82200-45E |
75130-82210-45E |
— | ||
|
5
|
5
09409-10302-53A
Clip
GA |
09409-10302-53A |
— | ||
| replacement | |||||
|
5
|
5
09409-10302-5PK CLIP(BLACK)GA |
09409-10302-5PK |
US $1.28 |
||
|
5
|
5
09409-10302-55Y CLIP(GRAY)GA |
09409-10302-55Y |
US $17.30 |
||
|
6
|
6
09410-00067-000 MALE |
09410-00067-000 |
US $2.88 |
||
|
7
|
7
75231-82000-000
Pad, floor front
|
75231-82000-000 |
— | ||
|
8
|
8
75232-82200-000
Pad, floor rear
|
75232-82200-000 |
— | ||
|
9
|
9
75210-82011-000
Silencer, dash panel
LHD |
75210-82011-000 |
— | ||
|
9
|
9
75210-82000-000
Silencer, dash panel
RHD |
75210-82000-000 |
— | ||
|
10
|
10
75311-82001-000
Sheet, tunner silencer
|
75311-82001-000 |
— | ||
| replacements | |||||
|
10
|
10
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
10
|
10
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
11
|
11
75312-82001-000
Mat, floor front insulation rh
|
75312-82001-000 |
— | ||
| replacements | |||||
|
11
|
11
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
11
|
11
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
12
|
12
75313-82001-000
Mat, floor rear insulation
|
75313-82001-000 |
— | ||
| replacements | |||||
|
12
|
12
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
12
|
12
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
13
|
13
75314-82000-000
Sheet, rear silencer
|
75314-82000-000 |
— | ||
| replacements | |||||
|
13
|
13
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
13
|
13
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
14
|
14
75315-82000-000
Mat, floor tunnel insulation,rear
|
75315-82000-000 |
— | ||
| replacements | |||||
|
14
|
14
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
14
|
14
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
15
|
15
75317-82000-000
Mat, floor front insulation lh
|
75317-82000-000 |
— | ||
| replacements | |||||
|
15
|
15
99611-60A01-000 SHEET,SILENCER 800X1000X3 |
99611-60A01-000 |
US $62.40 |
||
|
15
|
15
99611-60A00-000
シート,サイレンサ,800X1000X3
|
99611-60A00-000 |
— | ||
|
16
|
16
75443-82010-000
Cover, rear bumper absorber
|
75443-82010-000 |
— | ||
