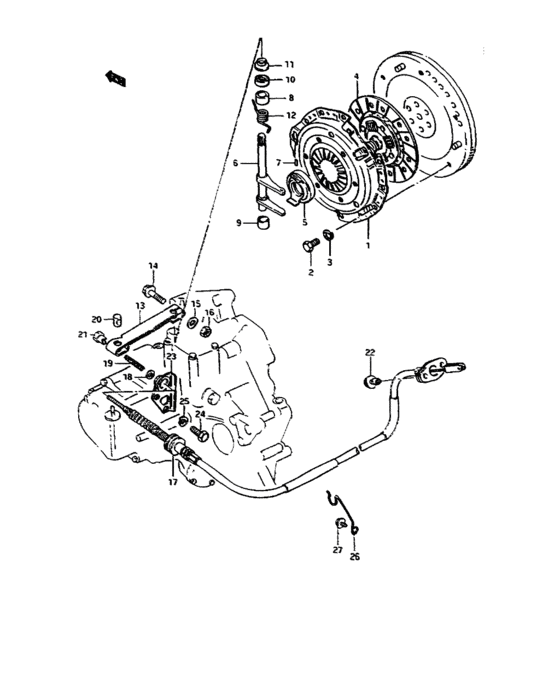

Clutch and clutch control (MT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22100-82022-000
Cover assy, clutch
<-22100-82021 |
22100-82022-000 |
— | ||
| replacement | |||||
|
1
|
1
22100-82092-000
Cover assy,clutch
<-22100-82021 |
22100-82092-000 |
— | ||
|
2
|
2
01107-08163-000
Bolt m8x1.25x16
|
01107-08163-000 |
— | ||
| replacements | |||||
|
2
|
2
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
2
|
2
01500-08163-000
Bolt
|
01500-08163-000 |
— | ||
|
3
|
3
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
3
|
3
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
4
|
4
22400-82024-000
Disc, clutch
<-22400-82023 |
22400-82024-000 |
— | ||
| replacement | |||||
|
4
|
4
22400-50X00-000
Disc,assy,clutch
<-22400-82023 |
22400-50X00-000 |
— | ||
|
5
|
5
09269-28004-000 BEARING(28X58X22) |
09269-28004-000 |
US $50.92 |
||
|
6
|
6
23260-82001-000
SHAFT,CLUTCH RELEASE
|
23260-82001-000 |
— | ||
|
7
|
7
09205-03019-000 PIN,SPRING(3X10)Pin, tilt lock |
09205-03019-000 |
from US $0.81 |
||
|
8
|
8
09300-14012-000
Bonille axe
|
09300-14012-000 |
— | ||
| replacement | |||||
|
8
|
8
09300-14017-000 BUSH(14X22X15) |
09300-14017-000 |
from US $2.13 |
||
|
9
|
9
09300-14013-000
Bushing, no. 2
|
09300-14013-000 |
— | ||
| replacement | |||||
|
9
|
9
09300-14016-000 BUSH(14X18X20) |
09300-14016-000 |
US $2.24 |
||
|
10
|
10
09284-14003-000 SEAL,OIL(14X22X6) |
09284-14003-000 |
US $6.72 |
||
| replacement | |||||
|
10
|
10
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.74 |
||
|
11
|
11
23268-82000-000
カバー,クラッチレリーズシャフト
|
23268-82000-000 |
— | ||
|
12
|
12
09448-20004-000 SPRING |
09448-20004-000 |
US $18 |
||
|
13
|
13
23266-82000-000
Arm, clutch release
|
23266-82000-000 |
— | ||
| replacement | |||||
|
13
|
13
23266-82070-000
ARM,CLUTCH RELEASE
|
23266-82070-000 |
— | ||
|
14
|
14
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
14
|
14
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
15
|
15
08322-11083-000 WasherWasher |
08322-11083-000 |
US $1.07 |
||
| replacements | |||||
|
15
|
15
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
15
|
15
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
|
16
|
16
08310-11083-000
ナット
|
08310-11083-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
16
|
16
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.80 |
||
|
17
|
17
23710-82060-000
Cable assy, clutch
LHD |
23710-82060-000 |
— | ||
| replacement | |||||
|
17
|
17
23710-82062-000
CABLE ASSY,CLUTCH
LHD |
23710-82062-000 |
— | ||
|
17
|
17
23710-82063-000
Cable assy, clutch
LHD,AA41S-113375~,AA41V-101699~,JSA0AA41S00113519~ |
23710-82063-000 |
— | ||
| replacement | |||||
|
17
|
17
23710-82662-000
CABLE ASSY,CLUTCH
LHD,AA41S-113375~,AA41V-101699~,JSA0AA41S00113519~ |
23710-82662-000 |
— | ||
|
17
|
17
23710-82064-000
Cable assy, clutch
LHD,AA41S-123510~,AA41V-102309~,AB41S-106156~,JSA0AA41S00116305~,JSA0AA41F00100145~ |
23710-82064-000 |
— | ||
| replacement | |||||
|
17
|
17
23710-82663-000
CABLE ASSY,CLUTCH
LHD,AA41S-123510~,AA41V-102309~,AB41S-106156~,JSA0AA41S00116305~,JSA0AA41F00100145~ |
23710-82663-000 |
— | ||
|
17
|
17
23710-82012-000
Cable assy, clutch
RHD,->23710-82013,USED WITH 09440-08027 |
23710-82012-000 |
— | ||
| replacements | |||||
|
17
|
17
09440-08027-000 SPRINGRHD,->23710-82013,USED WITH 09440-08027 |
09440-08027-000 |
US $14.40 |
||
|
17
|
17
23710-82013-000
CABLE ASSY,CLUTCH
RHD,->23710-82013,USED WITH 09440-08027 |
23710-82013-000 |
— | ||
|
17
|
17
23710-82013-000
CABLE ASSY,CLUTCH
RHD,AA41S-113375~,AA41V-101699~,JSA0AA41S00113519~ |
23710-82013-000 |
— | ||
|
18
|
18
08322-21063-000
Washer
|
08322-21063-000 |
— | ||
| replacement | |||||
|
18
|
18
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
19
|
19
09440-08025-000
スプリング
|
09440-08025-000 |
— | ||
| replacement | |||||
|
19
|
19
09440-08027-000 SPRING |
09440-08027-000 |
US $14.40 |
||
|
19
|
19
09440-08027-000 SPRINGAA41S-113375~,AA41V-101699~,JSA0AA41S00113519~ |
09440-08027-000 |
US $14.40 |
||
|
20
|
20
09209-13007-000
ピン
|
09209-13007-000 |
— | ||
| replacement | |||||
|
20
|
20
09209-13018-000 PIN(13X18) |
09209-13018-000 |
from US $1.82 |
||
|
21
|
21
09150-06010-000 NUT |
09150-06010-000 |
from US $1.44 |
||
|
22
|
22
09119-06051-000 BOLT(6X21) |
09119-06051-000 |
US $11 |
||
|
23
|
23
23910-82000-000
Bracket, clutch cable
|
23910-82000-000 |
— | ||
|
24
|
24
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
25
|
25
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
25
|
25
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
26
|
26
23915-82001-000
Clamp, clutch cable
RHD, <-23915-82000 |
23915-82001-000 |
— | ||
|
27
|
27
01517-06103-000
ボルト
RHD |
01517-06103-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0610A-000 BOLTRHD |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
01550-0610B-000 BoltBolt RHD |
01550-0610B-000 |
from US $0.80 |
||
