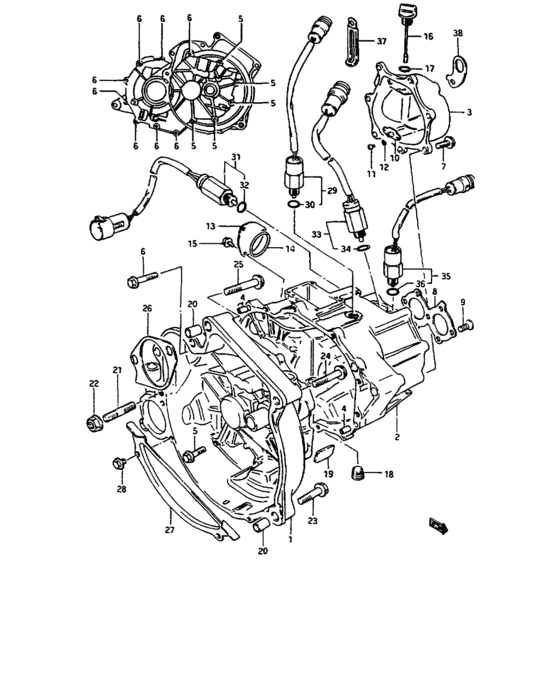

Transmission case (MT) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- MT
- grade
- GE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24711-82001-000
Case, transmission rh
|
24711-82001-000 |
— | ||
|
2
|
2
24721-82002-000
Case, transmission lh
W/ANALOGUE METER,<-24721-82001 |
24721-82002-000 |
— | ||
| replacement | |||||
|
2
|
2
24721-50B00-000
Case, transmission lh
W/ANALOGUE METER,<-24721-82001 |
24721-50B00-000 |
— | ||
|
2
|
2
24721-82032-000
Case, transmission lh
W/DIGITAL METER,<-24721-82031 |
24721-82032-000 |
— | ||
|
3
|
3
24731-82050-000
Case, transmission side
|
24731-82050-000 |
— | ||
|
4
|
4
04211-09169-000 PIN |
04211-09169-000 |
from US $0.91 |
||
|
5
|
5
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
5
|
5
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
5
|
5
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
6
|
6
01537-08503-000
Bolt
|
01537-08503-000 |
— | ||
| replacements | |||||
|
6
|
6
01550-0850A-000 Bolt |
01550-0850A-000 |
from US $5 |
||
|
6
|
6
01550-0850B-000 Bolt |
01550-0850B-000 |
from US $1.22 |
||
|
7
|
7
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
7
|
7
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
7
|
7
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
8
|
8
24725-82001-000
プレート,レフトケース
<-24725-82000 |
24725-82001-000 |
— | ||
|
9
|
9
09120-06002-000
Screw (6x16)
|
09120-06002-000 |
— | ||
| replacement | |||||
|
9
|
9
02122-0616B-000 SCREWScrew, intake pipe |
02122-0616B-000 |
from US $0.80 |
||
|
10
|
10
24735-82050-000
カップ,インプットシャフトオイルレシーバ
|
24735-82050-000 |
— | ||
|
11
|
11
02112-03066-000
Screw
|
02112-03066-000 |
— | ||
| replacement | |||||
|
11
|
11
02112-0306B-000 SCREW |
02112-0306B-000 |
from US $2.52 |
||
|
12
|
12
08322-21036-000
Washer
|
08322-21036-000 |
— | ||
| replacement | |||||
|
12
|
12
08322-0103B-000 WASHER |
08322-0103B-000 |
from US $3.86 |
||
|
13
|
13
24741-78141-000
Cap,transmission left case
|
24741-78141-000 |
— | ||
| replacement | |||||
|
13
|
13
24741-60D00-000 CAP,TRANSAXLE LEFT CASE |
24741-60D00-000 |
US $3.64 |
||
|
14
|
14
09280-56003-000
Oリング(D:1.9,ID:52)
|
09280-56003-000 |
— | ||
| replacement | |||||
|
14
|
14
24761-50A00-000 O-RING,T/M LEFT CASE LOWER CAP |
24761-50A00-000 |
US $1.60 |
||
|
15
|
15
01517-06123-000
Bolt
|
01517-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
24830-82001-000
Gauge,t/m oil level
<-24830-82000 |
24830-82001-000 |
— | ||
|
17
|
17
09280-18005-000 O RING(D:2,ID:16.5) |
09280-18005-000 |
US $10.30 |
||
|
18
|
18
09246-16004-000
プラグ(マグネットナシ)
|
09246-16004-000 |
— | ||
| replacements | |||||
|
18
|
18
09246-16010-000 PLUG |
09246-16010-000 |
US $4.46 |
||
|
18
|
18
09246-16021-000 Plug,t/m Oil Drain |
09246-16021-000 |
from US $4.01 |
||
|
19
|
19
24718-82000-000
Magnet, transmission case
|
24718-82000-000 |
— | ||
| replacement | |||||
|
19
|
19
24718-52A00-000
MAGNET,T/M CASE
|
24718-52A00-000 |
— | ||
|
20
|
20
09206-13001-000
Pin
|
09206-13001-000 |
— | ||
| replacement | |||||
|
20
|
20
04211-13189-000 PIN |
04211-13189-000 |
from US $1.19 |
||
|
21
|
21
01421-10353-000
Stud 10x1.25x55
|
01421-10353-000 |
— | ||
| replacements | |||||
|
21
|
21
01421-1035A-000 BOLT,STUD |
01421-1035A-000 |
from US $4.13 |
||
|
21
|
21
01421-1035B-000 BOLT,STUD |
01421-1035B-000 |
US $17.30 |
||
|
22
|
22
08316-16103-000 Nut |
08316-16103-000 |
US $1.30 |
||
| replacement | |||||
|
22
|
22
08316-1010B-000 NUT |
08316-1010B-000 |
from US $0.80 |
||
|
23
|
23
01537-10503-000
ボルト
|
01537-10503-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
23
|
23
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
24
|
24
01537-10603-000
New Genuine Part
|
01537-10603-000 |
— | ||
| replacement | |||||
|
24
|
24
01550-1060B-000 Bolt |
01550-1060B-000 |
US $1.60 |
||
|
25
|
25
01537-10703-000
New Genuine Part
|
01537-10703-000 |
— | ||
| replacement | |||||
|
25
|
25
01550-1070A-000 Bolt |
01550-1070A-000 |
from US $1.60 |
||
|
26
|
26
11311-82000-000
Plate, starting motor
|
11311-82000-000 |
— | ||
|
27
|
27
11321-82000-000
プレート,クラッチハウジング,ロア
|
11321-82000-000 |
— | ||
| replacement | |||||
|
27
|
27
11320-83E01-000 PLATE,CLUTCH HSG LOWER |
11320-83E01-000 |
US $11.52 |
||
|
28
|
28
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
28
|
28
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
29
|
29
37610-82001-000
Switch, back up lamp
|
37610-82001-000 |
— | ||
| replacement | |||||
|
29
|
29
37610-82002-000
SWITCH ASSY,BACK UP LAMP
|
37610-82002-000 |
— | ||
|
30
|
30
09280-11002-000 O RING(D:1.9,ID:11.4) |
09280-11002-000 |
from US $0.88 |
||
|
31
|
31
37750-82100-000
Switch, gear position low
W/DIGITAL METER |
37750-82100-000 |
— | ||
|
32
|
32
09280-11002-000 O RING(D:1.9,ID:11.4)W/DIGITAL METER |
09280-11002-000 |
from US $0.88 |
||
|
33
|
33
37760-82100-000
Switch, gear position high
W/DIGITAL METER |
37760-82100-000 |
— | ||
|
34
|
34
09280-11002-000 O RING(D:1.9,ID:11.4)W/DIGITAL METER |
09280-11002-000 |
from US $0.88 |
||
|
35
|
35
37620-80000-000 SWITCH ASSYW/DIGITAL METER,<-37765-82000 |
37620-80000-000 |
US $78.40 |
||
|
36
|
36
09280-11002-000 O RING(D:1.9,ID:11.4)W/DIGITAL METER |
09280-11002-000 |
from US $0.88 |
||
|
37
|
37
09404-08413-000
Alternator w cl
W/DIGITAL METER |
09404-08413-000 |
— | ||
| replacement | |||||
|
37
|
37
09404-08420-000 CLAMP(L:120 T:1.0)W/DIGITAL METER |
09404-08420-000 |
from US $2.08 |
||
|
38
|
38
11851-78111-000
フック,エンジン
<-11851-78110 |
11851-78111-000 |
— | ||
| replacement | |||||
|
38
|
38
11851-62B00-000 HOOK<-11851-78110 |
11851-62B00-000 |
US $5.02 |
||
