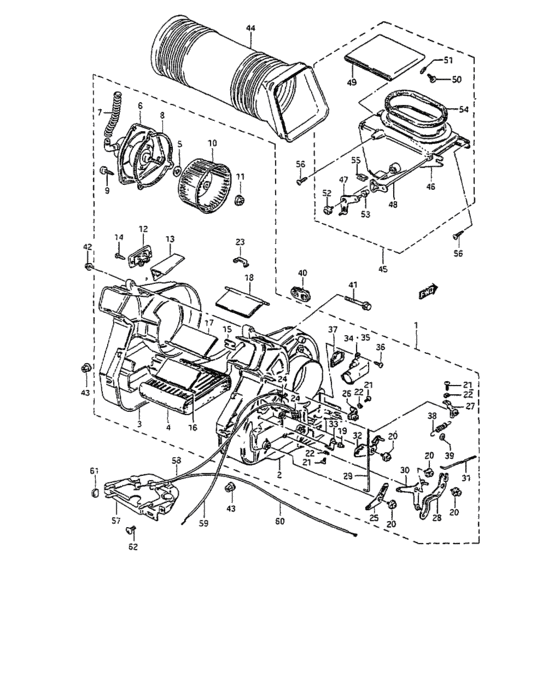

Car heater (CAR HEATER) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Canada
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
74100-82032-000
Car heater assy
<-74100-82031 |
74100-82032-000 |
— | ||
| replacement | |||||
|
1
|
1
74100-86130-000
New Genuine Part
<-74100-82031 |
74100-86130-000 |
— | ||
|
2
|
2
74111-82031-000
Case, heater rh
|
74111-82031-000 |
— | ||
|
3
|
3
74112-82032-000
Case, heater lh
<-74112-82031 |
74112-82032-000 |
— | ||
|
4
|
4
74120-82030-000
Core, heater
|
74120-82030-000 |
— | ||
|
5
|
5
74131-82000-000
ワッシャ,ファン
|
74131-82000-000 |
— | ||
| replacement | |||||
|
5
|
5
17112-82000-000 WASHER,FAN |
17112-82000-000 |
US $0.85 |
||
|
6
|
6
74150-82000-000
ファン,モータ
|
74150-82000-000 |
— | ||
|
7
|
7
74163-82000-000
Hose, motor air
|
74163-82000-000 |
— | ||
|
8
|
8
74161-82000-000
Seal, motor
|
74161-82000-000 |
— | ||
| replacement | |||||
|
8
|
8
88153-79000-000 PACKING,MOTOR |
88153-79000-000 |
US $1.52 |
||
|
9
|
9
74135-82000-000 SCREW,MOTOR |
74135-82000-000 |
US $1.73 |
||
|
10
|
10
88190-79000-000 FAN,BLOWER |
88190-79000-000 |
US $29.81 |
||
|
11
|
11
08316-16056-000
Nut
|
08316-16056-000 |
— | ||
| replacement | |||||
|
11
|
11
08316-1005A-000 NUT |
08316-1005A-000 |
from US $0.77 |
||
|
12
|
12
74190-82000-000
REGISTER
|
74190-82000-000 |
— | ||
|
13
|
13
74132-82000-000
Plate, register
|
74132-82000-000 |
— | ||
|
14
|
14
03111-04126-000
New Genuine Part
|
03111-04126-000 |
— | ||
| replacement | |||||
|
14
|
14
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
15
|
15
74113-82000-000
Cover, heater pipe
|
74113-82000-000 |
— | ||
|
16
|
16
74171-82000-000
Damper, vent
|
74171-82000-000 |
— | ||
|
17
|
17
74172-82000-000
Damper, temp
|
74172-82000-000 |
— | ||
|
18
|
18
74173-82030-000
Damper, defroster
|
74173-82030-000 |
— | ||
|
19
|
19
74182-82000-000
カラー,リンク
|
74182-82000-000 |
— | ||
| replacement | |||||
|
19
|
19
74146-70B00-000 BUSH,AIR MIX LEVER |
74146-70B00-000 |
US $3.90 |
||
|
20
|
20
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
21
|
21
02112-03086-000
Screw
|
02112-03086-000 |
— | ||
| replacement | |||||
|
21
|
21
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $2.84 |
||
|
22
|
22
08321-21036-000
Lock washer
|
08321-21036-000 |
— | ||
| replacement | |||||
|
22
|
22
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
23
|
23
74133-82000-000 CLAMP,CASE |
74133-82000-000 |
US $2.91 |
||
|
24
|
24
74134-82000-000
クランプ,ロック
|
74134-82000-000 |
— | ||
| replacement | |||||
|
24
|
24
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
25
|
25
74184-82000-000
Lever, link
|
74184-82000-000 |
— | ||
|
26
|
26
74185-82005-000
Plate, vent link
|
74185-82005-000 |
— | ||
|
27
|
27
74186-82005-000
Plate, defroster link
|
74186-82005-000 |
— | ||
|
28
|
28
74187-82030-000
Lever, link no.2
|
74187-82030-000 |
— | ||
|
29
|
29
74188-82030-000
Shaft, vent link
|
74188-82030-000 |
— | ||
|
30
|
30
74179-82030-000
Lever, mode
|
74179-82030-000 |
— | ||
|
31
|
31
74189-82000-000
Shaft, defroster link
|
74189-82000-000 |
— | ||
|
32
|
32
74178-82000-000
Plate, temp
|
74178-82000-000 |
— | ||
|
33
|
33
74177-82000-000
Lever, temp
|
74177-82000-000 |
— | ||
|
34
|
34
74114-82000-000
Duct, rh
|
74114-82000-000 |
— | ||
|
35
|
35
74115-82000-000
Duct, lh
|
74115-82000-000 |
— | ||
|
36
|
36
03111-04126-000
New Genuine Part
|
03111-04126-000 |
— | ||
| replacement | |||||
|
36
|
36
03111-0412A-000 SCREW |
03111-0412A-000 |
from US $3.04 |
||
|
37
|
37
74162-82000-000
Packing, duct
|
74162-82000-000 |
— | ||
|
38
|
38
74136-82000-000
Spring, defroster link
|
74136-82000-000 |
— | ||
|
39
|
39
74137-82000-000 WASHER,SPRING |
74137-82000-000 |
US $1.10 |
||
|
40
|
40
74812-82000-000
グロメット,ヒータ
|
74812-82000-000 |
— | ||
| replacement | |||||
|
40
|
40
74812-82030-000 GROMMET,HTR |
74812-82030-000 |
US $13.60 |
||
|
41
|
41
01517-06556-000
Bolt
|
01517-06556-000 |
— | ||
| replacement | |||||
|
41
|
41
01550-0655B-000 BoltBolt, hydraulic unit no.2 |
01550-0655B-000 |
from US $0.91 |
||
|
42
|
42
08316-16066-000
Nut
|
08316-16066-000 |
— | ||
| replacement | |||||
|
42
|
42
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
43
|
43
08361-25066-000
ナット
<-74811-82001 |
08361-25066-000 |
— | ||
| replacement | |||||
|
43
|
43
08361-2506A-000 NUT<-74811-82001 |
08361-2506A-000 |
US $0.80 |
||
|
44
|
44
74611-82000-000
Duct, air
|
74611-82000-000 |
— | ||
|
45
|
45
74210-82010-000
Damper assy, air
|
74210-82010-000 |
— | ||
|
46
|
46
74211-82000-000
Case, damper
|
74211-82000-000 |
— | ||
|
47
|
47
74213-82010-000
Lever, damper
|
74213-82010-000 |
— | ||
|
48
|
48
74214-82010-000
Shaft, damper
|
74214-82010-000 |
— | ||
|
49
|
49
74212-82000-000
Damper, air
|
74212-82000-000 |
— | ||
|
50
|
50
02112-03086-000
Screw
|
02112-03086-000 |
— | ||
| replacement | |||||
|
50
|
50
02112-0308A-000 SCREW |
02112-0308A-000 |
from US $2.84 |
||
|
51
|
51
08322-21036-000
Washer
|
08322-21036-000 |
— | ||
| replacement | |||||
|
51
|
51
08322-0103B-000 WASHER |
08322-0103B-000 |
from US $3.86 |
||
|
52
|
52
74183-82005-000 SCREW,LINK |
74183-82005-000 |
US $1.73 |
||
|
53
|
53
74182-82000-000
カラー,リンク
|
74182-82000-000 |
— | ||
| replacement | |||||
|
53
|
53
74146-70B00-000 BUSH,AIR MIX LEVER |
74146-70B00-000 |
US $3.90 |
||
|
54
|
54
74215-82000-000
Packin, air
|
74215-82000-000 |
— | ||
| replacement | |||||
|
54
|
54
74262-86000-000 PACKING,AIR |
74262-86000-000 |
US $8.06 |
||
|
55
|
55
74134-82000-000
クランプ,ロック
|
74134-82000-000 |
— | ||
| replacement | |||||
|
55
|
55
74151-85000-000 CLAMP,LOCK |
74151-85000-000 |
US $3.72 |
||
|
56
|
56
03242-05129-000
Screw
|
03242-05129-000 |
— | ||
| replacement | |||||
|
56
|
56
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
57
|
57
74400-82000-000
Lever assy, heater control
|
74400-82000-000 |
— | ||
|
58
|
58
74511-82010-000
Cable, air control
|
74511-82010-000 |
— | ||
|
59
|
59
74521-82010-000
Cable, heat control
|
74521-82010-000 |
— | ||
|
60
|
60
74531-82000-000
Cable, fresh air cont
|
74531-82000-000 |
— | ||
|
61
|
61
74551-82000-53A
Knob, control lever
|
74551-82000-53A |
— | ||
| replacement | |||||
|
61
|
61
74551-82000-5PK KNOB,CONTROL LEVER |
74551-82000-5PK |
US $2.32 |
||
|
61
|
61
74551-82000-55Y
Knob, control lever
|
74551-82000-55Y |
— | ||
| replacement | |||||
|
61
|
61
74551-82000-5PK KNOB,CONTROL LEVER |
74551-82000-5PK |
US $2.32 |
||
|
62
|
62
02142-05124-000
Screw
|
02142-05124-000 |
— | ||
| replacement | |||||
|
62
|
62
02142-0512A-000 SCREWScrew, lower |
02142-0512A-000 |
from US $0.80 |
||
