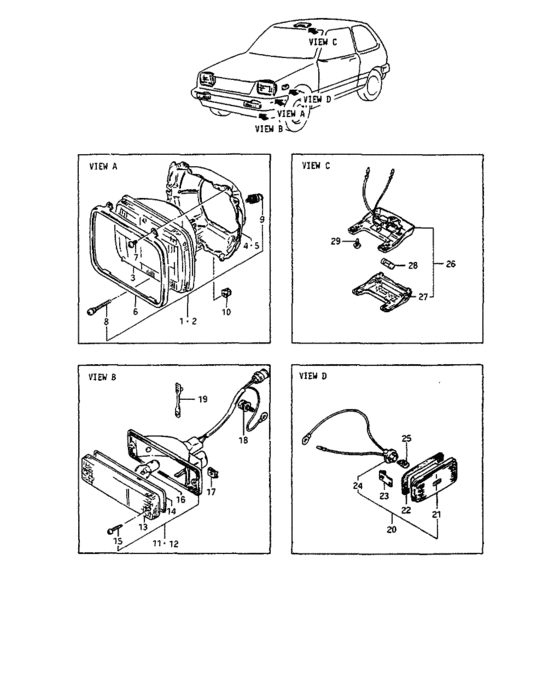

Front lamp (FRONT LAMP) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Canada
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-82020-000
Headlamp assy, rh
GA |
35100-82020-000 |
— | ||
|
1
|
1
35100-82150-000
Headlamp assy, rh
GL |
35100-82150-000 |
— | ||
|
2
|
2
35300-82020-000
Headlamp assy, lh
GA |
35300-82020-000 |
— | ||
|
2
|
2
35300-82150-000
Headlamp assy, lh
GL |
35300-82150-000 |
— | ||
|
3
|
3
35121-82020-000
Unit, headlamp
GA |
35121-82020-000 |
— | ||
| replacement | |||||
|
3
|
3
35121-82021-000
UNIT,LAMP
GA |
35121-82021-000 |
— | ||
|
3
|
3
35121-82150-000
Unit
GL |
35121-82150-000 |
— | ||
|
4
|
4
35141-82020-000
Housing asm,headlamp,r
|
35141-82020-000 |
— | ||
|
5
|
5
35341-82020-000
RING,MOUNTING,L
|
35341-82020-000 |
— | ||
|
6
|
6
35131-82020-000
RING,RETAINER
|
35131-82020-000 |
— | ||
|
7
|
7
35152-82021-000
Screw
|
35152-82021-000 |
— | ||
|
8
|
8
35151-82021-000
Screw
|
35151-82021-000 |
— | ||
|
9
|
9
35154-82020-000
SPRING,EXTENSION
|
35154-82020-000 |
— | ||
|
10
|
10
35158-82000-000
Nut
|
35158-82000-000 |
— | ||
|
11
|
11
35601-82010-000
Lamp assy, combination rh
|
35601-82010-000 |
— | ||
| replacement | |||||
|
11
|
11
35601-86020-000
Lamp assy, fr combination rh
|
35601-86020-000 |
— | ||
|
12
|
12
35602-82010-000
Lamp assy, combination lh
|
35602-82010-000 |
— | ||
|
13
|
13
35612-81000-000 LENS,FR COMB LAMP |
35612-81000-000 |
US $10.94 |
||
|
14
|
14
35613-82020-000
Gasket, lens
|
35613-82020-000 |
— | ||
|
15
|
15
03112-04259-000
Screw tapping
|
03112-04259-000 |
— | ||
| replacement | |||||
|
15
|
15
03112-0425B-000 SCREW |
03112-0425B-000 |
US $0.80 |
||
|
16
|
16
09471-12068-000
BULB(12V32/3CP)
|
09471-12068-000 |
— | ||
|
17
|
17
09148-04019-000 Gsxgf nut lugga |
09148-04019-000 |
US $1.52 |
||
| replacement | |||||
|
17
|
17
09148-04015-000 NUT |
09148-04015-000 |
from US $1.60 |
||
|
18
|
18
09115-06001-000
Bolt, lh
|
09115-06001-000 |
— | ||
| replacement | |||||
|
18
|
18
09115-06005-000 BOLT(6X16) |
09115-06005-000 |
US $1.28 |
||
|
19
|
19
09407-05403-000 CLAMP,L:88 |
09407-05403-000 |
from US $0.91 |
||
|
20
|
20
36510-82000-000
LAMP&RR ASSY,FR SIDE
|
36510-82000-000 |
— | ||
|
21
|
21
36520-82000-000
Unit, lamp
|
36520-82000-000 |
— | ||
|
22
|
22
36413-82000-000
ガスケット
|
36413-82000-000 |
— | ||
|
23
|
23
36521-82000-000
Spring
|
36521-82000-000 |
— | ||
|
24
|
24
36518-82000-000
Socket
|
36518-82000-000 |
— | ||
|
25
|
25
09471-12094-000 BULB(12V2CP) |
09471-12094-000 |
US $28 |
||
|
26
|
26
36210-82000-000 LAMP ASSY,ROOM |
36210-82000-000 |
US $30.54 |
||
|
27
|
27
36212-78001-000 LENS,ROOM LAMP |
36212-78001-000 |
from US $6.21 |
||
|
28
|
28
09471-12073-000 BULB(12V,5W) |
09471-12073-000 |
from US $2.40 |
||
|
29
|
29
03241-05106-000
スクリュ
|
03241-05106-000 |
— | ||
| replacements | |||||
|
29
|
29
03241-0510A-000 SCREW |
03241-0510A-000 |
from US $0.80 |
||
|
29
|
29
03242-0510B-000 SCREW |
03242-0510B-000 |
US $0.76 |
||
