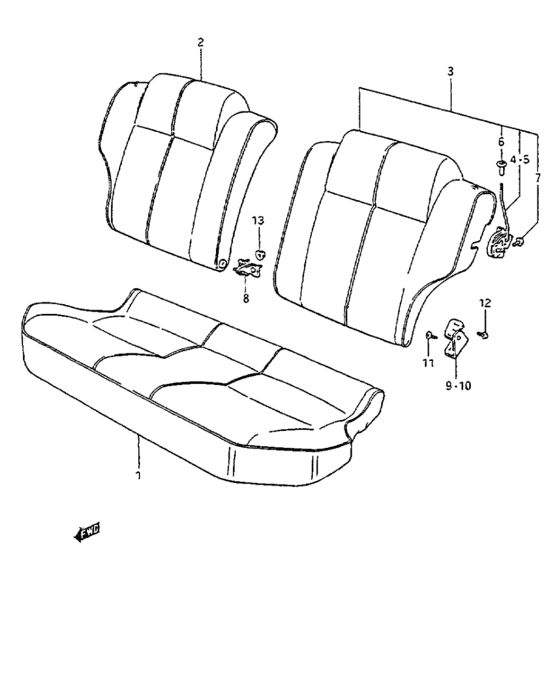

Rear seat (5DR:GL) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Canada
- grade
- GA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
87101-82480-7KK
Cushion assy, seat
|
87101-82480-7KK |
— | ||
|
1
|
1
87101-82480-7KM
Cushion assy, seat
|
87101-82480-7KM |
— | ||
|
2
|
2
87301-82610-7KK
Back assy, seat rh
|
87301-82610-7KK |
— | ||
|
2
|
2
87301-82610-7KM
Back assy, seat rh
|
87301-82610-7KM |
— | ||
|
3
|
3
87701-82610-7KK
Back assy, seat lh
|
87701-82610-7KK |
— | ||
|
3
|
3
87701-82610-7KM
Back assy, seat lh
|
87701-82610-7KM |
— | ||
|
4
|
4
87840-82001-000
Lock assy, seat back rh
|
87840-82001-000 |
— | ||
| replacement | |||||
|
4
|
4
87840-82250-000
LOCK ASSY,RR SEAT BACK,R
|
87840-82250-000 |
— | ||
|
5
|
5
87940-82001-000
Lock assy, seat back lh
|
87940-82001-000 |
— | ||
| replacement | |||||
|
5
|
5
87940-82250-000
LOCK ASSY,RR SEAT BACK,L
|
87940-82250-000 |
— | ||
|
6
|
6
87846-82000-53A
Knob
|
87846-82000-53A |
— | ||
| replacement | |||||
|
6
|
6
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK) |
87846-82000-5ES |
US $1.68 |
||
|
6
|
6
87846-82000-55Y
ノブ(グレー)
|
87846-82000-55Y |
— | ||
| replacement | |||||
|
6
|
6
87846-82000-5ES KNOB, SEAT BACK LOCK (BLACK) |
87846-82000-5ES |
US $1.68 |
||
|
7
|
7
02142-06126-000
Screw, front fender rear
|
02142-06126-000 |
— | ||
| replacements | |||||
|
7
|
7
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
7
|
7
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
8
|
8
87840-82200-000
Hinge, seat back center
|
87840-82200-000 |
— | ||
|
9
|
9
87850-82200-000
HINGE,RR SEAT BACK,R
|
87850-82200-000 |
— | ||
|
10
|
10
87950-82200-000
HINGE,RR SEAT BACK,L
|
87950-82200-000 |
— | ||
|
11
|
11
02142-06127-000 SCREW |
02142-06127-000 |
from US $0.76 |
||
|
12
|
12
02142-06167-000 SCREWScrew |
02142-06167-000 |
from US $0.76 |
||
|
13
|
13
08316-26066-000
Nut 6mm
|
08316-26066-000 |
— | ||
| replacements | |||||
|
13
|
13
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
13
|
13
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
