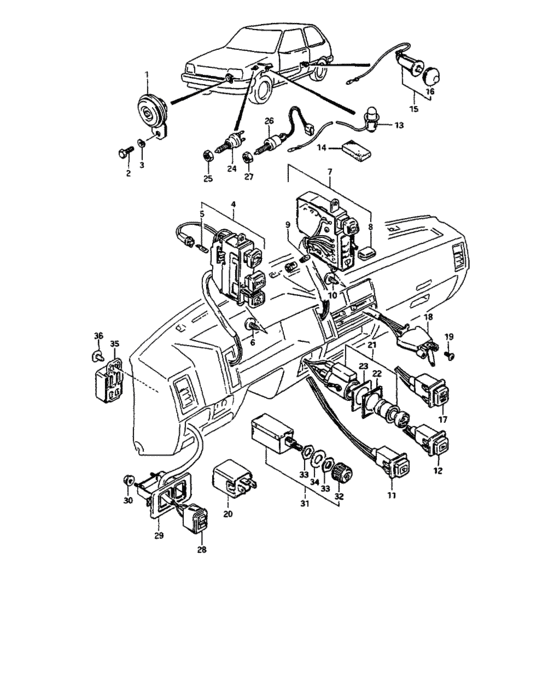

Electrical control (ELECTRICAL CONTROL) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Canada
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38500-82100-000
Horn assy
85 MODEL |
38500-82100-000 |
— | ||
|
1
|
1
38500-82200-000
Horn assy
86 MODEL |
38500-82200-000 |
— | ||
| replacement | |||||
|
1
|
1
38500-60G00-000 HORN ASSY86 MODEL |
38500-60G00-000 |
US $66.40 |
||
|
2
|
2
01107-08123-000 ボルト |
01107-08123-000 |
US $1.23 |
||
| replacement | |||||
|
2
|
2
01500-0812A-000 Bolt |
01500-0812A-000 |
from US $0.77 |
||
|
3
|
3
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
3
|
3
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
3
|
3
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
4
|
4
37210-82013-000
Switch assy,lighting
|
37210-82013-000 |
— | ||
|
5
|
5
37215-82000-000
Bulb
|
37215-82000-000 |
— | ||
|
6
|
6
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
7
|
7
37310-82042-000
Switch, front wiper/washer
GA |
37310-82042-000 |
— | ||
|
7
|
7
37310-82130-000
Switch, front wiper/washer
GL |
37310-82130-000 |
— | ||
|
8
|
8
37313-82000-000
Knob, wiper switch
|
37313-82000-000 |
— | ||
|
9
|
9
37314-82000-000
Bulb
|
37314-82000-000 |
— | ||
|
10
|
10
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
10
|
10
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
|
11
|
11
37370-82000-000
Switch assy, rear wiper
|
37370-82000-000 |
— | ||
|
12
|
12
37380-82000-000
Switch assy, rear washer
|
37380-82000-000 |
— | ||
|
13
|
13
37940-79000-000
スイッチアッシ,パーキングブレーキ
|
37940-79000-000 |
— | ||
| replacement | |||||
|
13
|
13
37940-50A00-000 SWITCH ASSY,PARKING BRAKE |
37940-50A00-000 |
US $7.73 |
||
|
14
|
14
77591-75000-000 PAD |
77591-75000-000 |
US $2.28 |
||
|
15
|
15
37670-82001-000
Switch assy, door
|
37670-82001-000 |
— | ||
| replacement | |||||
|
15
|
15
37670-60A02-000 SWITCH ASSY,DOOR |
37670-60A02-000 |
from US $12.76 |
||
|
16
|
16
37672-82000-000
Boot,door switch
|
37672-82000-000 |
— | ||
|
17
|
17
37860-82001-000
Switch assy, defogger
|
37860-82001-000 |
— | ||
|
18
|
18
37870-82000-000
SWITCH ASSY,HTR FAN MOTOR
|
37870-82000-000 |
— | ||
|
19
|
19
02112-04087-000 SCREW |
02112-04087-000 |
from US $0.80 |
||
|
20
|
20
38610-78304-000
Relay, turn signe1/4 way
|
38610-78304-000 |
— | ||
| replacement | |||||
|
20
|
20
38610-76G00-000 RELAY,TURN SIGNAL&4WAYRelay, turnsignal & 4 way |
38610-76G00-000 |
US $56.80 |
||
|
21
|
21
39400-82812-000
LIGHTER SET,CIGARETTE
|
39400-82812-000 |
— | ||
|
22
|
22
39471-82000-000
Rim, cigarette lighter
|
39471-82000-000 |
— | ||
|
23
|
23
39472-82000-000 WASHER,CIGARETTE LIGHTER |
39472-82000-000 |
US $1.25 |
||
|
24
|
24
37740-66010-000 SWITCH ASSY,BRAKE LAMP |
37740-66010-000 |
US $19.20 |
||
|
25
|
25
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
25
|
25
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
25
|
25
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
26
|
26
37970-82000-000
Switch assy, clutch start
|
37970-82000-000 |
— | ||
| replacement | |||||
|
26
|
26
37970-60B00-000
SWITCH ASSY,CLUTCH START
|
37970-60B00-000 |
— | ||
|
27
|
27
08310-22106-000
Nut
|
08310-22106-000 |
— | ||
| replacements | |||||
|
27
|
27
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
27
|
27
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
28
|
28
37500-82000-000
Switch assy, back door opener
GL |
37500-82000-000 |
— | ||
| replacement | |||||
|
28
|
28
37500-84000-000
Switch assy,back door opner
GL |
37500-84000-000 |
— | ||
|
29
|
29
37505-82000-000
Retainer, opener
GL |
37505-82000-000 |
— | ||
|
30
|
30
08316-16056-000
Nut
GL |
08316-16056-000 |
— | ||
| replacement | |||||
|
30
|
30
08316-1005A-000 NUTGL |
08316-1005A-000 |
from US $0.77 |
||
|
31
|
31
39600-82010-000
Controller assy, illum
|
39600-82010-000 |
— | ||
| replacement | |||||
|
31
|
31
39600-82021-000 CONTROLLER ASSY,ILLUM |
39600-82021-000 |
US $264 |
||
|
32
|
32
39611-82010-000
Knob
|
39611-82010-000 |
— | ||
|
33
|
33
39612-82010-000
ナット
|
39612-82010-000 |
— | ||
|
34
|
34
39613-82010-000
ワッシャ
|
39613-82010-000 |
— | ||
|
35
|
35
38590-82010-000
Buzzer, seat belt warning
|
38590-82010-000 |
— | ||
|
36
|
36
03541-05168-000
Screw
|
03541-05168-000 |
— | ||
| replacement | |||||
|
36
|
36
03541-0516A-000 SCREW |
03541-0516A-000 |
from US $0.68 |
||
