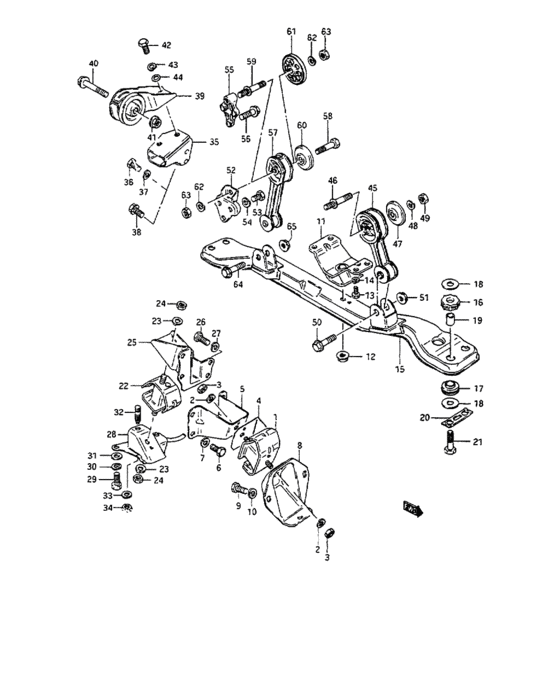

Engine mounting (ENGINE MOUNTING) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Canada
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11610-82020-000
Mounting, engine front
->11610-82210 |
11610-82020-000 |
— | ||
| replacement | |||||
|
1
|
1
11610-82210-000
MOUNTING,ENG FR
->11610-82210 |
11610-82210-000 |
— | ||
|
1
|
1
11610-82210-000
MOUNTING,ENG FR
JS2AA41S F5106961~ |
11610-82210-000 |
— | ||
|
2
|
2
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
2
|
2
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
2
|
2
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
3
|
3
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
3
|
3
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
3
|
3
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
4
|
4
11681-82010-000
INSULATOR,ENG FR MTG HEAT
<-11681-82000 |
11681-82010-000 |
— | ||
|
5
|
5
11641-82010-000
Bracket, engine front mounting
<-11641-82000 |
11641-82010-000 |
— | ||
|
6
|
6
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
7
|
7
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
7
|
7
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
7
|
7
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
8
|
8
11661-82010-000
BRACKET,FR MTG BODY
<-11661-82000 |
11661-82010-000 |
— | ||
|
9
|
9
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
9
|
9
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
10
|
10
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
10
|
10
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
10
|
10
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
11
|
11
11620-82020-000
Mounting, transmission
<-11620-82010 |
11620-82020-000 |
— | ||
| replacement | |||||
|
11
|
11
11620-82610-000
Mounting comp,transmission
<-11620-82010 |
11620-82610-000 |
— | ||
|
12
|
12
09159-10046-000
Nut,m10x1.25x9
|
09159-10046-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-10046-XC0 NUT |
09159-10046-XC0 |
from US $2.77 |
||
|
13
|
13
01107-08203-000
Bolt
|
01107-08203-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0820A-000 Bolt |
01500-0820A-000 |
from US $0.80 |
||
|
14
|
14
08321-31083-000
New Genuine Part
|
08321-31083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
14
|
14
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
11630-82000-000
Member, mission mounting
|
11630-82000-000 |
— | ||
| replacement | |||||
|
15
|
15
11630-82160-000
MEMBER,MISSION MOUNTING
|
11630-82160-000 |
— | ||
|
16
|
16
11684-79001-000
CUSHION,UPPER
|
11684-79001-000 |
— | ||
|
17
|
17
11686-79001-000 CUSHION,MOUNTING MEMBER LOWER |
11686-79001-000 |
US $6.22 |
||
|
18
|
18
11685-79000-000
WASHER,FR BRACKET
|
11685-79000-000 |
— | ||
|
19
|
19
09180-10057-000
Spacer
|
09180-10057-000 |
— | ||
| replacement | |||||
|
19
|
19
09180-10302-000 SPACER(10.2X16X20) |
09180-10302-000 |
US $2.08 |
||
|
20
|
20
11687-82001-000
WASHER,MTG MEMBER LOCK
|
11687-82001-000 |
— | ||
|
21
|
21
09100-10200-000
BOLT(10X40)
|
09100-10200-000 |
— | ||
|
22
|
22
11710-82010-000 MOUNTING,ENG RR |
11710-82010-000 |
from US $28.16 |
||
|
23
|
23
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
23
|
23
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
24
|
24
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
24
|
24
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
24
|
24
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
25
|
25
11740-82001-000
BRACKET,ENG RR MTG
|
11740-82001-000 |
— | ||
|
26
|
26
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
27
|
27
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
27
|
27
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
28
|
28
11760-82600-000
BRACKET,RR MTG BODY
<-11760-82000 |
11760-82600-000 |
— | ||
|
29
|
29
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
29
|
29
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
30
|
30
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
30
|
30
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
30
|
30
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
31
|
31
09160-10085-000
Washer, rear
|
09160-10085-000 |
— | ||
| replacement | |||||
|
31
|
31
09160-10142-000 WASHER(10X20X2.3)Washer, crankcase bolt |
09160-10142-000 |
from US $0.96 |
||
|
32
|
32
09108-10056-000
BOLT,STUD
|
09108-10056-000 |
— | ||
|
33
|
33
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
33
|
33
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
33
|
33
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
34
|
34
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
34
|
34
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
34
|
34
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
35
|
35
11841-82010-000
BRACKET,ENG SIDE MTG
<-11840-82000 |
11841-82010-000 |
— | ||
|
36
|
36
01107-10253-000
ボルト
85 MODEL |
01107-10253-000 |
— | ||
| replacement | |||||
|
36
|
36
01500-1025A-000 Bolt85 MODEL |
01500-1025A-000 |
US $0.91 |
||
|
37
|
37
08321-31103-000
ロックワッシャ
85 MODEL |
08321-31103-000 |
— | ||
| replacements | |||||
|
37
|
37
08321-0110A-000 WASHER,LOCK85 MODEL |
08321-0110A-000 |
from US $0.80 |
||
|
37
|
37
08321-0110B-000 WASHER,LOCKWasher, knuckle end 85 MODEL |
08321-0110B-000 |
from US $0.80 |
||
|
38
|
38
01537-10253-000
ボルト
86 MODEL |
01537-10253-000 |
— | ||
| replacements | |||||
|
38
|
38
01550-1025A-000 BOLTBolt, drive gear 86 MODEL |
01550-1025A-000 |
from US $1.06 |
||
|
38
|
38
01550-1025B-000 BoltBolt, rr swgarm bracket, l 86 MODEL |
01550-1025B-000 |
from US $5.59 |
||
|
39
|
39
11830-82010-000
Bushing, side mounting
<-11830-82000 |
11830-82010-000 |
— | ||
| replacement | |||||
|
39
|
39
11830-82611-000
BUSH,ENG SIDE MTG
<-11830-82000 |
11830-82611-000 |
— | ||
|
40
|
40
01537-10703-000
New Genuine Part
|
01537-10703-000 |
— | ||
| replacement | |||||
|
40
|
40
01550-1070A-000 Bolt |
01550-1070A-000 |
from US $1.60 |
||
|
41
|
41
08316-26103-000
Nut
|
08316-26103-000 |
— | ||
| replacement | |||||
|
41
|
41
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
42
|
42
01107-10253-000
ボルト
|
01107-10253-000 |
— | ||
| replacement | |||||
|
42
|
42
01500-1025A-000 Bolt |
01500-1025A-000 |
US $0.91 |
||
|
43
|
43
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
43
|
43
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
43
|
43
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
44
|
44
08322-11103-000 ワッシャ |
08322-11103-000 |
US $1.07 |
||
| replacements | |||||
|
44
|
44
08322-0110A-000 WASHERWasher, knuckle end |
08322-0110A-000 |
from US $0.80 |
||
|
44
|
44
08322-0110B-000 WASHERWasher, knuckle end |
08322-0110B-000 |
from US $0.76 |
||
|
45
|
45
11810-82000-000
Rod, engine front torque
|
11810-82000-000 |
— | ||
| replacement | |||||
|
45
|
45
11810-82601-000 ROD,ENGINE FR TORQUE |
11810-82601-000 |
US $53.36 |
||
|
46
|
46
09108-10067-000
BOLT,STUD
|
09108-10067-000 |
— | ||
|
47
|
47
11925-82000-000
Plate, rear torque stopper
85 MODEL |
11925-82000-000 |
— | ||
|
47
|
47
11925-82010-000
Plate,front torque stopper
86 MODEL |
11925-82010-000 |
— | ||
|
48
|
48
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
48
|
48
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
48
|
48
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
49
|
49
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
49
|
49
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
49
|
49
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
50
|
50
01537-10503-000
ボルト
|
01537-10503-000 |
— | ||
| replacements | |||||
|
50
|
50
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
50
|
50
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
51
|
51
08316-26103-000
Nut
|
08316-26103-000 |
— | ||
| replacement | |||||
|
51
|
51
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
|
52
|
52
11921-82000-000
Bracket, rear torque rod
85 MODEL |
11921-82000-000 |
— | ||
| replacement | |||||
|
52
|
52
11921-82010-000
Bracket, rear torque rod
85 MODEL |
11921-82010-000 |
— | ||
|
53
|
53
01107-10253-000
ボルト
85 MODEL |
01107-10253-000 |
— | ||
| replacement | |||||
|
53
|
53
01500-1025A-000 Bolt85 MODEL |
01500-1025A-000 |
US $0.91 |
||
|
54
|
54
08321-31103-000
ロックワッシャ
85 MODEL |
08321-31103-000 |
— | ||
| replacements | |||||
|
54
|
54
08321-0110A-000 WASHER,LOCK85 MODEL |
08321-0110A-000 |
from US $0.80 |
||
|
54
|
54
08321-0110B-000 WASHER,LOCKWasher, knuckle end 85 MODEL |
08321-0110B-000 |
from US $0.80 |
||
|
55
|
55
11921-82010-000
Bracket, rear torque rod
86 MODEL |
11921-82010-000 |
— | ||
|
56
|
56
01537-10303-000
ボルト
86 MODEL |
01537-10303-000 |
— | ||
| replacements | |||||
|
56
|
56
01550-1030A-000 BOLT86 MODEL |
01550-1030A-000 |
from US $1.12 |
||
|
56
|
56
01550-1030B-000 BOLTBolt, axle housing rear 86 MODEL |
01550-1030B-000 |
from US $5.07 |
||
|
57
|
57
11910-82000-000
Rod, engine rear torque
|
11910-82000-000 |
— | ||
| replacement | |||||
|
57
|
57
11910-82601-000
ROD,ENG RR TORQUE
|
11910-82601-000 |
— | ||
|
58
|
58
01107-10503-000
ボルト
85 MODEL |
01107-10503-000 |
— | ||
| replacement | |||||
|
58
|
58
01500-1050A-000 Bolt85 MODEL |
01500-1050A-000 |
from US $5.17 |
||
|
59
|
59
09108-10067-000
BOLT,STUD
86 MODEL |
09108-10067-000 |
— | ||
|
60
|
60
11925-82000-000
Plate, rear torque stopper
85 MODEL |
11925-82000-000 |
— | ||
|
61
|
61
11926-82010-000
Plate, rear torque stopper
86 MODEL |
11926-82010-000 |
— | ||
| replacement | |||||
|
61
|
61
11925-82010-000
Plate,front torque stopper
86 MODEL |
11925-82010-000 |
— | ||
|
62
|
62
08321-31103-000
ロックワッシャ
|
08321-31103-000 |
— | ||
| replacements | |||||
|
62
|
62
08321-0110A-000 WASHER,LOCK |
08321-0110A-000 |
from US $0.80 |
||
|
62
|
62
08321-0110B-000 WASHER,LOCKWasher, knuckle end |
08321-0110B-000 |
from US $0.80 |
||
|
63
|
63
08310-12103-000
Nut
|
08310-12103-000 |
— | ||
| replacements | |||||
|
63
|
63
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
63
|
63
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
64
|
64
01537-10503-000
ボルト
|
01537-10503-000 |
— | ||
| replacements | |||||
|
64
|
64
01550-1050A-000 BOLTBolt, exhaust tube |
01550-1050A-000 |
from US $1.28 |
||
|
64
|
64
01550-1050B-000 BOLT |
01550-1050B-000 |
US $1.22 |
||
|
65
|
65
08316-26103-000
Nut
|
08316-26103-000 |
— | ||
| replacement | |||||
|
65
|
65
08316-2010B-000 NUT |
08316-2010B-000 |
from US $0.76 |
||
