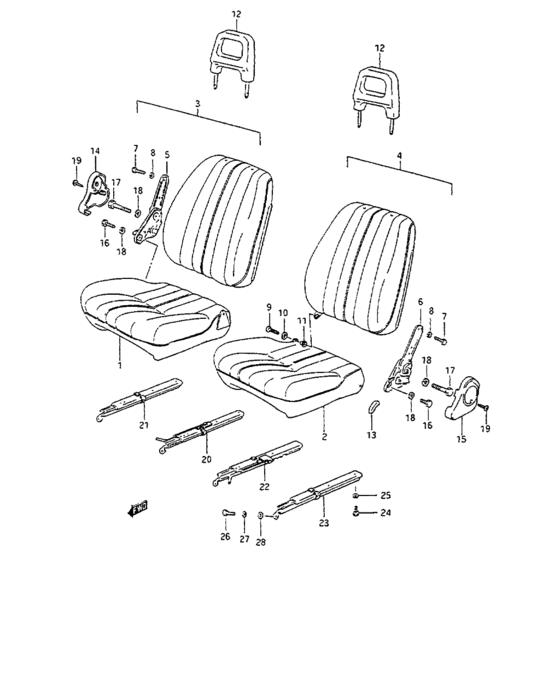

Front seat (5DR:GL) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Canada
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
85101-82481-7KK
Cushion assy, seat rh
|
85101-82481-7KK |
— | ||
|
1
|
1
85101-82481-7KM
Cushion assy, seat rh
|
85101-82481-7KM |
— | ||
|
2
|
2
85102-82481-7KK
Cushion assy, seat lh
|
85102-82481-7KK |
— | ||
|
2
|
2
85102-82481-7KM
Cushion assy, seat lh
|
85102-82481-7KM |
— | ||
|
3
|
3
85301-82480-7KK
Back assy, seat rh
|
85301-82480-7KK |
— | ||
|
3
|
3
85301-82480-7KM
Back assy, seat rh
|
85301-82480-7KM |
— | ||
|
4
|
4
85302-82480-7KK
Back assy, seat lh
|
85302-82480-7KK |
— | ||
|
4
|
4
85302-82480-7KM
Back assy, seat lh
|
85302-82480-7KM |
— | ||
|
5
|
5
85210-82000-000
Control, reclining rh
|
85210-82000-000 |
— | ||
|
6
|
6
85710-82000-000
Control, recling lh
|
85710-82000-000 |
— | ||
|
7
|
7
01107-08167-000
Bolt
|
01107-08167-000 |
— | ||
| replacement | |||||
|
7
|
7
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
8
|
8
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
8
|
8
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
9
|
9
02142-06125-000
Screw
|
02142-06125-000 |
— | ||
| replacements | |||||
|
9
|
9
02142-0612B-000 SCREW |
02142-0612B-000 |
from US $0.76 |
||
|
9
|
9
02142-0612A-000 SCREW |
02142-0612A-000 |
from US $0.80 |
||
|
10
|
10
09160-06039-000 Washer |
09160-06039-000 |
US $1.12 |
||
| replacement | |||||
|
10
|
10
09160-06109-000 WASHER(6.5X18X1.6) |
09160-06109-000 |
from US $0.80 |
||
|
11
|
11
85319-82000-000 BUSH,FR SEAT BACK FIXING |
85319-82000-000 |
US $1.92 |
||
|
12
|
12
86401-82470-53T
Head restraint assy
|
86401-82470-53T |
— | ||
|
12
|
12
86401-82470-56G
Head restraint assy
|
86401-82470-56G |
— | ||
|
13
|
13
85211-82000-53A
Knob, reclining front
|
85211-82000-53A |
— | ||
| replacement | |||||
|
13
|
13
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
13
|
13
85211-82000-55Y
Knob, reclining front
|
85211-82000-55Y |
— | ||
| replacement | |||||
|
13
|
13
85211-82000-T01 KNOB,RECL |
85211-82000-T01 |
US $4.05 |
||
|
14
|
14
85221-82040-53A
Cover, reclining rh
|
85221-82040-53A |
— | ||
| replacement | |||||
|
14
|
14
85221-82040-281
Cover, reclining rh
|
85221-82040-281 |
— | ||
|
14
|
14
85221-82040-55Y
Cover, reclining rh
|
85221-82040-55Y |
— | ||
|
15
|
15
85721-82040-53A
Cover, reclining lh
|
85721-82040-53A |
— | ||
| replacement | |||||
|
15
|
15
85721-82040-281
Cover, reclining lh
|
85721-82040-281 |
— | ||
|
15
|
15
85721-82040-55Y
Cover, reclining lh
|
85721-82040-55Y |
— | ||
|
16
|
16
01107-10168-000
Bolt
|
01107-10168-000 |
— | ||
| replacement | |||||
|
16
|
16
01500-10167-000 Bolt |
01500-10167-000 |
from US $5.24 |
||
|
17
|
17
01107-10408-000
Bolt
|
01107-10408-000 |
— | ||
| replacement | |||||
|
17
|
17
01500-10407-000 Bolt |
01500-10407-000 |
from US $0.91 |
||
|
18
|
18
08321-21107-000 Lock washer |
08321-21107-000 |
US $2.54 |
||
| replacement | |||||
|
18
|
18
08321-01107-000 WASHER,LOCKLock washer |
08321-01107-000 |
from US $0.76 |
||
|
19
|
19
03241-05125-000
Screw
|
03241-05125-000 |
— | ||
| replacement | |||||
|
19
|
19
03241-0512A-000 SCREW |
03241-0512A-000 |
from US $0.68 |
||
|
20
|
20
86610-82011-000
Adjuster, front inside
|
86610-82011-000 |
— | ||
|
21
|
21
86630-82012-000
Adjuster, front outside
|
86630-82012-000 |
— | ||
|
22
|
22
86810-82011-000
Adjuster, front inside
|
86810-82011-000 |
— | ||
|
23
|
23
86830-82012-000
Adjuster, front outside
|
86830-82012-000 |
— | ||
|
24
|
24
01107-08166-000
Bolt m8x1.25x16
|
01107-08166-000 |
— | ||
| replacement | |||||
|
24
|
24
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
25
|
25
08321-21086-000
Wsherlck8.2x15.2x1.6
|
08321-21086-000 |
— | ||
| replacements | |||||
|
25
|
25
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
25
|
25
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
26
|
26
01107-08165-000
Bolt 6x16
|
01107-08165-000 |
— | ||
| replacement | |||||
|
26
|
26
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.80 |
||
|
27
|
27
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
27
|
27
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
27
|
27
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
28
|
28
08322-11084-000
Washer
|
08322-11084-000 |
— | ||
| replacements | |||||
|
28
|
28
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.80 |
||
|
28
|
28
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.80 |
||
