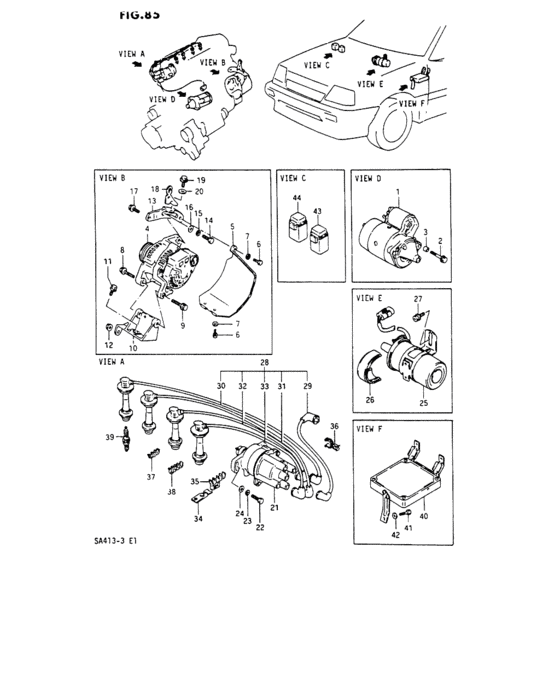

Engine electrical (TWIN CAM) Diagram Suzuki FORSA
- Year
- -
- Sales region
- Africa
- transmission
- AT
- grade
- GL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-86130-000
Motor assy, starting
<-31100-82230 |
31100-86130-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-86033-REM
Starting motor
<-31100-82230 |
31100-86033-REM |
— | ||
|
1
|
1
31100-86033-000 MOTOR ASSY,STARTING<-31100-82230 |
31100-86033-000 |
US $524.48 |
||
|
1
|
1
31100-82641-000
Motor assy, starting
, Switzerland, Belgium, 2, 5, 6, Austria,,Spain, Ireland |
31100-82641-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-86033-REM
Starting motor
, Switzerland, Belgium, 2, 5, 6, Austria,,Spain, Ireland |
31100-86033-REM |
— | ||
|
1
|
1
31100-86033-000 MOTOR ASSY,STARTING, Switzerland, Belgium, 2, 5, 6, Austria,,Spain, Ireland |
31100-86033-000 |
US $524.48 |
||
|
1
|
1
31100-86030-000
Motor assy, starting
Finland, Norway, Sweden |
31100-86030-000 |
— | ||
| replacements | |||||
|
1
|
1
31100-86033-REM
Starting motor
Finland, Norway, Sweden |
31100-86033-REM |
— | ||
|
1
|
1
31100-86033-000 MOTOR ASSY,STARTINGFinland, Norway, Sweden |
31100-86033-000 |
US $524.48 |
||
|
2
|
2
01517-08403-000
ボルト
|
01517-08403-000 |
— | ||
| replacement | |||||
|
2
|
2
01550-0840B-000 Bolt |
01550-0840B-000 |
from US $1.12 |
||
|
3
|
3
04211-11129-000 PIN |
04211-11129-000 |
from US $0.95 |
||
|
4
|
4
31400-86521-000
Generator assy
<-31400-86520 |
31400-86521-000 |
— | ||
| replacements | |||||
|
4
|
4
31400-60A13-000
GENERATOR ASSY
<-31400-86520 |
31400-60A13-000 |
— | ||
|
4
|
4
31400-60A14-000 Generator Assy<-31400-86520 |
31400-60A14-000 |
US $693.44 |
||
|
4
|
4
31400-86510-000
Generator
|
31400-86510-000 |
— | ||
| replacements | |||||
|
4
|
4
31400-71C50-REM
New Genuine Part
|
31400-71C50-REM |
— | ||
|
4
|
4
31400-71C51-000
GENERATOR ASSY
|
31400-71C51-000 |
— | ||
|
5
|
5
31614-82001-000
Cover, generator
|
31614-82001-000 |
— | ||
| replacement | |||||
|
5
|
5
31614-82010-000 COVER,GENERATOR |
31614-82010-000 |
US $22.80 |
||
|
6
|
6
01107-06123-000
Bolt 6x1x16
|
01107-06123-000 |
— | ||
| replacements | |||||
|
6
|
6
01500-0612A-000 BOLT |
01500-0612A-000 |
from US $0.76 |
||
|
6
|
6
01500-06123-000
Bolt, front
|
01500-06123-000 |
— | ||
|
7
|
7
08322-11063-000 E ring |
08322-11063-000 |
US $1.07 |
||
| replacement | |||||
|
7
|
7
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
8
|
8
01517-08353-000
Bolt
|
01517-08353-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0835B-000 BOLT |
01550-0835B-000 |
from US $1.12 |
||
|
8
|
8
01550-0835A-000 BOLT |
01550-0835A-000 |
from US $1.06 |
||
|
9
|
9
01517-08303-000
ボルト
|
01517-08303-000 |
— | ||
| replacements | |||||
|
9
|
9
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
|
9
|
9
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
10
|
10
17911-86500-000
BRACKET,GENERATOR
|
17911-86500-000 |
— | ||
|
11
|
11
01517-08253-000
ボルト
|
01517-08253-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0825A-000 BOLT |
01550-0825A-000 |
from US $1.06 |
||
|
11
|
11
01550-0825B-000 BOLT |
01550-0825B-000 |
from US $0.96 |
||
|
12
|
12
08316-16083-000 NutNut |
08316-16083-000 |
US $3.06 |
||
| replacement | |||||
|
12
|
12
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
|
13
|
13
17921-86500-000
Arm, generator adjusting
|
17921-86500-000 |
— | ||
|
14
|
14
01107-08253-000 Bolt m8x1.25x25 |
01107-08253-000 |
US $1.26 |
||
| replacement | |||||
|
14
|
14
01500-0825A-000 Bolt |
01500-0825A-000 |
from US $0.91 |
||
|
15
|
15
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
15
|
15
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
15
|
15
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
16
|
16
09160-08030-000
Washer
|
09160-08030-000 |
— | ||
| replacement | |||||
|
16
|
16
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
17
|
17
01517-08203-000
ボルト
|
01517-08203-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
17
|
17
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
18
|
18
17926-86500-000
Reinf, adjusting arm
|
17926-86500-000 |
— | ||
|
19
|
19
01517-08163-000
Bolt 8 x 16
|
01517-08163-000 |
— | ||
| replacements | |||||
|
19
|
19
01550-0816B-000 BOLT |
01550-0816B-000 |
from US $0.91 |
||
|
19
|
19
01550-0816A-000 BOLTBolt, rear |
01550-0816A-000 |
from US $0.91 |
||
|
20
|
20
09160-08080-000 Washer 8.2 x 22 |
09160-08080-000 |
US $2.12 |
||
| replacement | |||||
|
20
|
20
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
21
|
21
33100-86510-000
Distributor assy
|
33100-86510-000 |
— | ||
|
21
|
21
33100-86550-000
Distributor assy
Sweden(N/CATALYZER) |
33100-86550-000 |
— | ||
|
22
|
22
09100-08226-000
Vis
|
09100-08226-000 |
— | ||
| replacement | |||||
|
22
|
22
01500-0830B-000 Bolt |
01500-0830B-000 |
from US $0.96 |
||
|
23
|
23
08321-21083-000
Washr,lk8.2x15.
|
08321-21083-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.80 |
||
|
24
|
24
09160-08080-000 Washer 8.2 x 22 |
09160-08080-000 |
US $2.12 |
||
| replacement | |||||
|
24
|
24
09160-08128-000 WASHER(8.5X22X3.2) |
09160-08128-000 |
from US $3.83 |
||
|
25
|
25
33410-86010-000
Coil assy, ignition
|
33410-86010-000 |
— | ||
| replacement | |||||
|
25
|
25
33410-72CV0-000
COIL ASSY,IGNITION
|
33410-72CV0-000 |
— | ||
|
26
|
26
33471-82000-000
CAP,IGNITION COIL
|
33471-82000-000 |
— | ||
|
27
|
27
01517-06103-000
ボルト
|
01517-06103-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
27
|
27
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
28
|
28
33700-86510-000
Cord set, high tension
|
33700-86510-000 |
— | ||
| replacements | |||||
|
28
|
28
33705-86XV0-000
CORD SET,HIGH TENSION
|
33705-86XV0-000 |
— | ||
|
28
|
28
33710-60E10-000
CORD,HIGH TENSION
|
33710-60E10-000 |
— | ||
|
29
|
29
33710-86510-000
Cord, high tension no. 1
|
33710-86510-000 |
— | ||
| replacement | |||||
|
29
|
29
33710-60E10-000
CORD,HIGH TENSION
|
33710-60E10-000 |
— | ||
|
30
|
30
33730-86510-000
コード,ハイテンション,NO.2
|
33730-86510-000 |
— | ||
| replacement | |||||
|
30
|
30
33705-86XV0-000
CORD SET,HIGH TENSION
|
33705-86XV0-000 |
— | ||
|
31
|
31
33740-86510-000
コード,ハイテンション,NO.3
|
33740-86510-000 |
— | ||
|
32
|
32
33750-86510-000
Cord, high tension no. 4
|
33750-86510-000 |
— | ||
| replacement | |||||
|
32
|
32
33750-64B10-000
Cord comp,ht,no.4
|
33750-64B10-000 |
— | ||
|
33
|
33
33760-86510-000
コード,ハイテンション,NO.5
|
33760-86510-000 |
— | ||
|
34
|
34
33883-86510-000
Clamp,ht cord,no.1
|
33883-86510-000 |
— | ||
|
35
|
35
33884-86510-000 CLAMP |
33884-86510-000 |
US $2.08 |
||
|
36
|
36
33885-86510-000
Clamp, cord no.5
|
33885-86510-000 |
— | ||
|
37
|
37
09408-00034-000
クリップ
|
09408-00034-000 |
— | ||
| replacement | |||||
|
37
|
37
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
38
|
38
09408-00035-000 CLIPClamp |
09408-00035-000 |
US $17.70 |
||
|
39
|
39
09482-00118-000 PLUG,SPARK(BP6ES) |
09482-00118-000 |
from US $4.59 |
||
|
39
|
39
09482-00299-000 PLUG,SPARK(BPR6ES)Plug, spark (bpr6es) , Finland, Norway, Sweden, Switzerland, Belgium, 2,,5, Hong Kong, Austria, Spain, Ireland |
09482-00299-000 |
from US $5.37 |
||
|
40
|
40
33920-86510-000
Computor assy, epi
|
33920-86510-000 |
— | ||
|
41
|
41
09128-06005-000
Screw
|
09128-06005-000 |
— | ||
| replacement | |||||
|
41
|
41
02162-0616B-000 SCREWBolt, adjust |
02162-0616B-000 |
from US $0.80 |
||
|
42
|
42
08322-21067-000
Washer
|
08322-21067-000 |
— | ||
| replacement | |||||
|
42
|
42
08322-01067-000 WASHER |
08322-01067-000 |
from US $0.76 |
||
|
43
|
43
31850-86510-000 RELAY,MAIN |
31850-86510-000 |
US $59.62 |
||
|
44
|
44
31860-86510-000 RELAY,FUEL |
31860-86510-000 |
US $52.99 |
||
